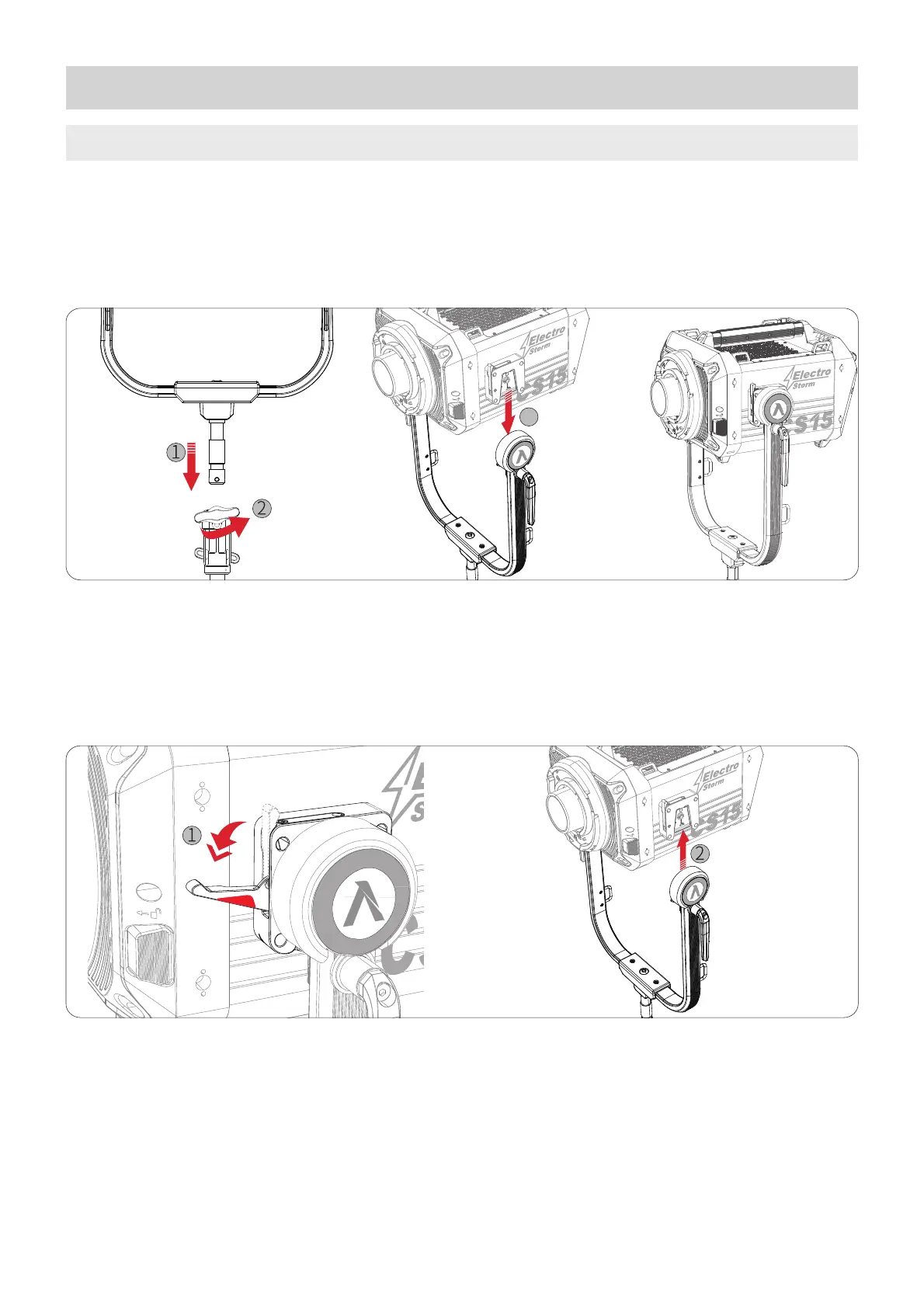

1. Installation and Removal of $4 Yoke
΍ Installation of$4Yoke
Insert the $4Yoke's Junior Pin into a rigid Junior Receiver and lock in place. Align the lamp
head with the quick release plates on both sides and install until locked.
Ύ Disassembly of U-Shaped Yoke
While holding the Carrying Handle of the lamp, turn the :PLF3FMFBTF-FWFSon both sides of the
yoke until they unlock. Lift the lamp head upwards to remove it from the yoke.
 The Quick Release Handles will display red on the sides if the lamp is not completely seated and locked. Please
re-align and insert the lamp again until the :PLF3FMFBTF-FWFS show no red and a "click" noise of the plate
locking has been heard.
 It is recommended to install and disassemble the lamp and yoke while the yoke is sturdy and upright.


