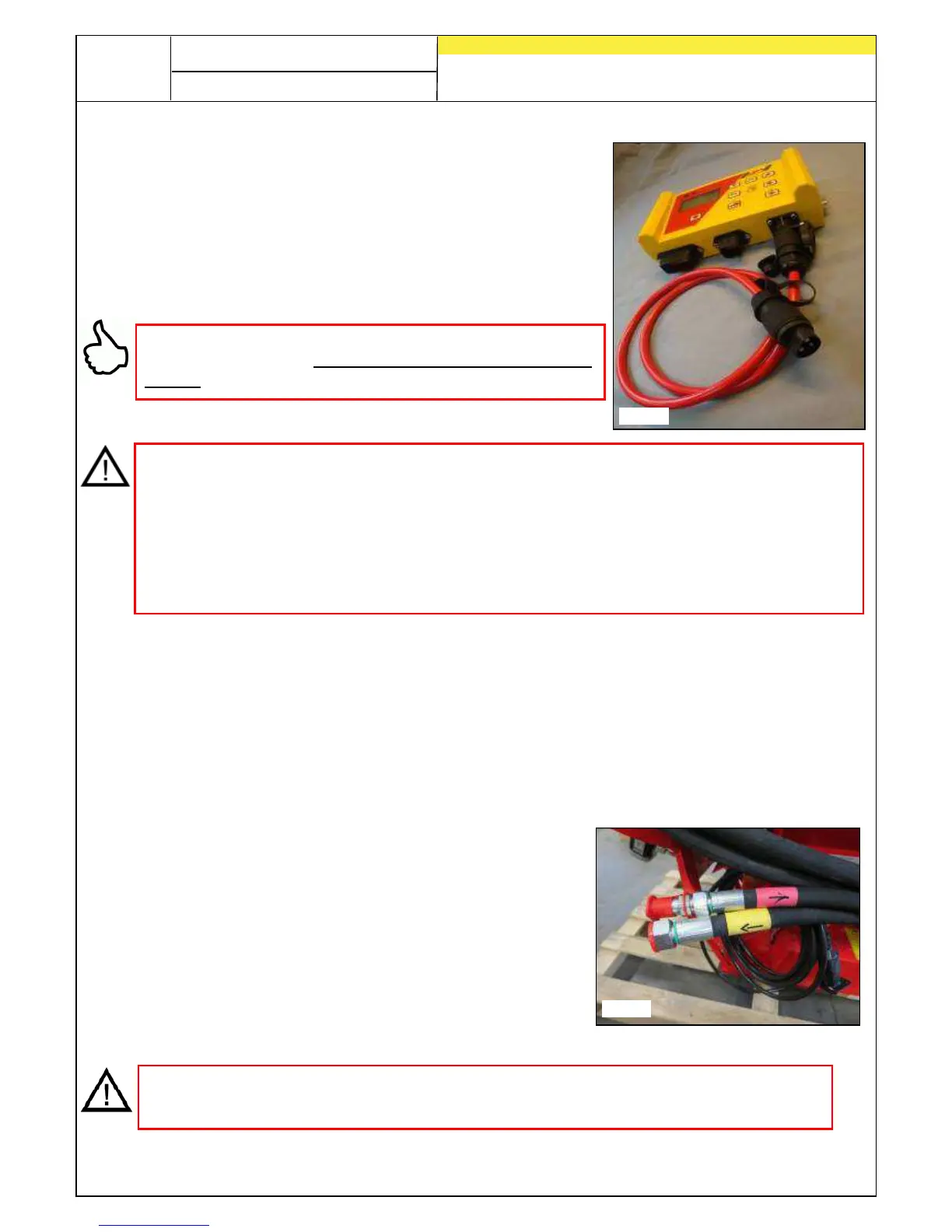

5.5 Electrical connections
The standard supplied cable can be directly connected to
the 3-pin standard socket of the tractor in the cab. The
other end is connected to the control box.
The fuse (30 A) is located on the right side of the control
box.
TIP: if your tractor does not have a standard socket, it can
be retrofitted with the Tractor cable set (Item no. 00410-
2-022) (accessories).
CAUTION: The 12 volt power supply must NOT be connected to the socket for the
cigarette lighter!
After using the implement, the control box should be disconnected again (for various
safety-related reasons).
If your battery is charged by a charger that is in "Start" operating mode, there can be
voltage peaks! These can cause damage to the electrical system of the control box if it is
also connected when the battery is being charged!
6 Hydraulic blower fan drive
6.1 Connecting the blower fan
For the PS 800 M1, the hydraulic blower fan is driven directly by the tractor hydraulic
system.
Two hoses are intended for coupling to the tractor:
- The return line (marked in yellow, BG4) must flow
back into the tractor oil tank unpressurised
(without reduction)!!!
- The pressure line (marked in red, BG3) can be
simply connected to the tractor control unit.
- When connecting the hydraulic hoses to the
tractor hydraulic system, make sure that the
hydraulic system on the tractor and implement
side is unpressurised!
CAUTION: Before you start up the blower fan, completely close the flow control valve!
This prevents the blower fan from over-revving unintentionally!
Fig.: 9
