APV PS 800 M1 User Manual

14
Quality for Professionals

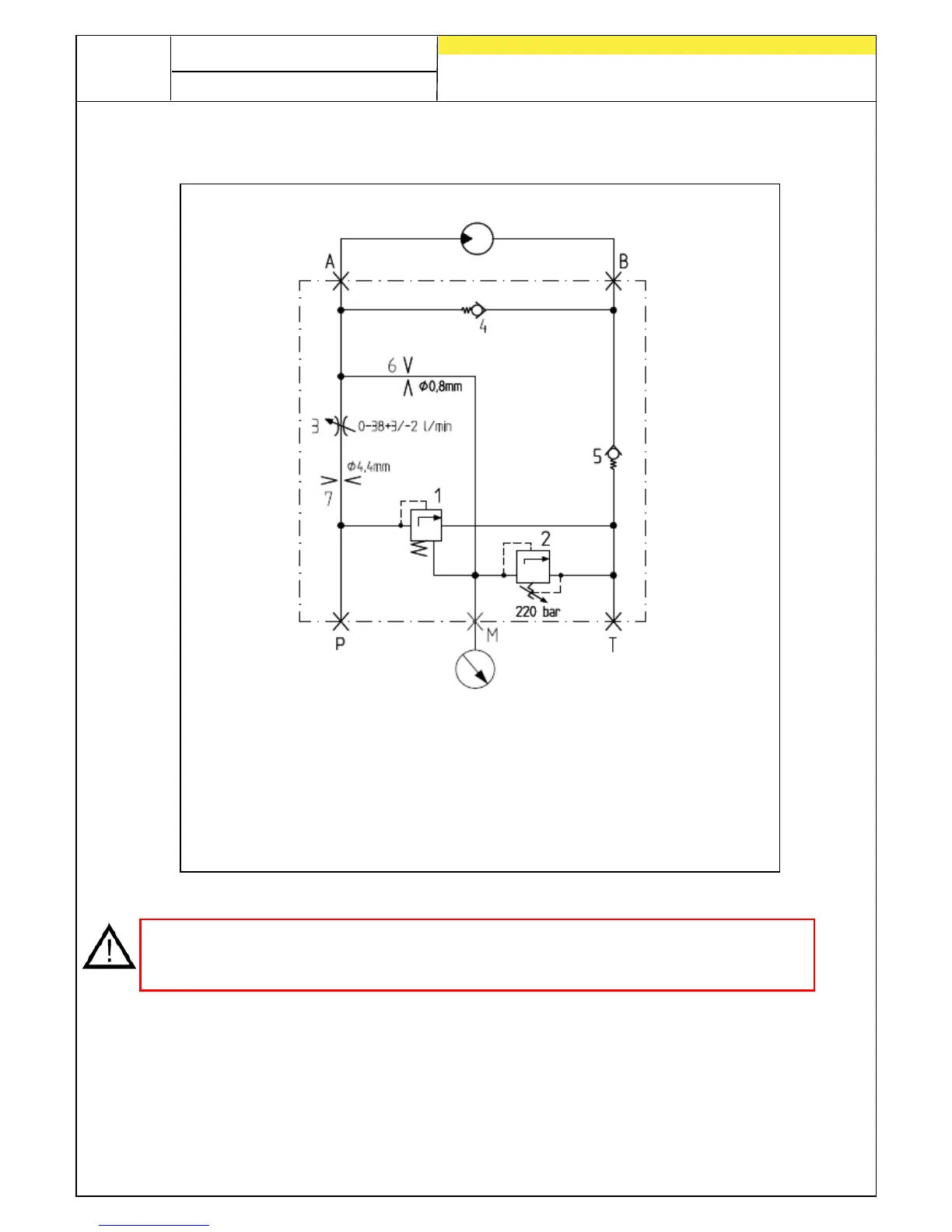

6.4 Scheme (HG)
CAUTION: When changing the motor, it must be ensured that
connection A from the control block is connected to connection B of the motor and
connection A from the motor to connection B on the block.
Fig.: 14
A = max.
Hose length 1 m
B = max.
Hose length 1 m
P = marked in
red
BG3
coupling
connector
T = marked in yellow
BG4
coupling connector
(or coupling sleeve)
Engine
B
Engine
A
max = 80 l/min
pmax = 220 bar
A,B = G ½" (bolted connection XGE 15 LR-ED)
P = G ½" (bolted connection XGE 18 LR-ED)
T = G ¾" (bolted connection XGE 22 LR-ED)
