APV PS 800 M1 User Manual

9
Quality for Professionals
5.4 Attachment of the control box
Fasten the standard supplied bracket with two bolts in the tractor cab.
12-pin plug 3-pin plug
6-pin plug 30 A fuse
CAUTION: If possible, do not roll up the cable!

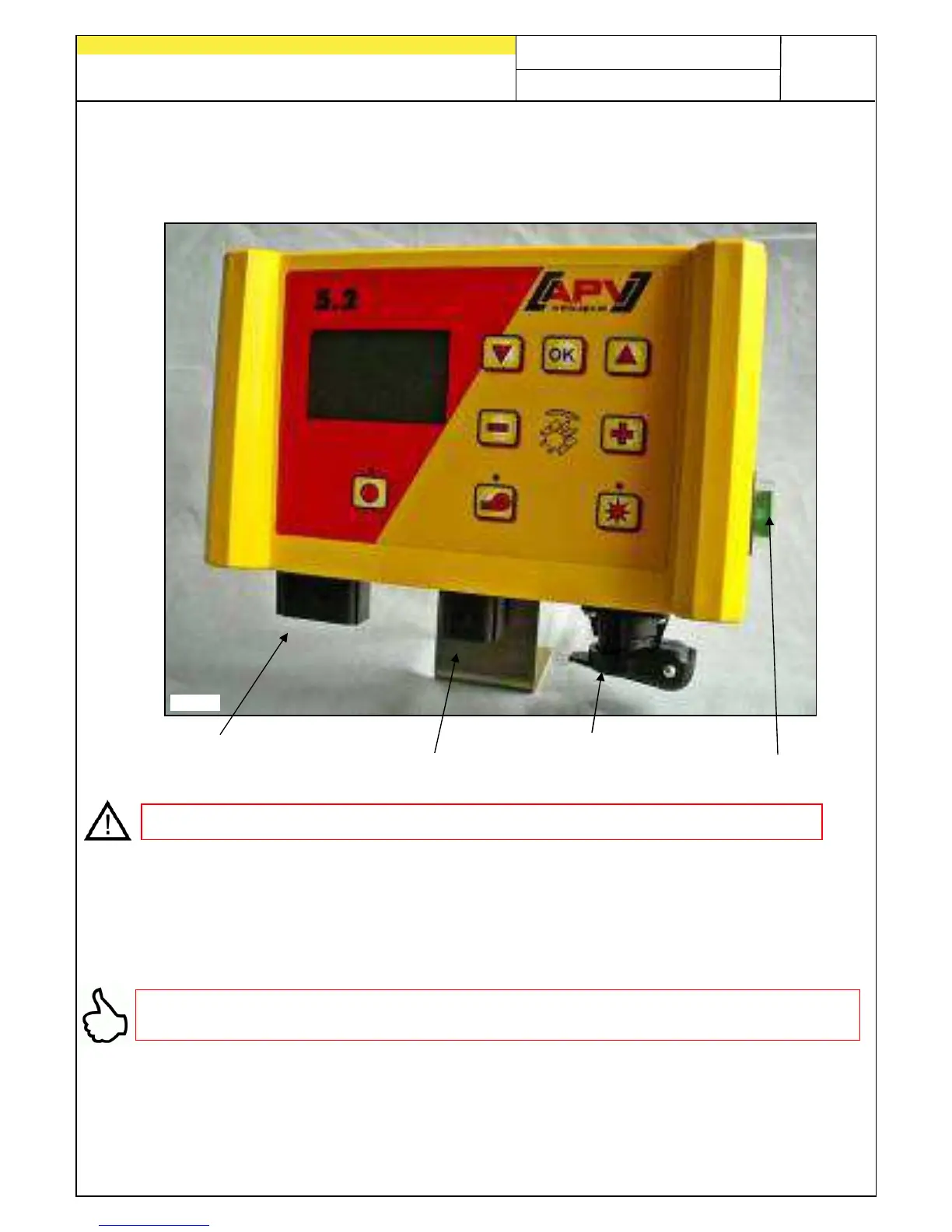

On the bottom side of the control box, there is a 3-pin plug (= connection to the steady
plus on the tractor), a 6-pin plug (= connection of the seed drill with the control box) and a
12-pin plug for the sensors (e.g.: radar sensor or cable for 7-pin standard socket, etc.).
Upon customer request, these are available as accessories for the PS 800 M1 seed drill!
A 30 A fuse is located on the right side of the control box.
TIP: pay attention to the angle at which you look at the control box, to be able to read the
display optimally. If necessary, bend the bracket slightly to adjust the angle as required.
