Make sure that the electric connectors do not have contact to metal parts or other
electronic devices inside the PC case, otherwise malfunctions or destruction of the
QUADRO unit or other devices may occur!
5.
5.5.
5. Electrical connections
Electrical connectionsElectrical connections
Electrical connections
5.1.
5.1.5.1.

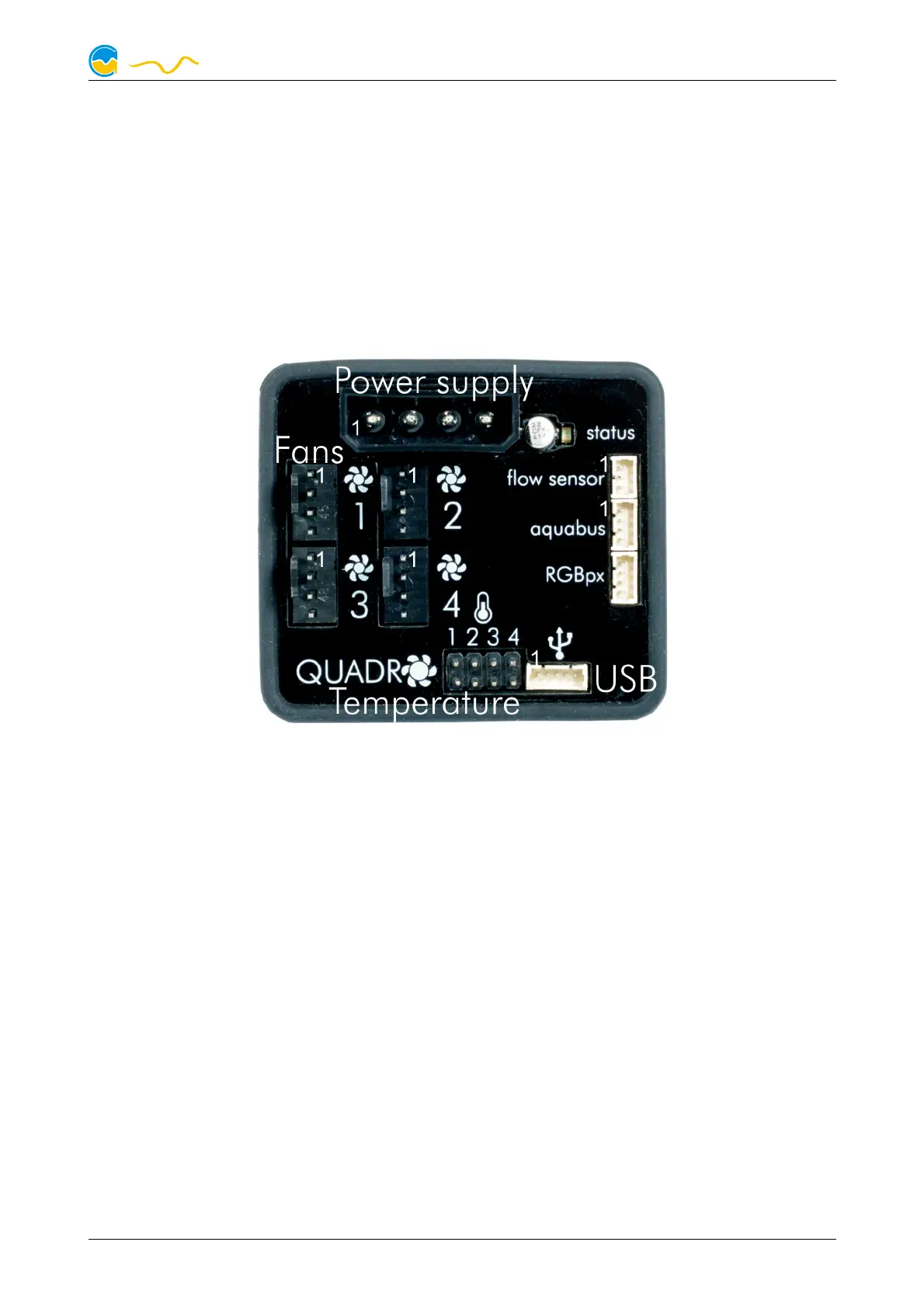

5.1. QUADRO connector overview
QUADRO connector overviewQUADRO connector overview
QUADRO connector overview
ATTENTION: Completely turn off your power supply or disconnect the mains pow-
er cord from the wall outlet before connecting or disconnecting any cables to/from
the device!
5.2.
5.2.5.2.
5.2. Connector “Power supply”
Connector “Power supply”Connector “Power supply”
Connector “Power supply”
Please connect a HDD power plug of your PSU to this connector. Do not use ex-
cessive force but double check the polarity of the plug if you are having trouble to
connect.
Pin assignment: Pin 1 +12 V
Pin 2 GND
Pin 3 GND
Pin 4 +5 V
5.3.
5.3.5.3.
5.3. Connector “Fan 1/2/3/4”
Connector “Fan 1/2/3/4”Connector “Fan 1/2/3/4”
Connector “Fan 1/2/3/4”
PWM regulated fan outputs with speed signal processing.
Pin assignment: Pin 1: GND
Pin 2: 12 V / max. 2 A
Pin 3: Speed signal
Pin 4: PWM signal
