Simpool pH model INSTRUCTION AND MAINTENANCE MANUAL
Programmable digital peristaltic pump ENGLISH
ADSP7000407 rev. 1.2 27/03/2015 48/313
2.5 HYDRAULIC CONNECTIONS
Make sure the suction tube is placed in the product's container and then connected to the pump's intake
fitting (marked with the ▲ symbol on the cover) and tightened with the correct ring nut.
Make sure the delivery tube is inserted in the pump's delivery fitting (marked with the ▼ symbol on the
cover) and tightened with the correct ring nut. It must then be connected to the infeed fitting of the
injection probe-holder.

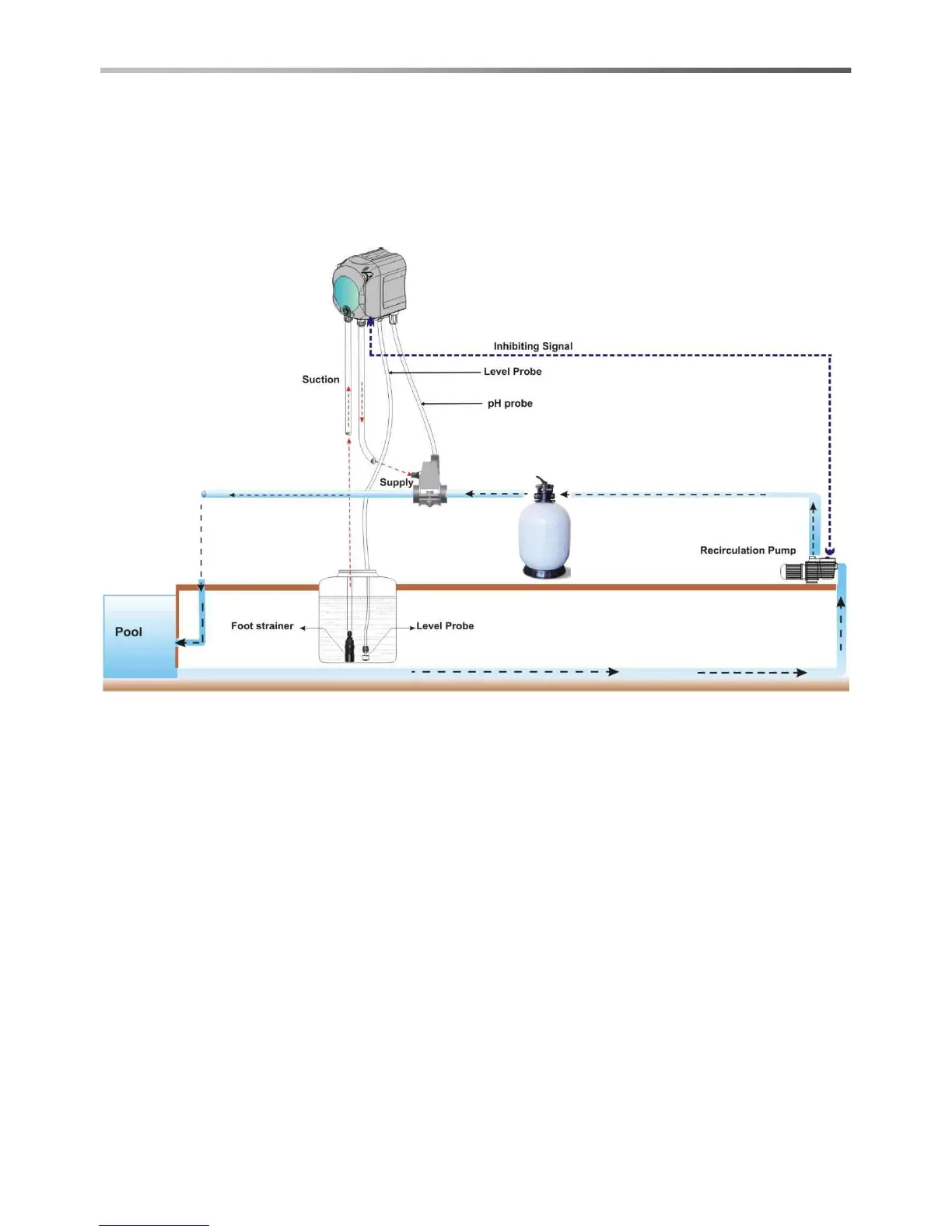

Fig. 8 Installation
