TECHNOPOOL
Dosing systems for swimming pools ENGLISH
ADSP7000570 rev. 2.0 06/08/2021 14/37

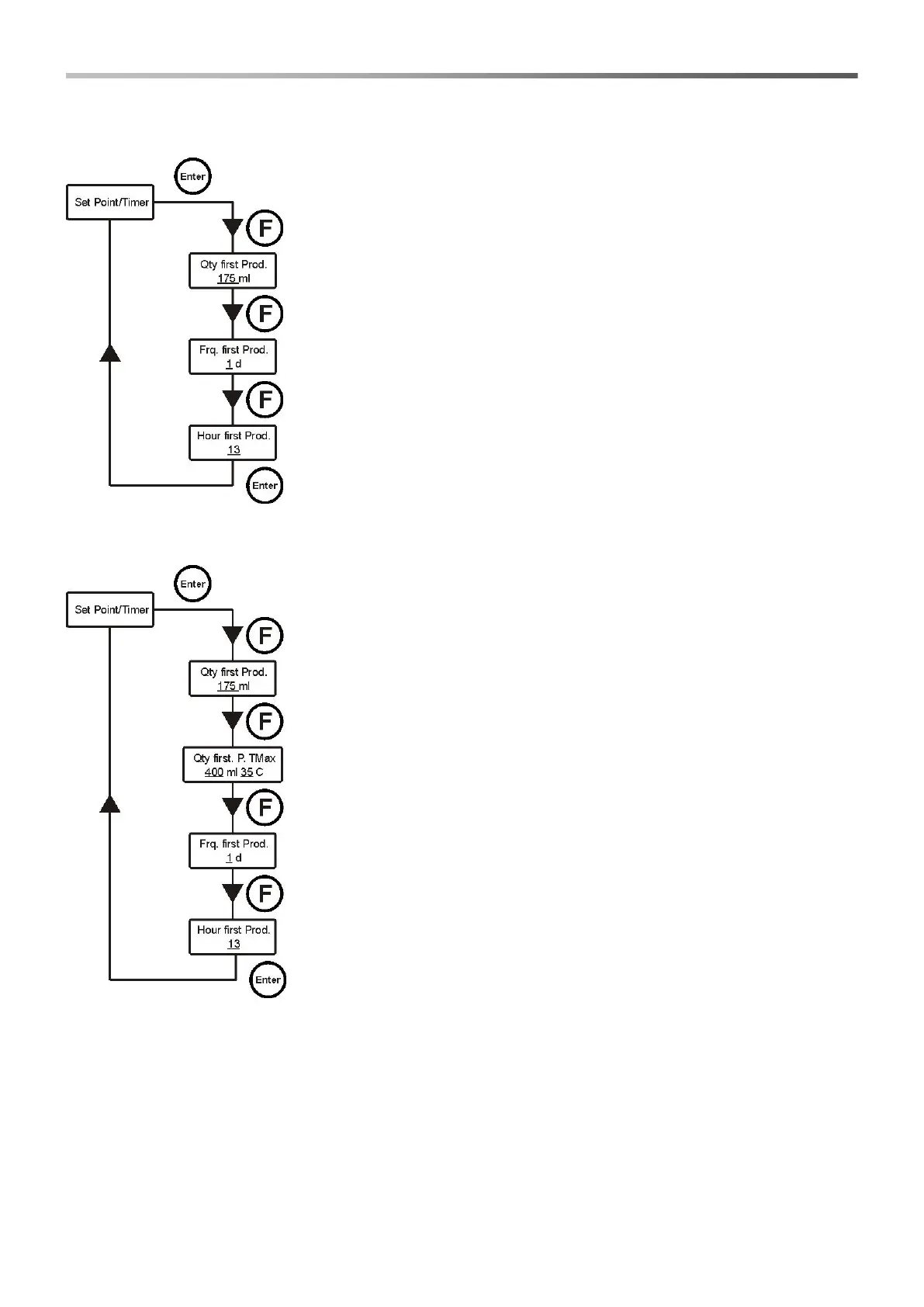

Qty first Prod.
Indicates the quantity to be dosed in ml or litres.
Press keys ▼▲ to set the desired value and Enter to confirm.
Values that can be set are 0÷999 ml or 1.0÷9.9 litres.
Frq. first Prod.
Indicates the activation frequency of the pump dosing, which can be set in hours
or days.
Values that can be set are 1÷23 hours or 1÷7 days (d).
Hour first Prod. (only if the frequency has been programmed in days)
Indicates the activation hour. If it is left in Auto, the activation occurs
immediately after the programming.
Values that can be set are 0÷23 hours or Auto.
Example:
First Prod. Qty = 400 ml
First Prod. Freq. = 2 d
First Prod. Hour = 13
The system activates P1 pump to dose 400 ml of product every two days at
h13.00.
Manual temperature or with PT100:
Qty first Prod.
Indicates the quantity to be dosed in ml or litres.
Press keys ▼▲ to set the desired value and Enter to confirm.
Values that can be set are 0÷999 ml or 1.0÷9.9 litres.
Qty first P. Tmax
Indicates the quantity to be dosed (0÷999 ml or
1.0÷9.9 litres) to the programmed maximum temperature (23÷36°C)
Press keys ▼▲ to set the desired value and Enter to confirm.
Values that can be set are 0÷999 ml or 1.0÷9.9 litres.
Frq. first Prod.
Indicates the activation frequency of the pump dosing, which can be set in hours
or days.
Values that can be set are 1÷23 hours or 1÷7 days (d).
Hour first Prod. (only if the frequency has been programmed in days)
Indicates the activation hour. If it is left in Auto, the activation occurs
immediately after the programming.
Values that can be set are 0÷23 hours or Auto.
The quantity of product to be dosed is proportional to the temperature reached during the latest dosing, according
to the diagram below:
