3) Let the electrode cable pass through the cut on the nut (ref. 11)
4) Proceed with electrode calibration, (see chapter 4.10-4.11)
5) Carefully insert the electrode in the probe holder, until the o-ring reach its seat between the cap and the probe
holder. Then screw the nut with care (ref. 11).

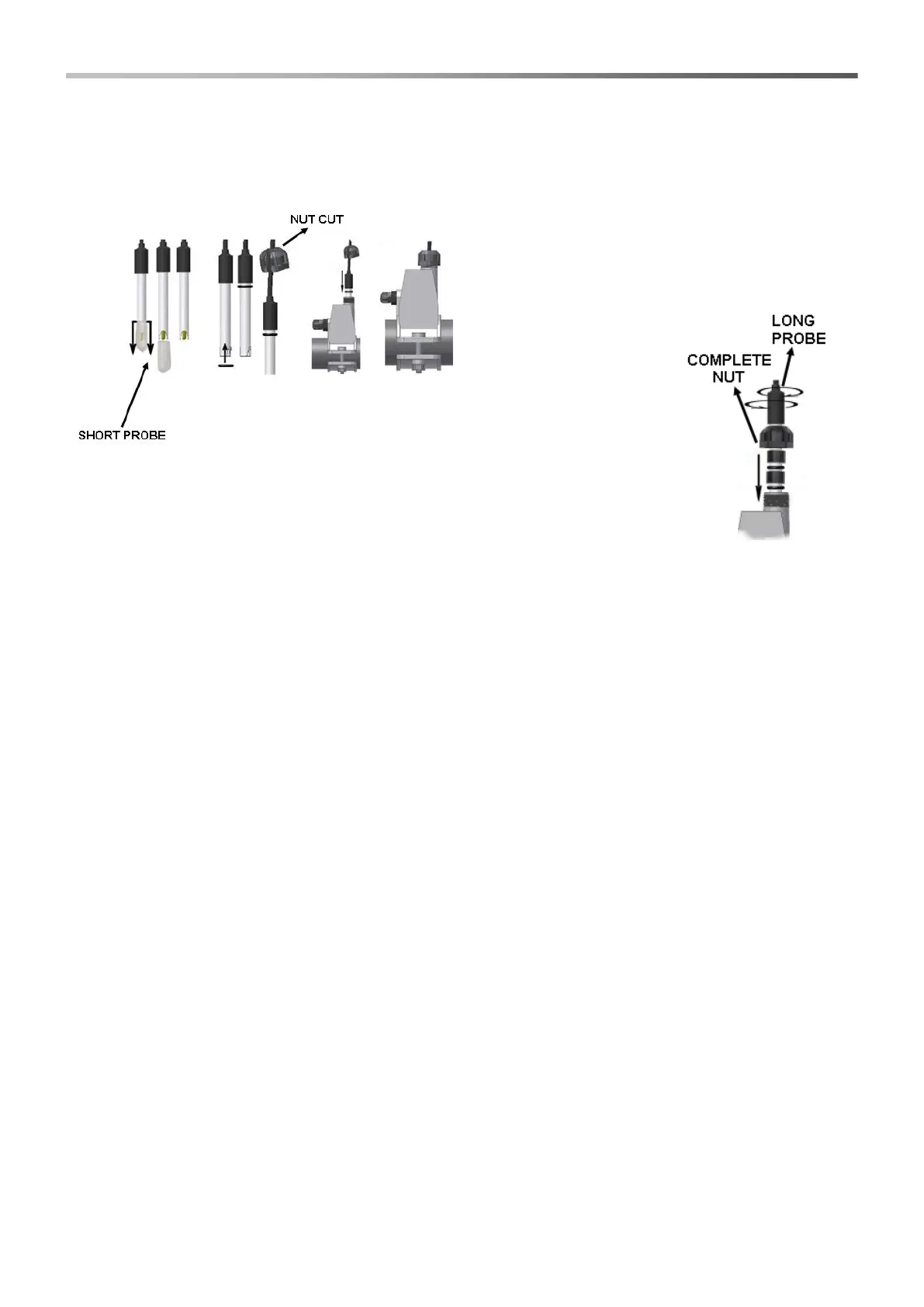

Long probe Installation (120 mm)
- A standard electrode (12x120 mm) can be used, in that case you must use all the
accessories inside the kit
- Put the nut (ref. 11) on the probe body and than, alternatively, one spacer (ref. 6) and
one o-ring (ref. 7), like shown in the picture on the side
- Insert with care the electrode in the probe holder, having care that all the components
reach their seats. Then screw the nut with care (ref. 11).
Warning Do not bend the electrode otherwise it will be damaged. Electrode inner part is very fragile.
