5
N.B. The inlet elbows are supplied at factory set 150mm centres. If
required, the inlet centres can be adjusted by winding the elbows
into the body to reduce the inlet centres, or out to increase the
inlet centres.
3
Once the wall surface has been finished, flush through the pipe
work prior to trimming the length of the pipes to 18mm, measured
from the finished wall surface.
N.B. We recommend using a rotary type cutter but if a hacksaw is
used, ensure the cut is straight and the pipe ends must be carefully
deburred and chamfered.
N.B. If plastic pipe is used, tube inserts must be fitted and must
not increase the diameter or extend the cut o length by more
than 2mm.
4

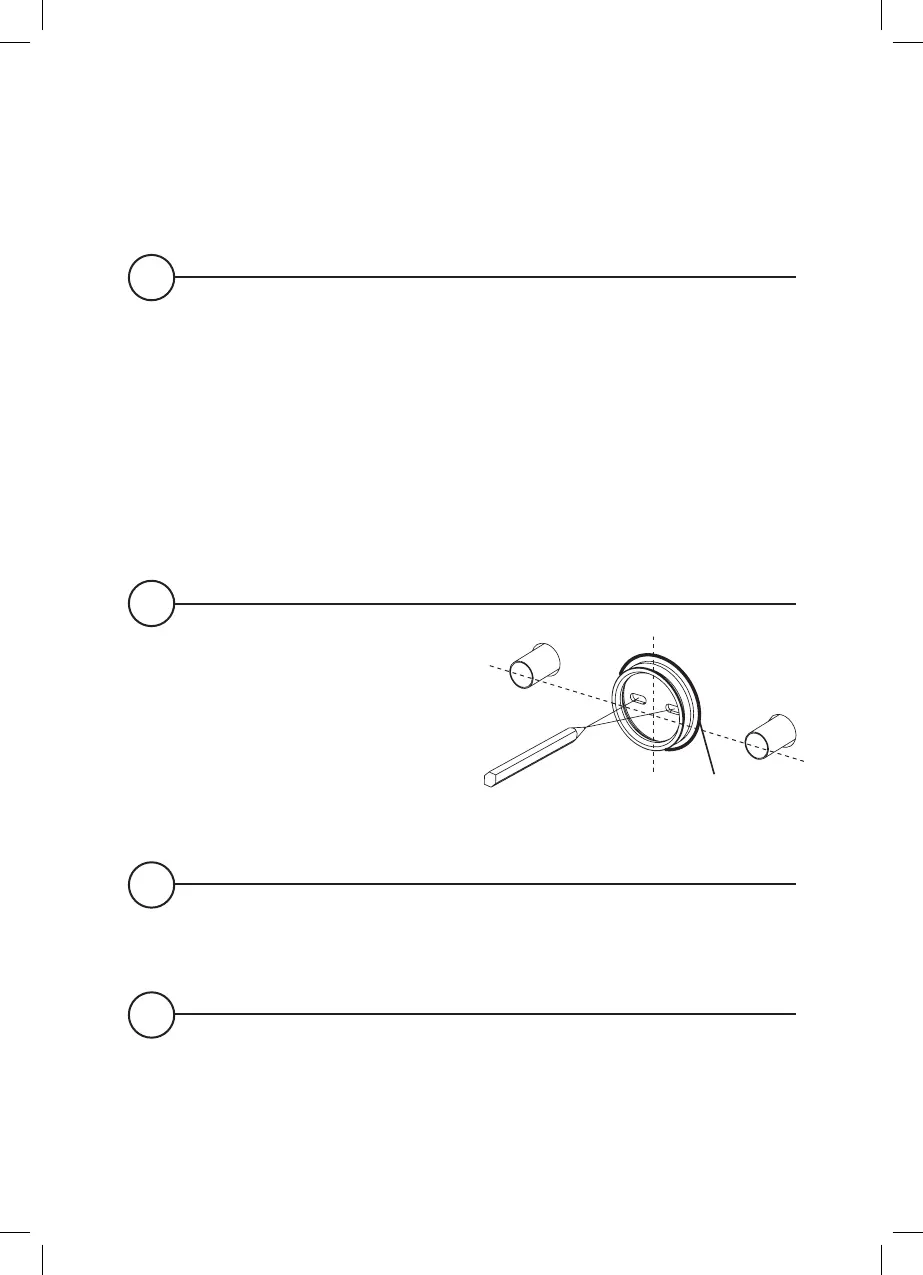

Place valve body against the wall
with elbows over the pipe tails
and mark around the base where
it sits on the wall. Remove valve
body, place mounting bracket
in centre of the outlined valve
position* and mark points for
fixing holes.
*Valve position
outline
5
Important - Use appropriate fixings suitable for wall type/
construction. Drill holes to suit required fixings (Use wall plugs
supplied if suitable).
6
Secure mounting bracket to the wall using the wall screws supplied
(if suitable).
To Next Page
