Refer to safety information section.
The maximum hot water inlet temperature must be no more than 65˚C.
Run pipework from the mixed water outlet of the Aqualisa SmartValve™ to the
proposed siting for the shower hose outlet, fixed head, bath filler or diverter
depending on the system purchased.
7
Flush through both hot and cold supply pipes.
Attach the supply pipes to the Aqualisa SmartValve™,
ensuring that the cold and hot feeds are fitted into
the appropriately marked inlets.
5
6
Do not solder near to plastic components.
For single outlet models, proceed to the relevant Controller section
(Concealed or Exposed). If you are fitting a divert system continue below, then
to the relevant Controller section.

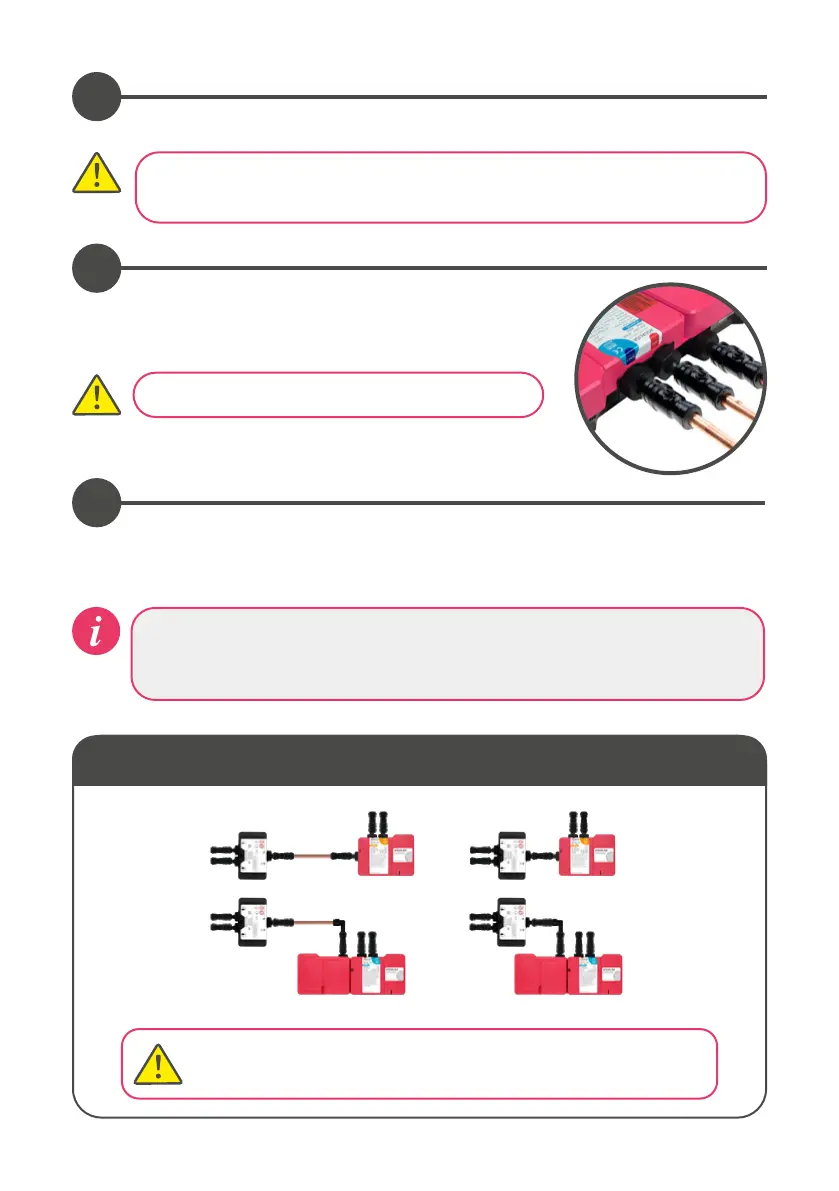

Divert Installation Examples
See section 1 for orientations.
Images shown are aerial views and are for illustrative purposes only.
