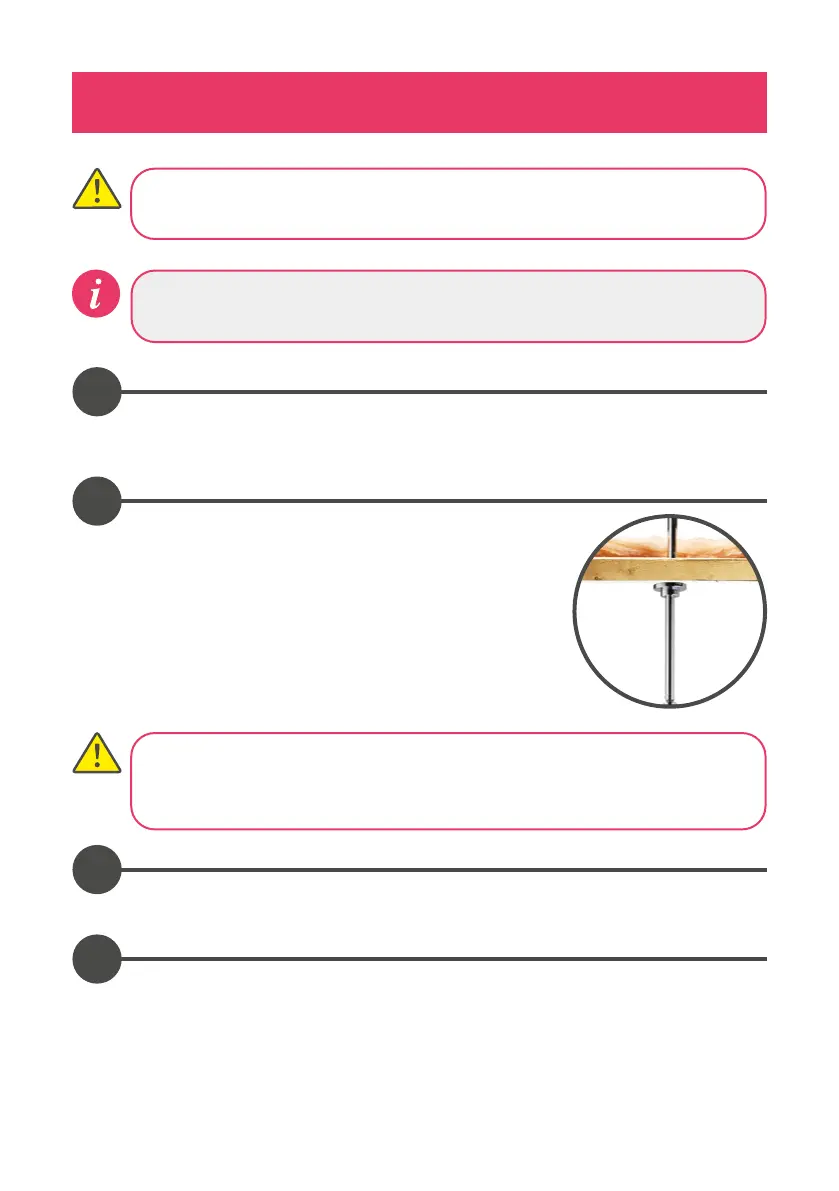

CEILING MOUNTED HEAD
Run a 15mm outlet pipe from the Aqualisa SmartValve™ or diverter (where supplied)
to the preferred position for the fixed head.
1
Drill a hole (minimum Ø28mm, maximum Ø40mm) through the ceiling and the
noggin.
3
Remove the fixing bracket carefully from the fixed head arm.
4
Locate the position for the fixed head in the bath-
room and firstly drill a pilot hole to mark the position
before checking that there is suitable space behind
the ceiling for the fixing assembly.
2
Installation videos are available on our website www.aqualisa.co.uk/installation-
videos or alternatively, scan the QR code on the reverse of this guide.
The minimum height required behind the ceiling is 50mm and the space
must allow for an 80mm wide, 50mm deep noggin to be used to support the
assembly.
The ceiling mounted fixed head is supplied with screws for fixing the product to
a noggin. A NOGGIN MUST BE USED AS PART OF THIS INSTALLATION.
