Aqualisa SMART - Securing Fixing Bracket to Ceiling and Noggin; Feeding Arm and Tightening Ceiling Mount Nut; Connecting Fixed Head Pipework; Sliding Cover Plate onto Fixed Head Arm

Cut o the excess pipe allowing for a suitable working length to allow for the
required 22mm connection. If a push fit connector is to be used then the pipe must
be abraded to remove all chrome plating.
7

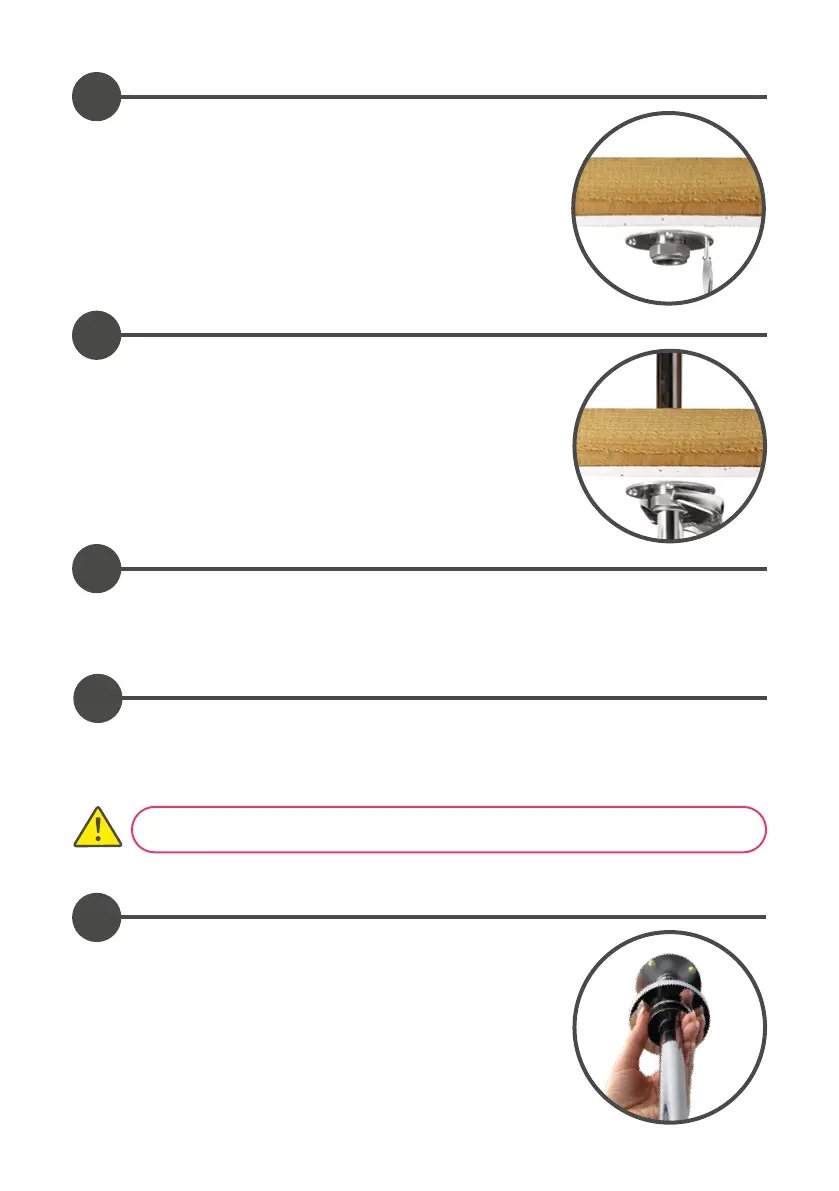

Set the fixing bracket into position and mark the fixing
points. Remove the bracket and drill and prepare
suitable fixings. Refit the fixing bracket and secure
it through the ceiling and into the noggin using the
screws provided (if suitable).
5
Feed the arm through the fixing bracket to the correct
depth. Tighten the nut using a 32mm spanner if
necessary to facilitate.
6
Connect the pipe work from the Aqualisa SmartValve™ or diverter (where supplied)
to the end of the fixed head pipe using a suitable coupling. Fully tighten the nut on
the ceiling mounting bracket using a 32mm spanner if necessary to facilitate.
8
Lubricate the ‘O’ ring if necessary and carefully slide
the cover plate back over the fixed head arm and into
position against the ceiling.
9
Run the shower for a few seconds to clear any debris and to check for any leaks.
