Visage Digital concealed installation instuctions page 7

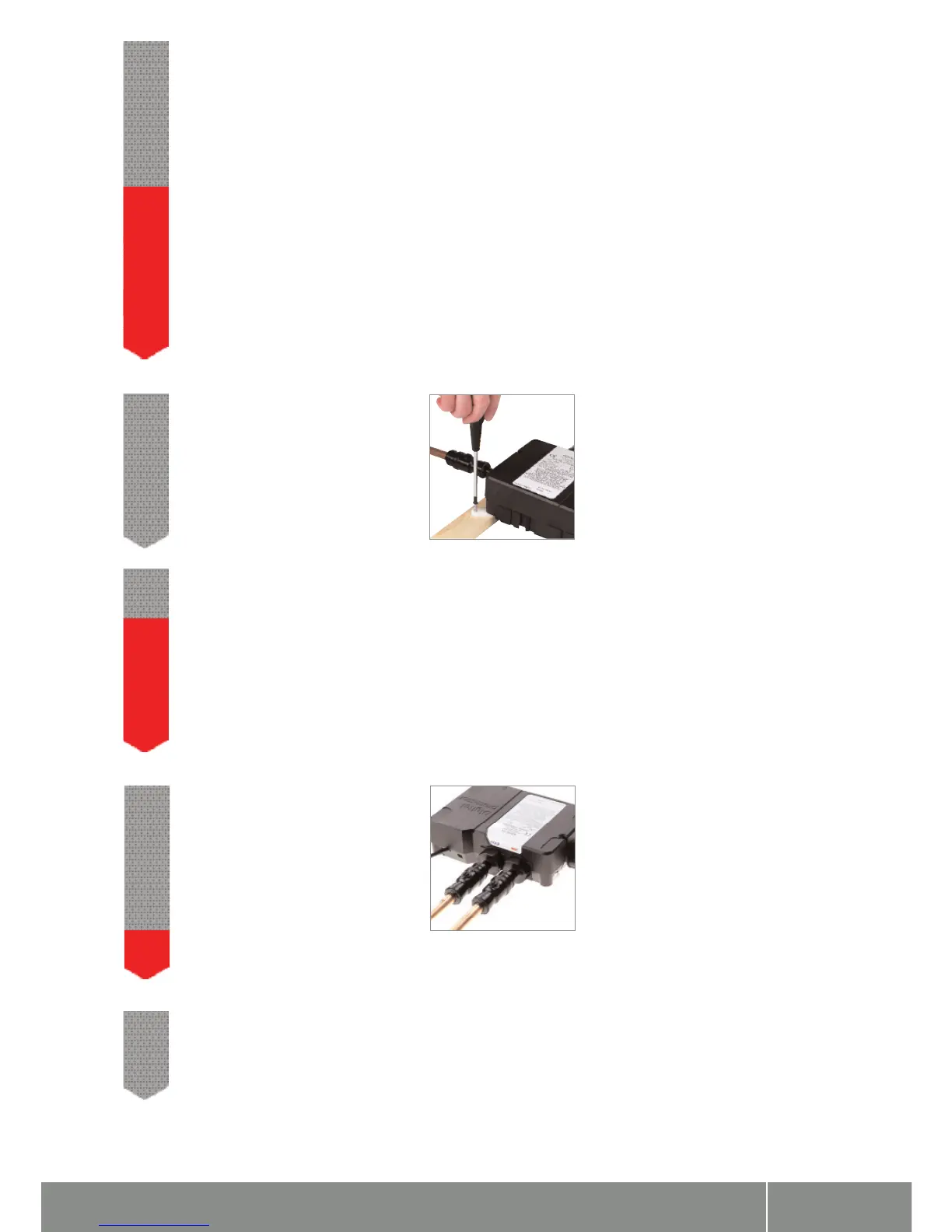

Place the Digital processor on a solid
mounting surface, mark and prepare the
fixings before securing the processor to the
mounting surface using the screws provided.
4
Flush out the 15mm hot and cold supply pipes.
5
The maximum hot water inlet temperature must be no more than 65˚C.
!
Choose the position for your Digital processor as close to the shower control
as possible.
The processor may be sited in the roof space above the proposed shower site,
in the airing cupboard or behind a screwed bath panel if more convenient.
If siting in the roof space, ensure that freezing cannot occur and that no
insulation material is placed under or over the processor. Please refer to the
system layout diagrams overleaf.
3
!
The optimum position for the Digital processor is in the roof space above the
shower site to take full advantage of the ease and speed of installation.
The distance between the Digital processor and shower control must be
within range of the 10m data cable supplied.
THE PROCESSOR MUST BE SITED IN A POSITION SO THAT ACCESS CAN BE
GAINED FOR TESTING AND SERVICE PURPOSES.
Connect the supply pipes to the Digital
processor, ensuring that the cold and hot
feeds are fitted into the appropriately
marked inlets.
6
DO NOT SOLDER NEAR TO PLASTIC COMPONENTS
!
Run a pipe from the mixed water outlet on the Digital processor through the
wall to the proposed siting for the shower hose or fixed head outlet.
7
