Visage Digital concealed installation instuctions page 8

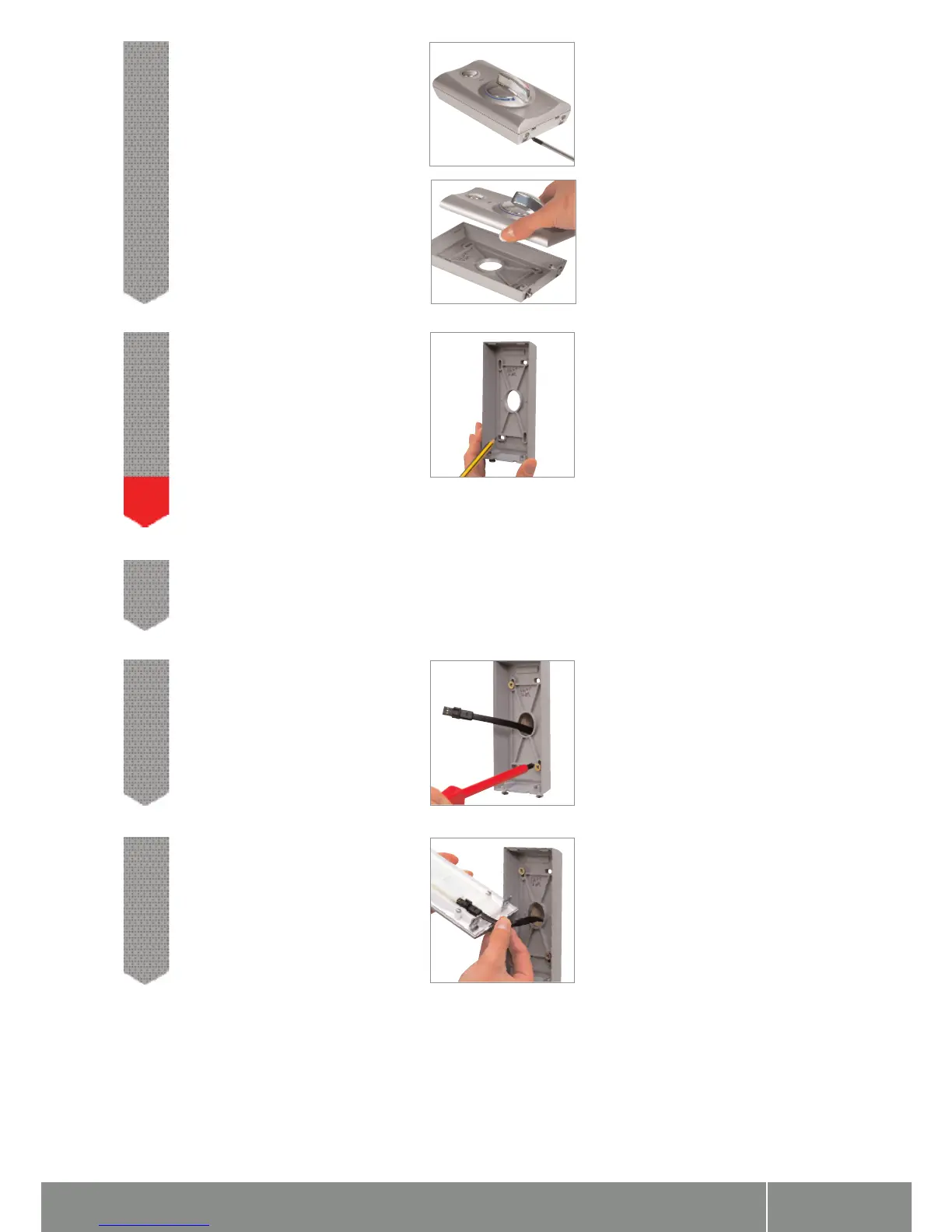

Place the backplate on the wall in the desired
location for the shower control and mark the
fixing points and the data cable entry point.
Remove the backplate and drill a Ø16mm hole
at the appropriate position for the data cable.
9
The data cable should be run in conduit to allow for replacement if required.
Ensure the mounting holes do not pierce the data cable conduit.
!
Drill and prepare the wall fixings for the controller using the fixings provided,
if suitable.
10
Run a thin bead of mastic within the mastic
groove at the rear of the back plate. Feed the
data cable through the back plate leaving a
working end of at least 100mm. Secure the
back plate to the wall using the screws
provided.
11
Unscrew the two front cover fixings at the
base of the controller ensuring the captive
screws drop sufficiently to allow the front
cover to be pulled clear. Carefully lift the
controller from the bottom of the back plate
and pull the cover clear.
8
Offer the data cable into the rear of the
controller in the correct orientation. Push the
data cable into position ensuring the cable
connector watertight seals are pushed fully
home.
12
