10 Aquatic Industries, Inc.
MODEL A B
(From center of overflow pipe (From center of
to outside rim) drain to tub rim)
VARIATIONS ON EACH TUB AND SPECIFICATIONS ARE SUBJECT TO CHANGE AS WE
IMPROVE UPON OUR PRODUCT AS REQUIRED.
THE DIMENSIONS NEEDED FOR SITE PREPARATION AND STRUCTURE BUILDING
PREPARATORY WORK.

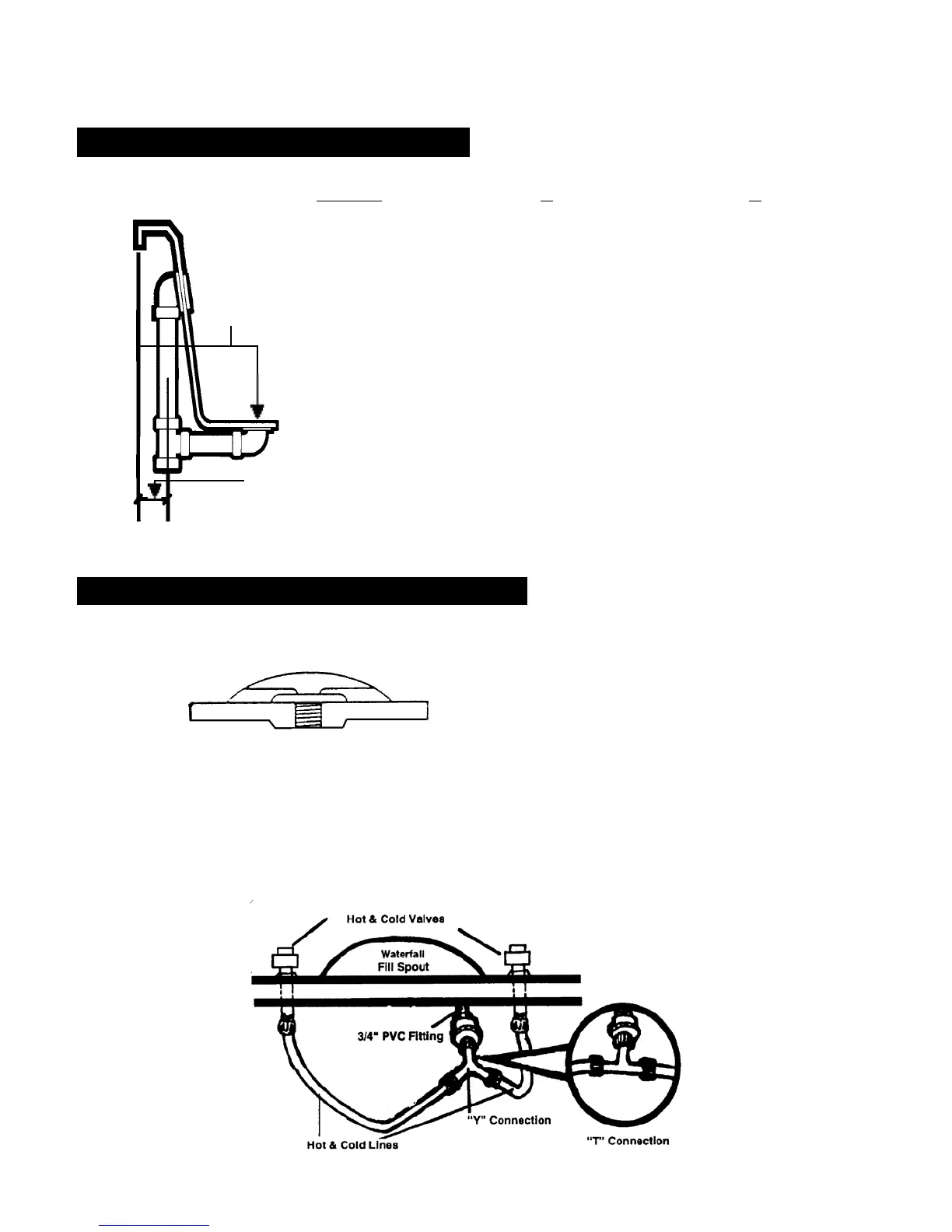

ROUGH-IN MEASUREMENTS:
INSTALLATION INSTRUCTIONS
B
A
3A
3B
FAST FILL WATERFALL SPOUT:
Fast Fill Waterfall Spout is stubbed out
FROM VALVES
Your Fast Fill Waterfall Spout will be stubbed as in Diagram 3B.
See Diagram 3C for connecting the hot and cold valves.
3C
CAUTION:
Do not overtighten. Do not use Teflon Tape.
To Next Page
