Araknis Networks AN-310-RT-4L2W User Manual

© 2018 Araknis Networks
®
-Return to Table of Contents-
46
Araknis Networks® 310 Series Router
User Interface Manual

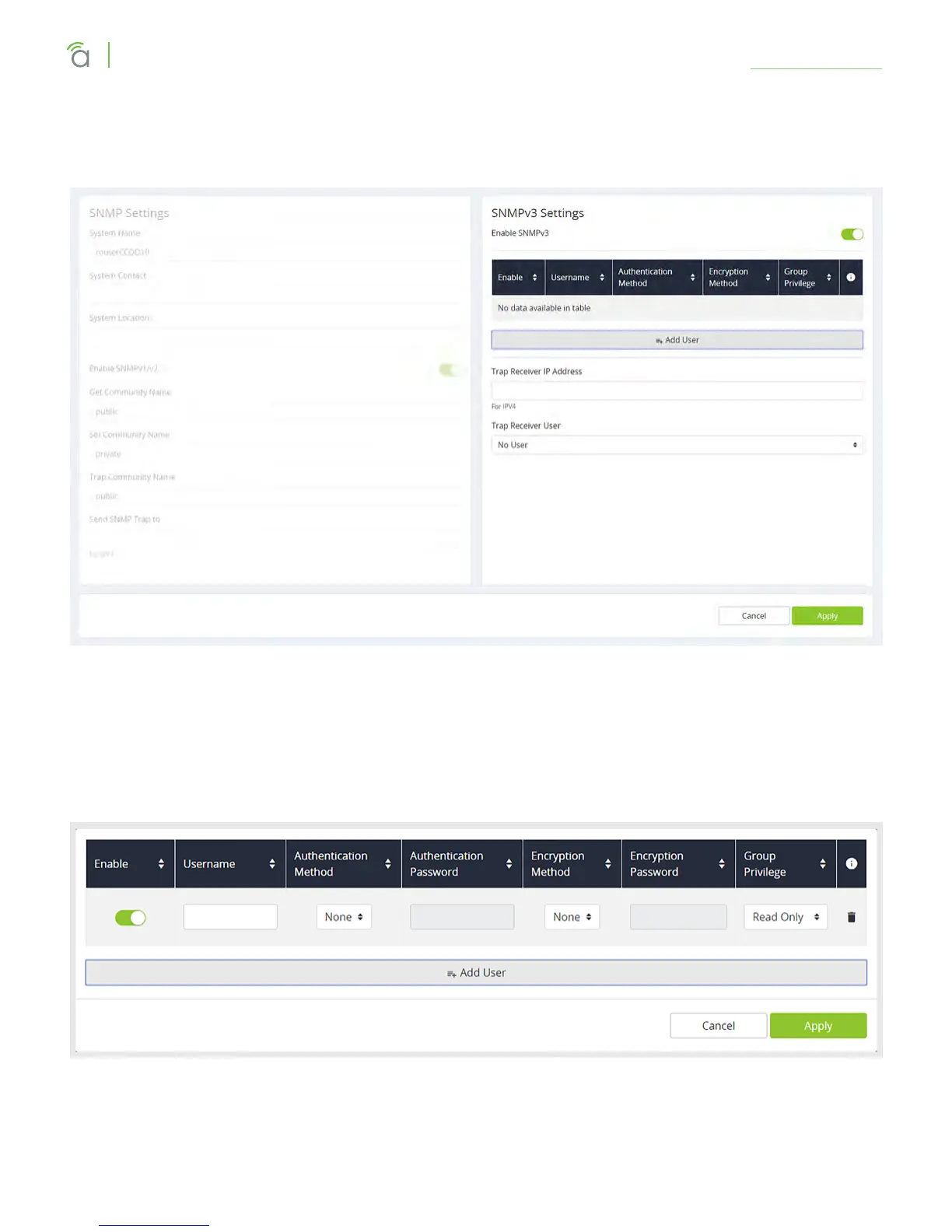

Advanced > SNMP
SNMPv3 Settings Section
SNMP3 adds the ability to set up users with a more robust authentication scheme.
The user table lists all users currently enabled.
Trap Receiver IP Address: The IPv4 address to send all the Trap Community messages from all capable
SNMP devices on the network.
Trap Receiver User: Beyond relaying where the traps end up going on the network. Can also limit which
user as authenticated on the SNMP network can even have access to these traps (notifications).
When you click Add User, the following dialog appears:
Enter the appropriate information to add a new user. To delete a user, click the trashcan icon by their entry.

Araknis Networks AN-310-RT-4L2W Specifications

General

Brand	Araknis Networks
Model	AN-310-RT-4L2W
Category	Network Router
Language	English
