to chassis rail width variations packers (numbers: 5846273 & 5846274), with fitting tabs, may need to be inserted
between the “Impact Absorbers” and chassis rails.
DIAGRAM 3

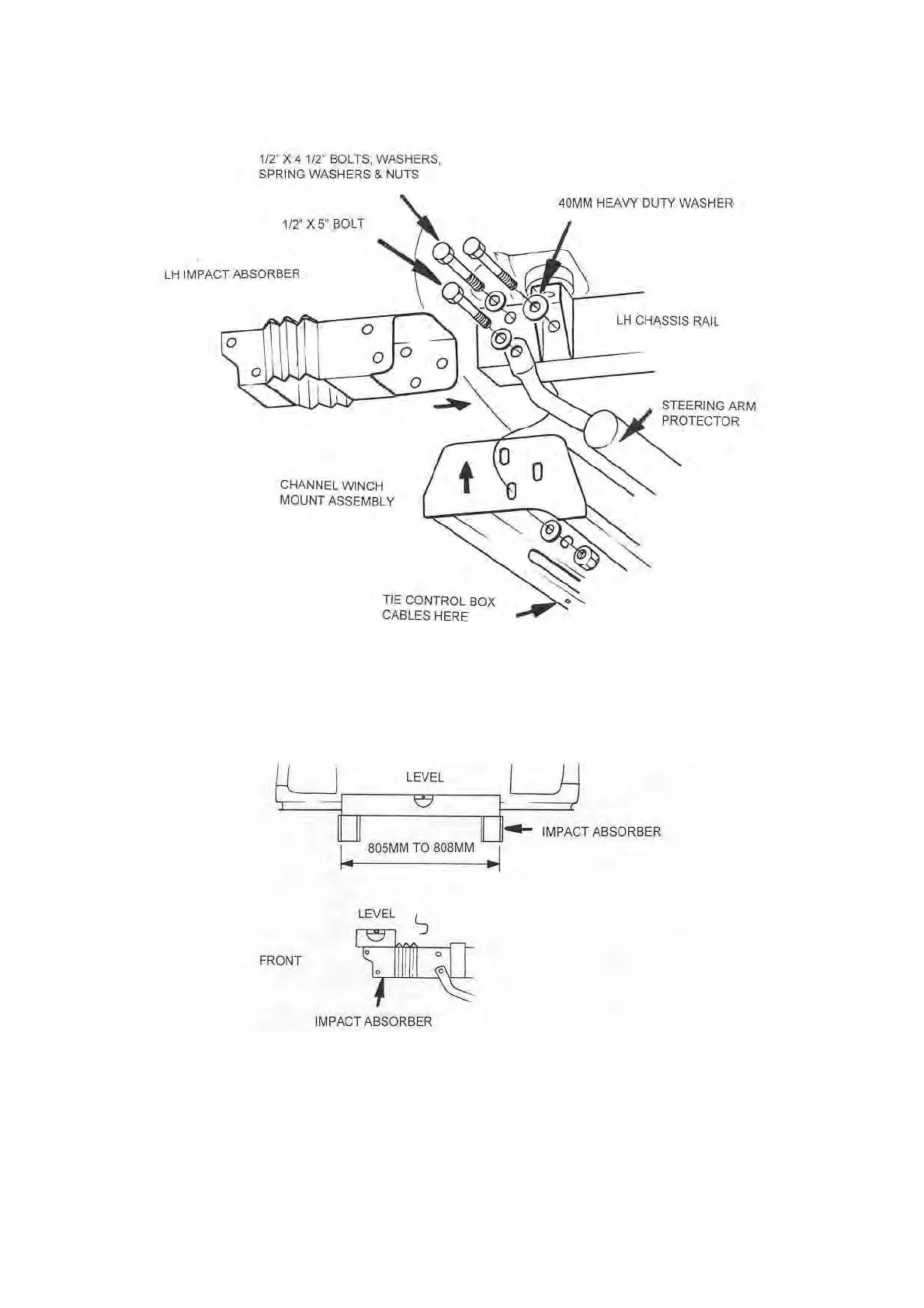

10. Using a level and a tape measure, adjust both Impact Absorbers so that they are parallel to each other, horizontal,
and have an overall width of between 805mm and 808mm, then tighten the bolts. Refer to diagram 4.
11. WINCH BARS ONLY:
