ARB 3921120 - Basic Assembly Procedures

18/04/13 Page 3 of 9 3786418
Winch To Bull Bar
EG50
3756499
6151021
4581044
6151132
BLB560
4581040
6151074
1
1
2
2
2
2
4
2
Rubber Grommet
Bracket Control Box
Bolt M8 x 20mm
Washer Flat M8
Nut Flange M8
Cable Black 560mm
Washer Flat M10 x 2mm
Bolt 1 ¾” x 3/8” UNC
Washer Bottle Guard
To Bar
6522031L
6522031R
6151234
4581045
6151132
1
1
10
10
10
Washer Bottle Guard For Sahara bar
Washer Bottle Guard For Sahara bar
Bolt M8 x 25mm Black
Washer Flat M8 Black
Nut Flange M8
Miscellaneous
6821132
6151128
180302
3162152
180701
2
2
6
2
6
Rubber Grommet 3/8” ID
Nut Flange M6
Cable Ties
Plastic Plug 16mm DIA
Scotch Lock

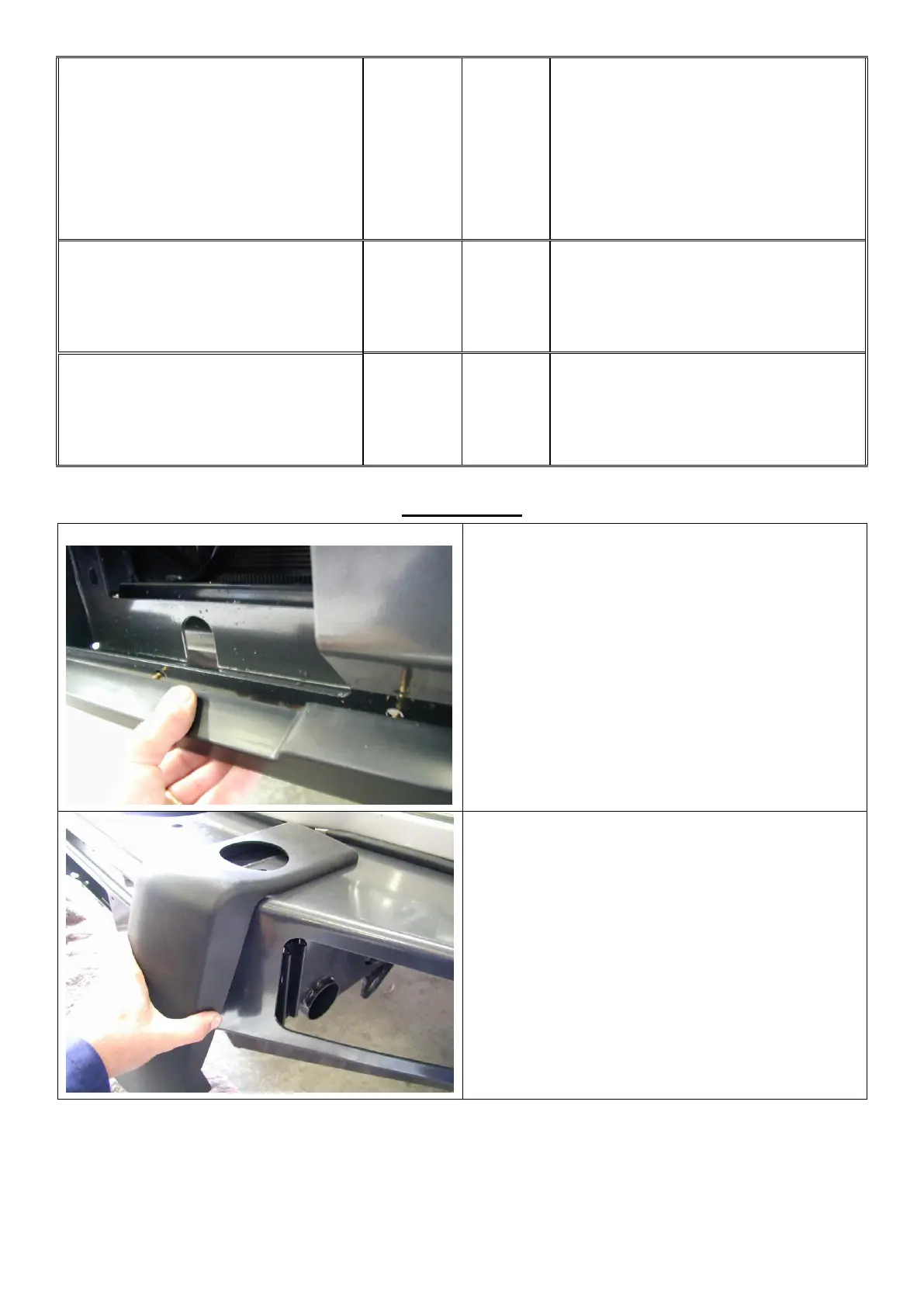

ASSEMBLY
1. Position the lower buffer and assemble using
the M6 flange nuts. (Do not over tighten)
1. Fit the buffers. Buffer studs fit through the
slots in the wings and the pan. Fasten
using M6 flange nuts.
Note: This applies to both blank buffers and for
those with the hole for optional frame.
CAUTION: DO NOT OVER TIGHTEN THE M6
NUTS AS YOU RISK PULLING THE STUDS OUT
OF THE BUFFERS.
