18/04/13 Page 4 of 9 3786418

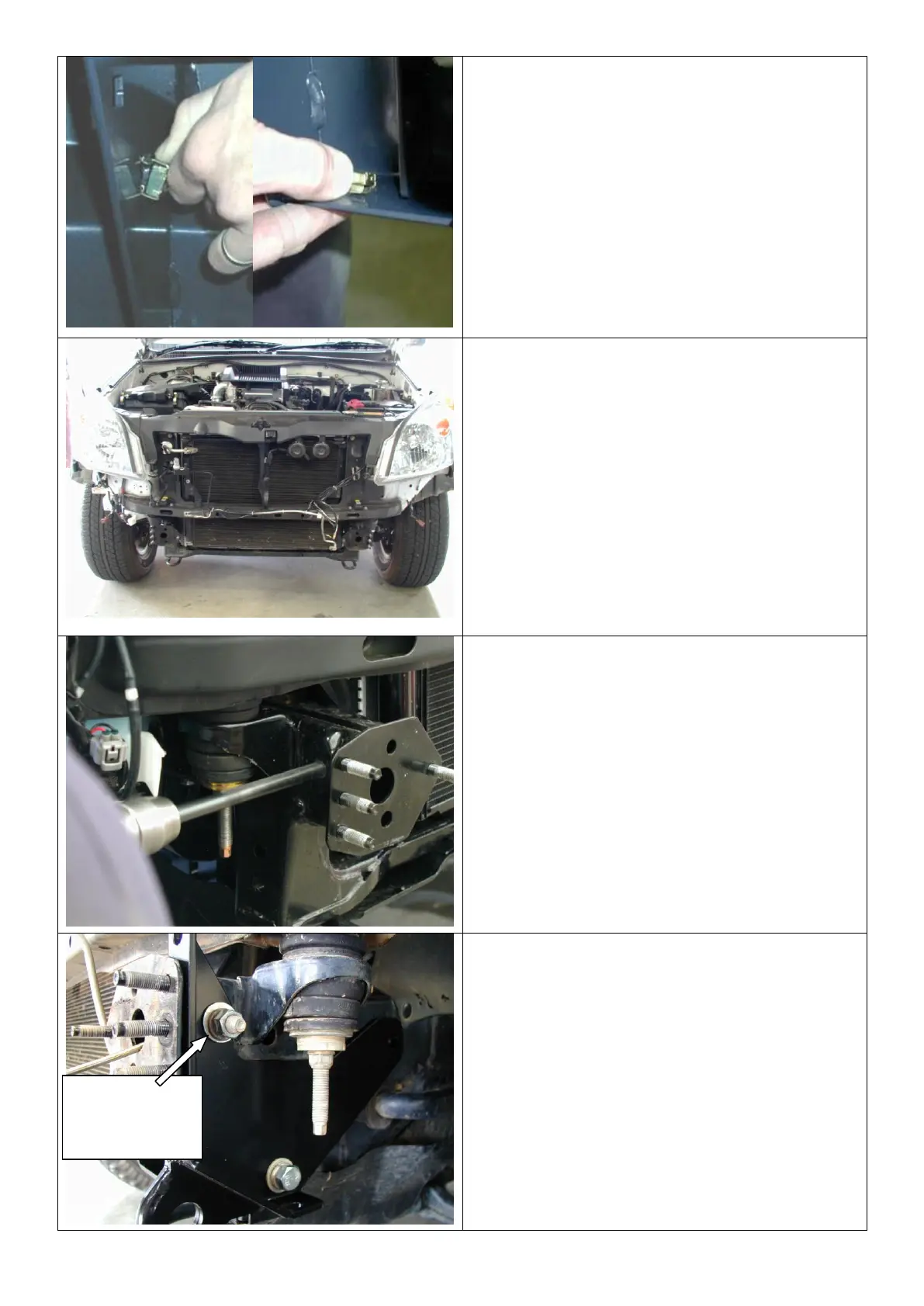

2. Fit cage nuts to the bull bar. M10’s to
the six square holes in the upright and
M6’s in the four square holes in the
lower part of the pan. Also fit the M12
cage nuts to the captive nut assembly.
3. Remove front bumper cover from
vehicle.
4. Remove front bumper reinforcing bar.
5. Remove side bumper supports from
both guards.
NOTE: Retain the 8 flange nuts removed
for fitment of the bull bar chassis mount.
6. Using the 13mm drill bit, drill out the M8
captive nut in the top of the chassis on
both sides of the vehicle.
7. Fit the chassis mount braces to the
vehicle using the M12 x 30mm fine
pitched bolt, M12 spring and flat
washers supplied in the lower hole. Use
a M12 flat washer as a spacer between
the brace and the chassis at the upper
hole and fix with a M12 x 40mm bolt
M12 spring and flat washers and M12 x
1.75 nut. Do not tighten the bolts.
Use a M12 flat
washer as a spacer
between chassis
and bracket.
