18/04/13 Page 5 of 9 3786418

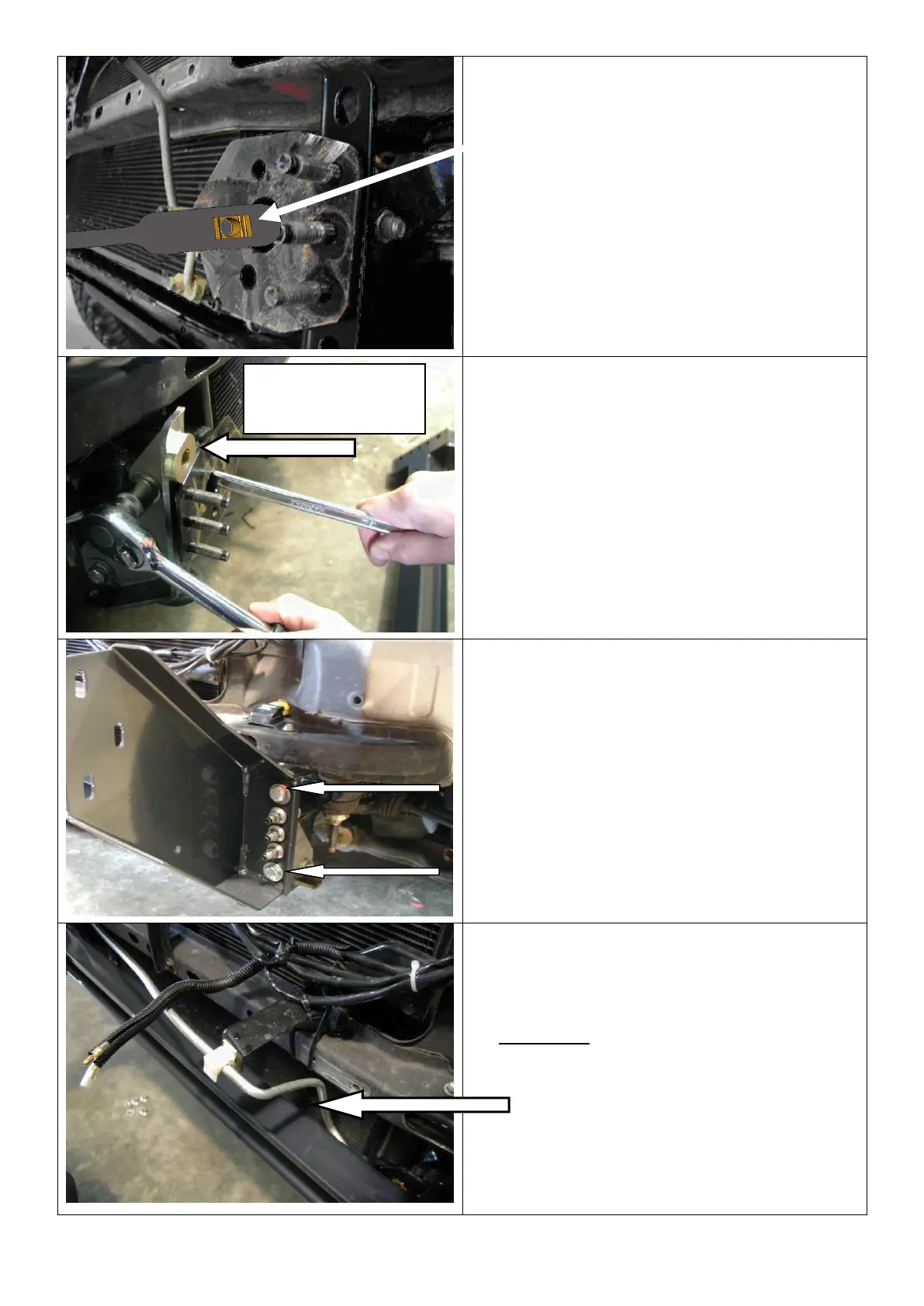

8. Insert the captive nut assembly through
the front of the chassis and line it up
with the hole at the end of the mount
brace. Fix in place with the M12 x 1.75
x 40mm bolt, M12 flat and spring
washers. Break off the end of the
captive nut plate. Do not tighten yet.
9. Hold the 8mm spacer against the
chassis mount brace forward facing
surface and position the brace so that
the spacers sit just below the surface of
the chassis front face. Tighten the bolts.
10. Fix the chassis mount bracket to the
chassis mount brace using M12 x
40mm bolts, M12 spring and flat
washers, the 8mm spacers and M12 x
1.75 nuts. Tighten bolts.
CAUTION: when fitting the Chassis
mounting bracket carefully bend the air-
conditioning pipe out of the way.
Position brace so spacer
won’t protrude from the
chassis forward surface
