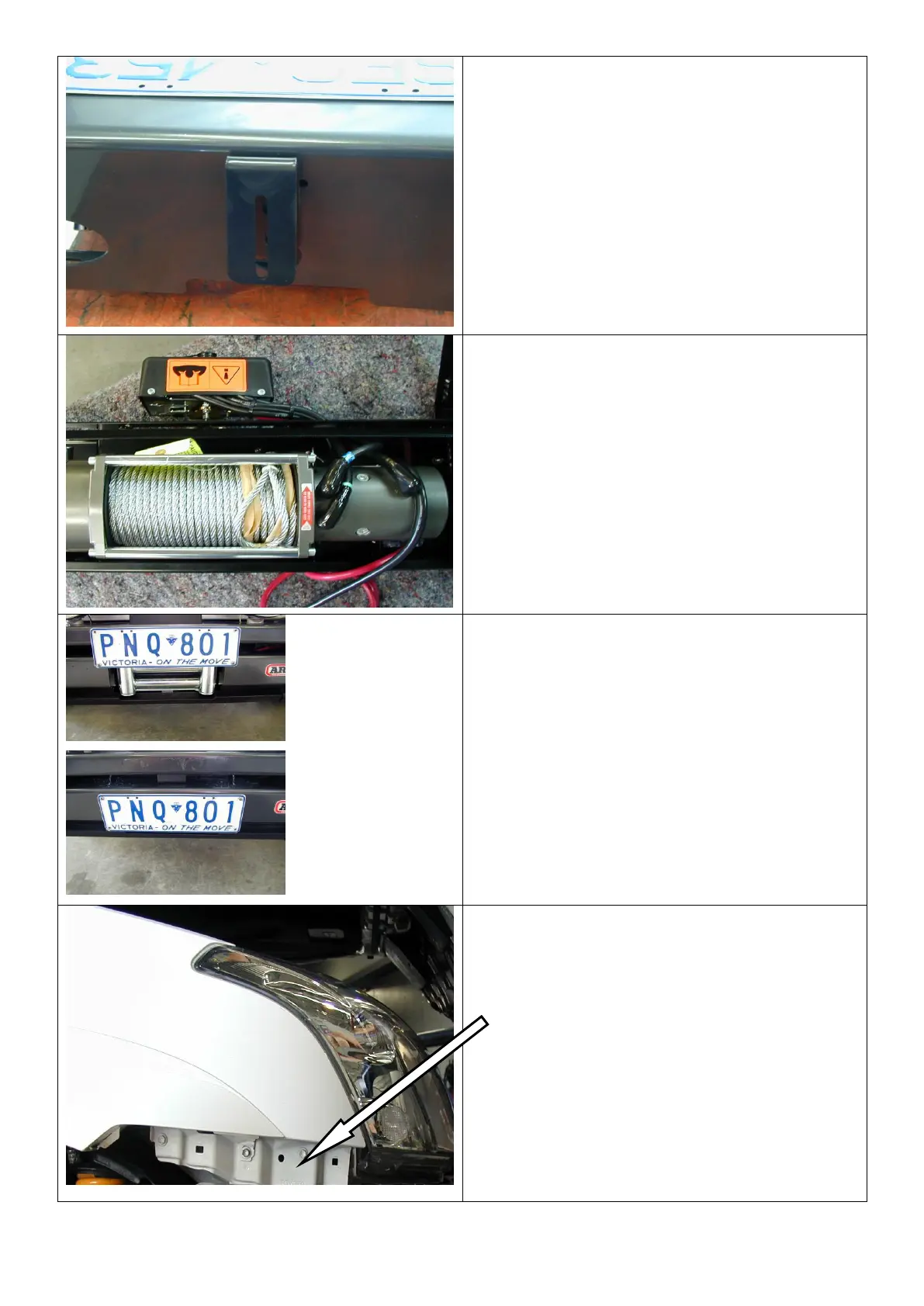

18. Fit the control box bracket to the bar
using two M8 x 20mm bolts, M8 flat
washers and M8 flange nuts.
19. Fit the control box to the control box
bracket and connect the power cables
to the winch as per the winch
instructions.
20. Connect the ground wire to the tension
bar of the winch.
CAUTION: Cable-tie all cables together
and keep all cables clear of sharp edges
and all moving parts.
21. Place the double-sided tape along the
top edge of the licence plate. Using the
original licence plate screws and M6
flange nuts supplied in the fitting kit,
attach the licence plat to the bar.
22. Mask the area around the headlight and
the front guard and paint the lower
section under the front guard black.
Paint this section on both sides black.
23. With the help of an assistant position
the bar on the chassis bracket and fix
with six M10 x 30mm bolts, M10 spring
and flat washers.
Do not tighten the bolts yet.
