If fitting Top Tube

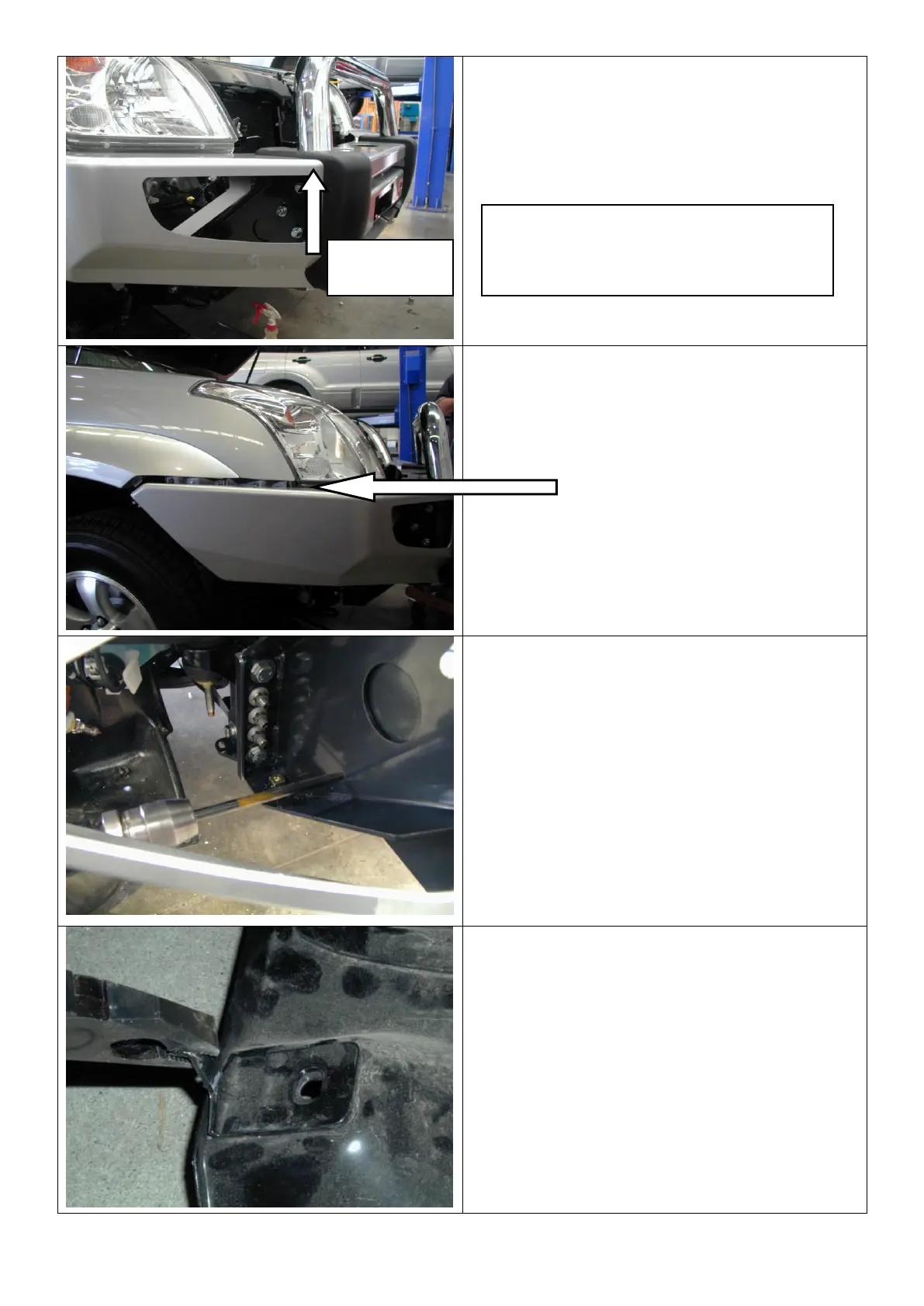

24. Attach the tube to the bar by pushing
through the holes in the buffers, fix
using two M12 x 1.75 x 40mm bolts, ½”
flat and spring washers.
25. Position the bar so that there is an even
gap along the headlights and the
guards of 25mm. tighten all the bolts.
25mm gap
26. With the bar in position drill a 10mm
hole through the upright on both sides
using the hole in the chassis bracket as
a guide.
27. Fix in place using two M10 x 30mm
bolts, M10 spring washers, M10 Flat
washers and M10 x 1.5 nuts.
28. Remove the front stone tray from the
vehicle and remove the tags at the front
of the tray. Refit the stone tray fixing in
place with the rear bolts only.
NOTE:
Torque these M12 fasteners to
44Nm only (Critical)
