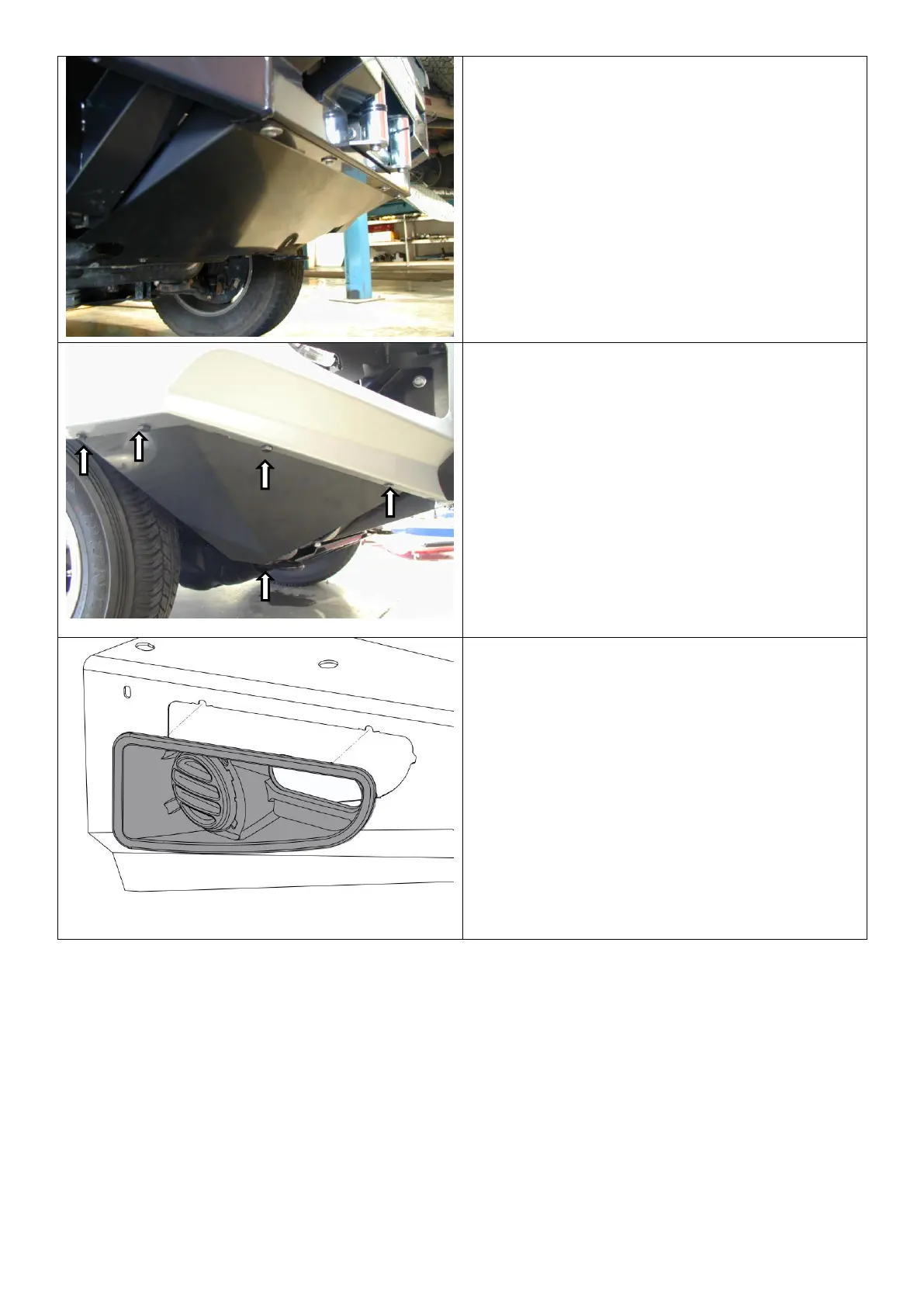

29. Fit the bull bar stone tray by sliding the
tray under the front of the vehicles
original stone tray and fixing in place
with the original bolts from the vehicles
stone tray.
30. Fit the front of the stone tray to the bull
bar with four M6 x 16mm bolts, M6
large panel washers and M6 spring
washers.
31. Fit the washer bottle guard with five M8
x 25mm black bolts, M8 black flat
washers and M8 flange nuts.
32. After fitting the washer bottle guard, trim
the plastic inner guard liner so that it
doesn’t sit below the line of the washer
bottle guard
33. Attach the inner guard to the washer
bottle guard with cable ties.
Repeat step 33 for the opposite side.
34. Assemble and install combination light
surrounds (p/n 3163015) as per
instructions no. 3786421 supplied with
surround kit. Note: Optional fog lamps
can be installed at this point as per
fitting instruction no. 3783315 supplied
with fog lamp kit no. 6821201.
35. Wire the combination lamp to the
vehicles indicator and clearance lamps.
CAUTION: Cable-tie all cables together
and keep all cables clear of sharp edges
and all moving parts.
When finished make sure that all bolts are tightened and that all wiring is clear of hot, sharp and
moving parts.
Also supplied in the kit are two 3/8” rubber grommets and two 16mm plugs. The rubber
grommets are for the two holes in the top pan if lights are being fitted. The two plastic plugs are
for the holes in the top surface of the wings if no CB aerials are going to be connected.
