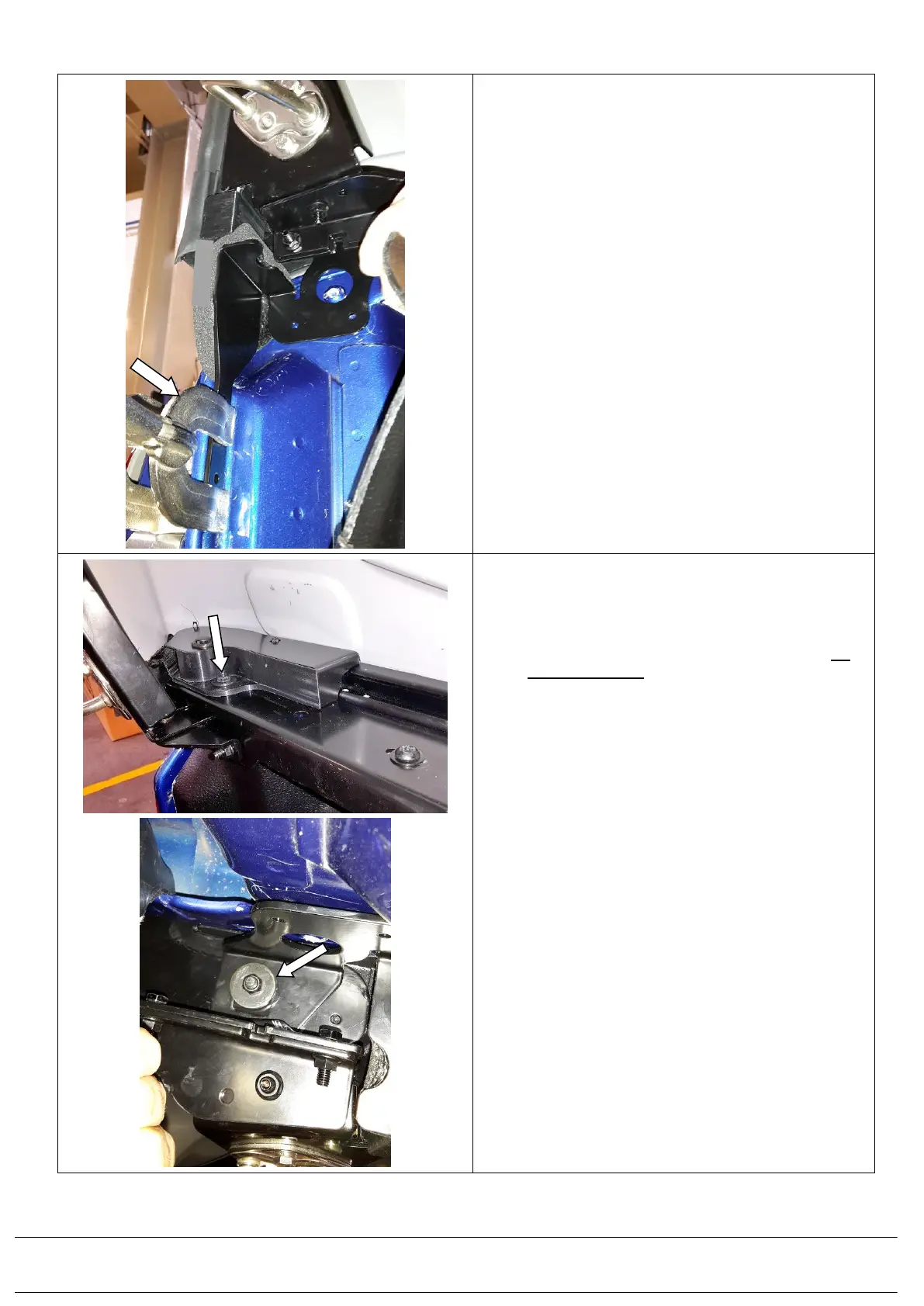

4.37) Clamp up the rear tub corner sealing brackets
(LH shown) to the inside lip of the rear corner of
the vehicle’s tub towards the tailgate and push it
hard up against the side wall of the tub.
Position the bracket so its top surface is also
contacting the underside of the base rail.
Repeat on the opposite side of the canopy.
4.38) Using the retained M6 x 25 screw, M6 washer,
and M6 larger washer on the bottom and M6
nylock nut, screw the wing on the injection
moulded corner piece down through the rear tub
mounting /sealing bracket on the inside and do
up to 7Nm only.
Repeat on the opposite side of the canopy.
