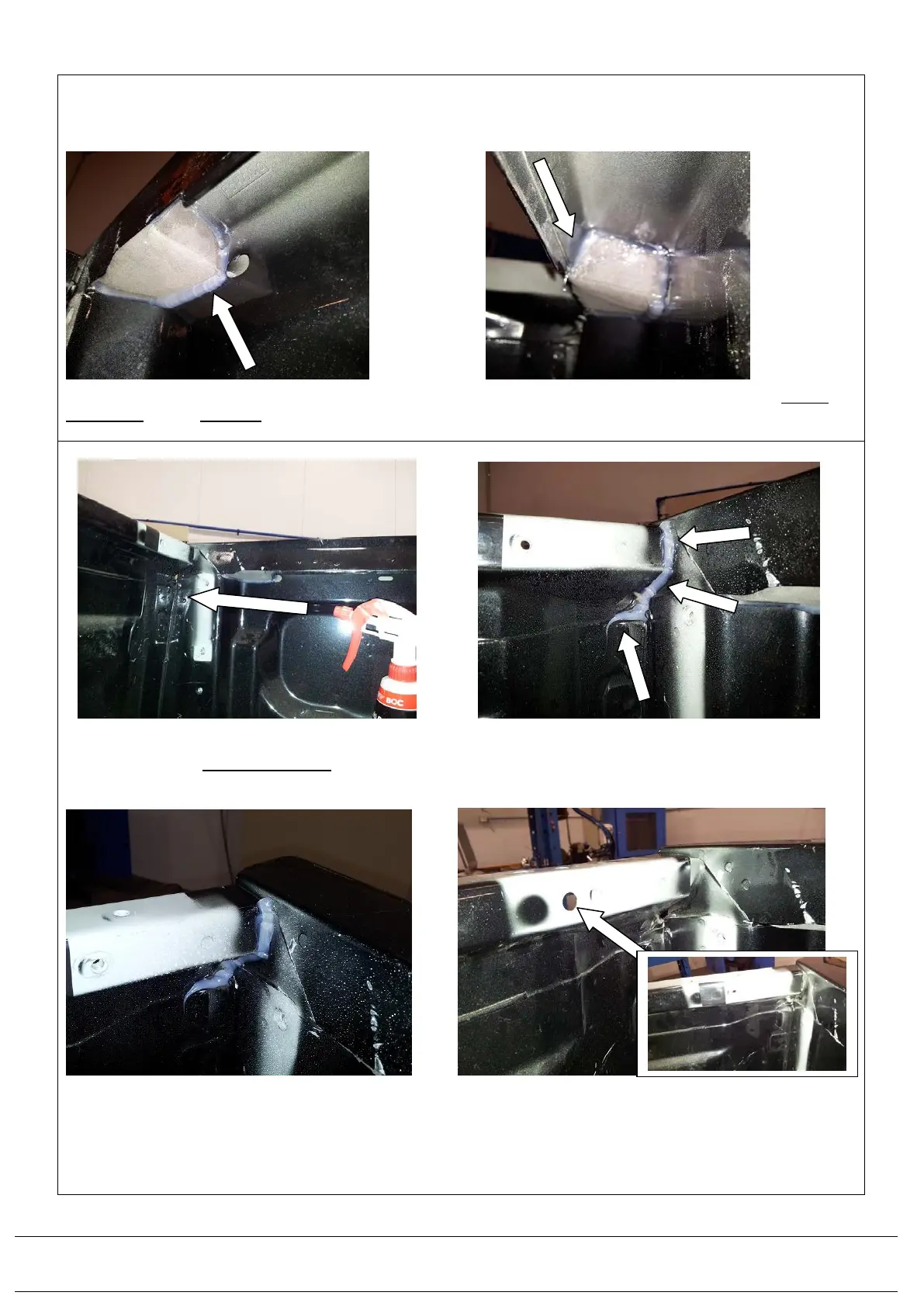

flat on its 50x75mm face, push it up under the side rail of the tub and push it forward. Locate the rear edge of the
foam block level with the oblong slotted hole in the side tub sheet metal wall as shown above. Repeat this on the
opposite side.
2.2) Spray water using a spray bottle around the foam block to aid in applying silicon cleanly. Then apply neutral
cure silicon around all edges of the foam block where it contacts the tub sheet metal and clean up. Repeat this on
the opposite side.
2.3) Spray water using a spray bottle, down the front internal corner junction of the tub, to aid in applying silicon
cleanly. Then apply neutral cure silicon around all sheet metal panel gaps as shown above and clean up. Repeat
this on the opposite side.
2.4) Apply black sticker (668PB006) over open hole next to the threaded hole in the front tub panel as shown above
to provide a water seal. DO NOT cover the threaded hole.
