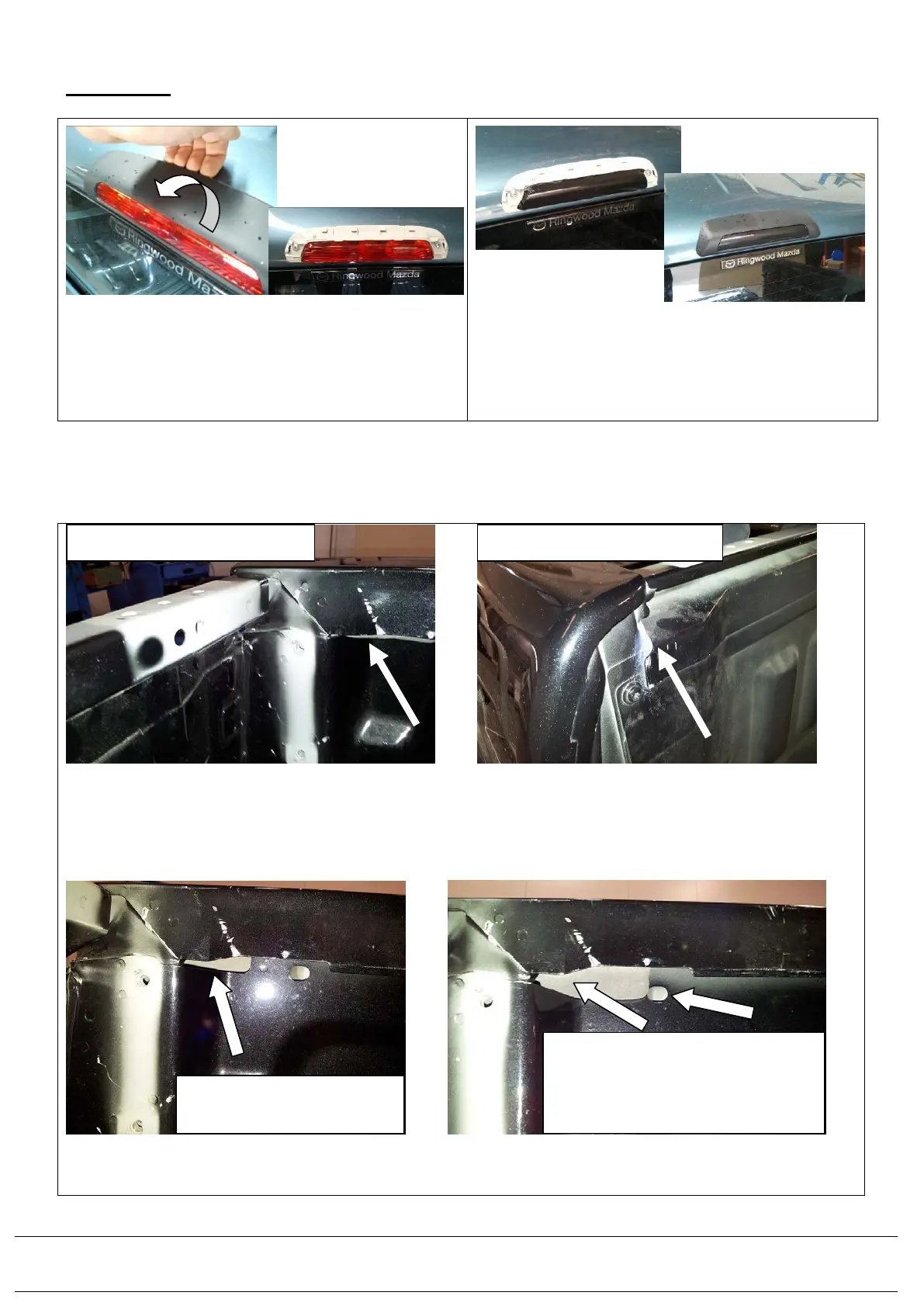

SECTION 2: OBSCURING THE VEHICLE’S STOP LAMP
On the back of the roof of the vehicle’s cabin, pull back
the black surround on the cover, by lifting and pulling it
simultaneously.
Hint: Instructions on bezel removal are also given in
the vehicle owner’s manual
Clean the lens and carefully apply the tape, starting in the
centre, smoothing out any bubbles.
Trim back corners and the sides as necessary, trying to
keep as much of the lens covered as possible.
Refit the cover
SEALING THE VEHICLE’S TUB:
With the bed liner, sports bars and cabin guard removed, seal the front corner of the vehicle tub
using the following steps.
The vehicle’s tub is shown with cabin guard removed (if fitted) it needs to be removed prior to fitting the canopy by
unscrewing it. (The tub is shown for clarity removed from the vehicle)
The front corners of the tub where arrows are shown are not sealed ex-factory on both sides.
It is necessary to seal these areas before a canopy is fitted.
2.1) Inside of the vehicle’s tub side rail at front corner, locate the hole in the side rail in the tub and push one of the
foam blocks (668PD010) into it in the following orientation. The foam block is 50x30x75mm. With the block sitting
Inside front corner of tub
Exterior front corner of tub
Hole in front corner
under side tub rail
Push foam block up and forwards
into the hole in front corner under
side tub rail. Align rear edge of
block to oblong slot
