1.67) Trim the bed line out along the marked lines
and clean up swarf on the part.

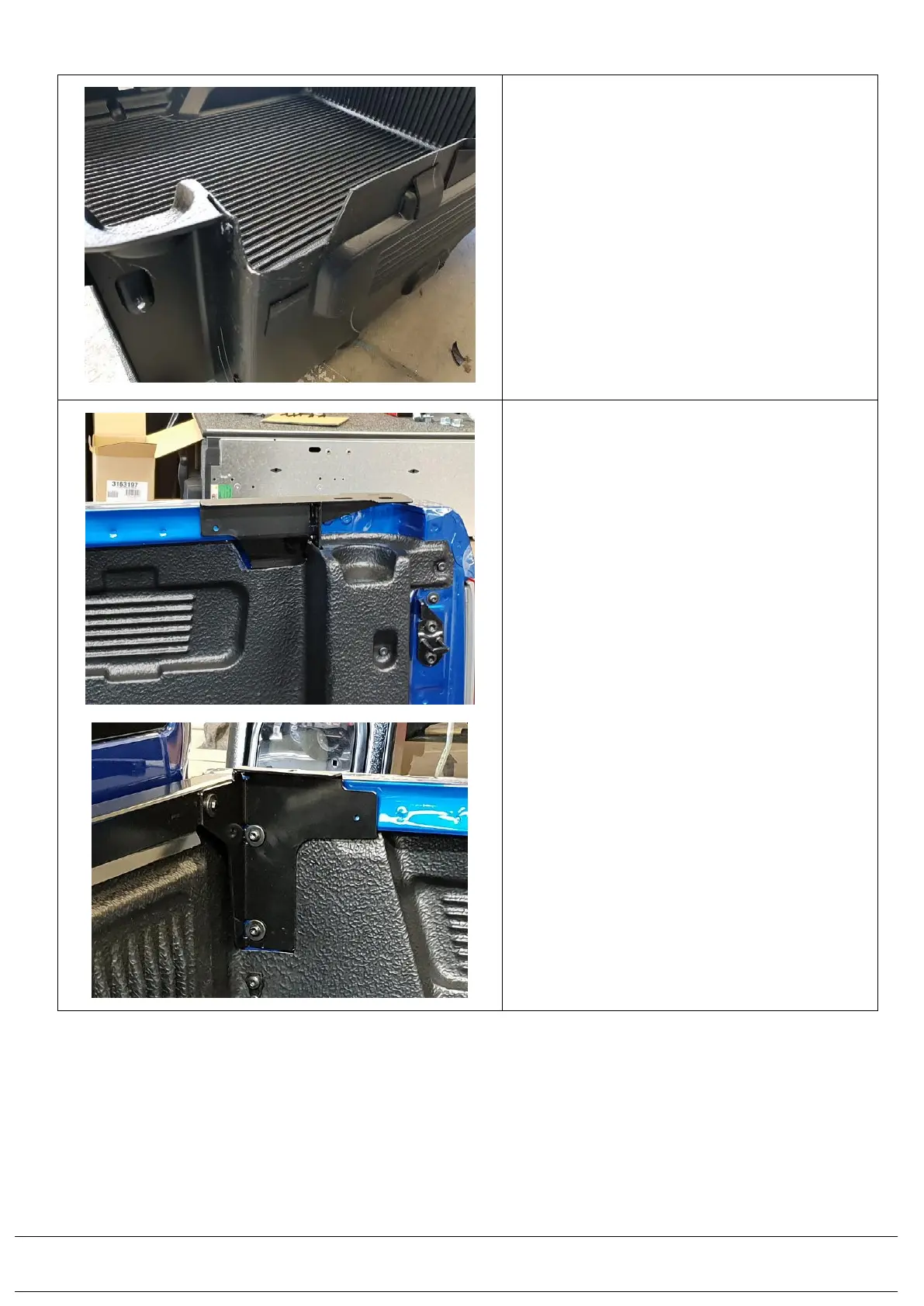

The finished cut out should look like as is
opposite at this point.
Repeat this on the opposite corner in
mirror image
Do Not fit the bed liner at this point go to
section 2. Complete section 2. Then refit
the bed liner socket plug. Complete
section 3.1 to 3.15. Then fit all remaining
bed liner hardware.
1.68) Once fitted the rear and front brackets should
look like that in the pictures opposite if fitted
with this bed liner.
