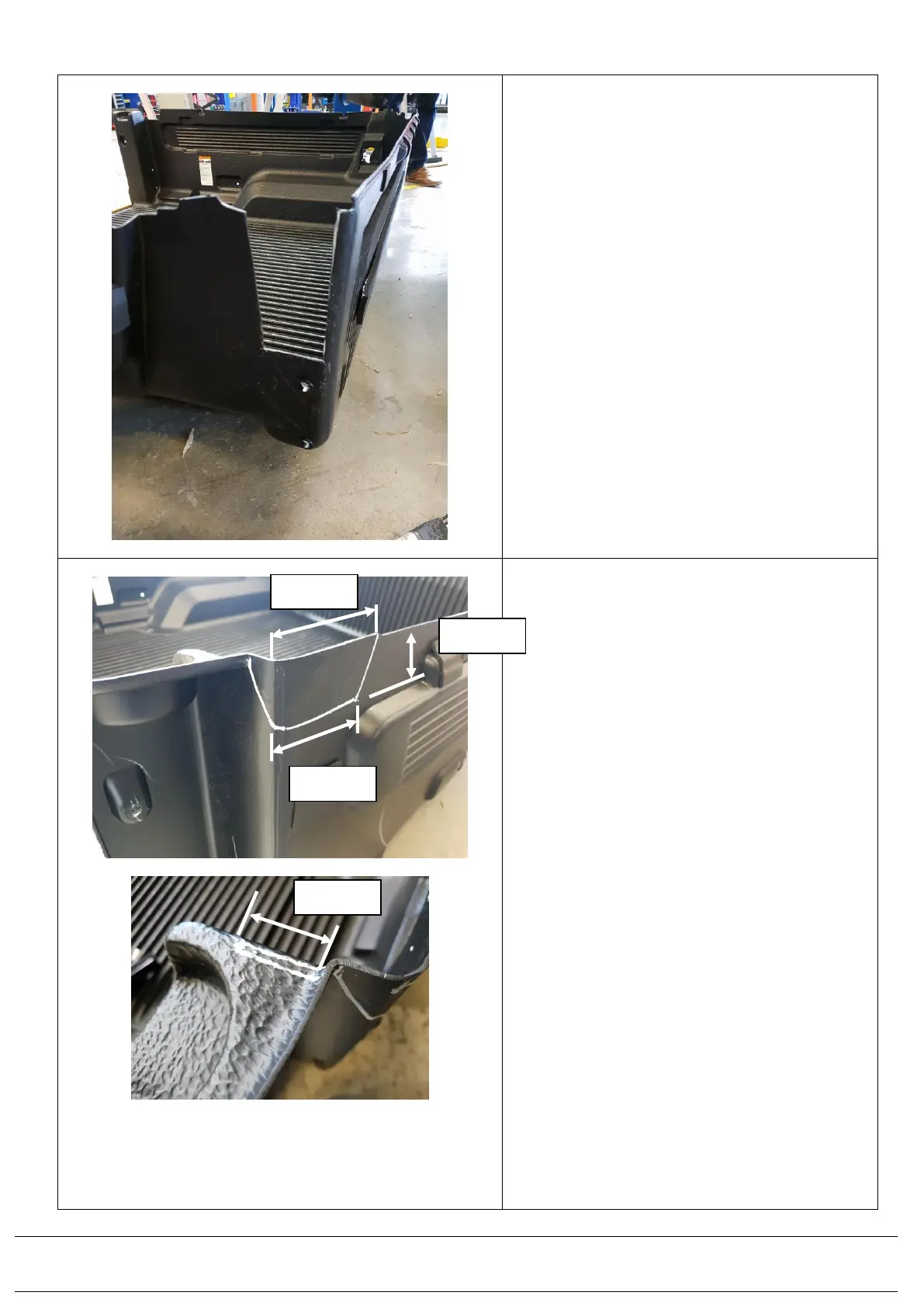

1.65) Trim the bed line out along the marked lines
and clean up swarf on the part.
The finished cut out should look like as is
opposite at this point.
Repeat this on the opposite corner in
mirror image
1.66) Mark out the top left corner of the bed liner as
shown.
For the 38mm long slot in the cup holder
region cut this to 6mm wide from the inside
face of the bed liner.
Repeat this on the opposite corner in
mirror image
