SECTION 5: FITTING THE CANOPY

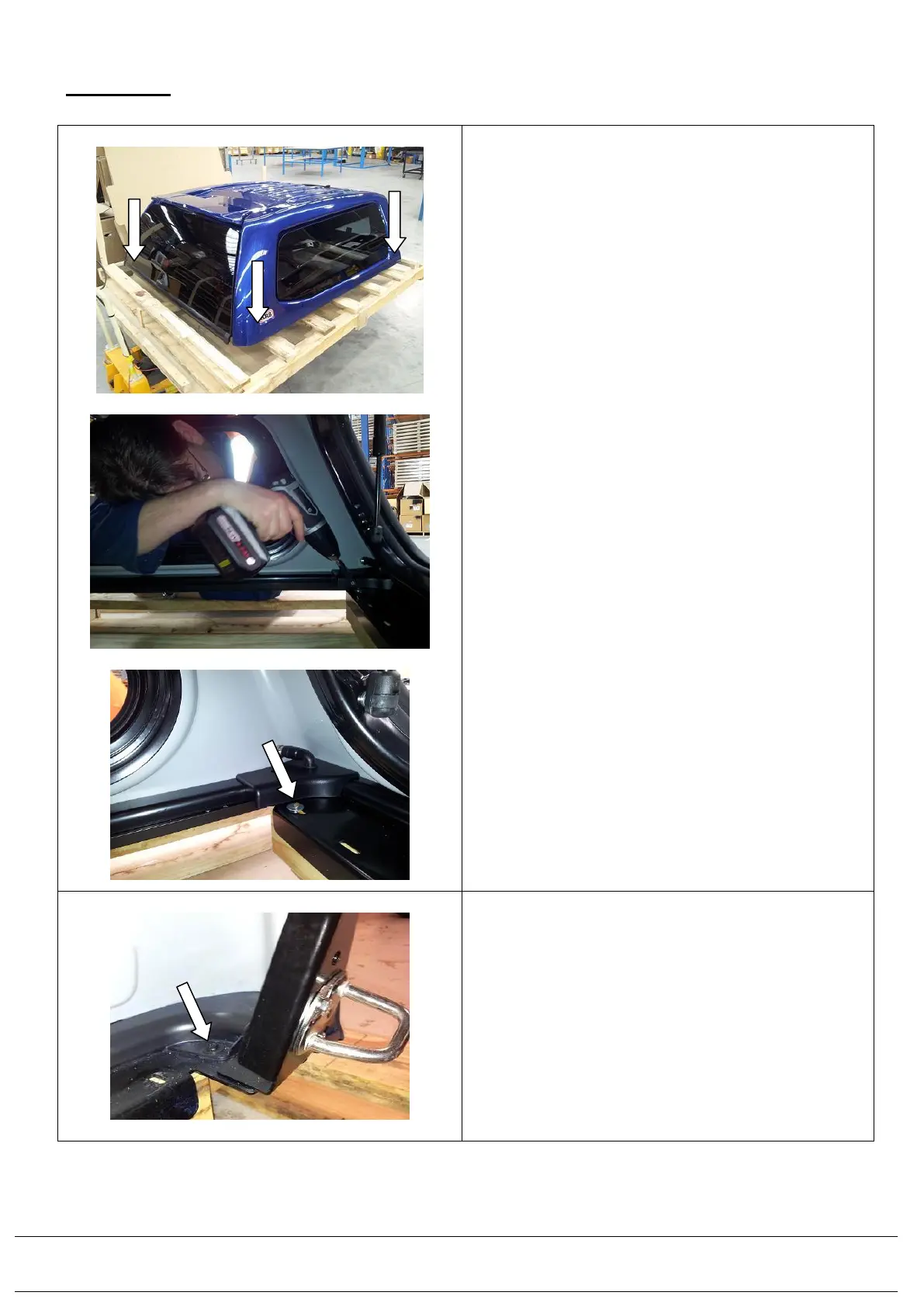

5.0) Unscrew the canopy on the pallet by removing the 4
wood screws in each corner. Gain access to screws
via opening the rear door and front lift up window.
The front lift up window can be unlatched by
reaching in underneath and pushing forward on the
glass in car position to push the latch button
upwards on both latches to unlock the window.
5.1) With the rear door of the canopy open, unscrew the
M6 x 25 screw and nut retaining the plastic injection
moulding on the inside LH rear corner of the
canopy. Retain the screw, flange nut and
washers for re-use.
Repeat on the RH side of the canopy.
