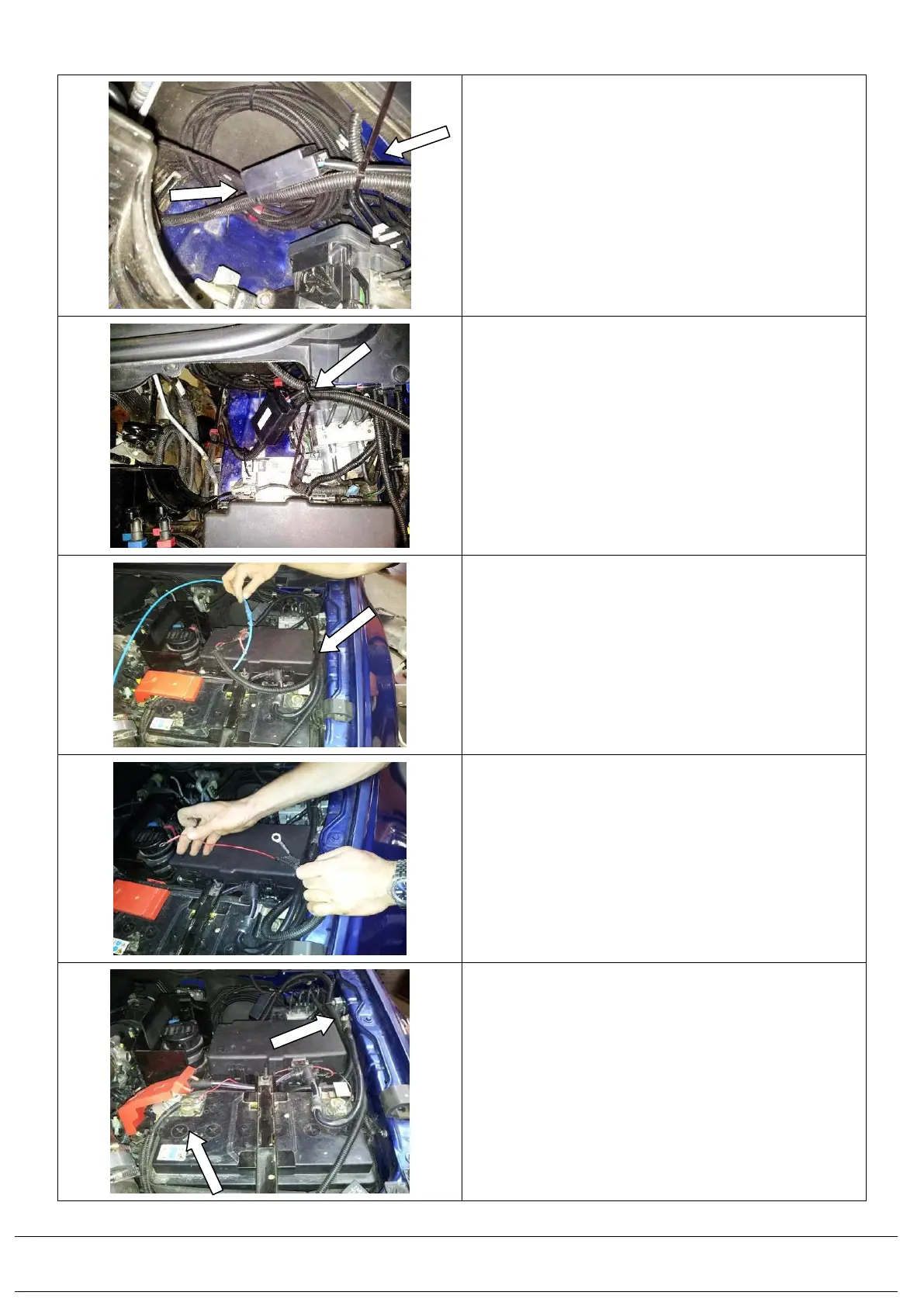

4.27) Cable tie with 200mm long cable ties the vehicle
relay box to the canopy wiring harness, above
and below the box, to secure it.
4.28) Cable tie with 200mm long cable tie the canopy
harness and vehicle relay box to the canopy to
the vehicle’s wiring conduit on the LH inner fire
wall below the windscreen wiper water deflector
moulding.
4.29) Remove the draw wire from the canopy loom and
tuck the canopy loom in next to the fuse box
under the other cable conduits.
4.30) Unravel the previously taped up eyelet battery
terminal end of the wiring harness.
4.31) Using a 10mm socket drive, connect the red wire
to the positive terminal on the battery and the
black wire to the negative terminal earthed to the
car.
