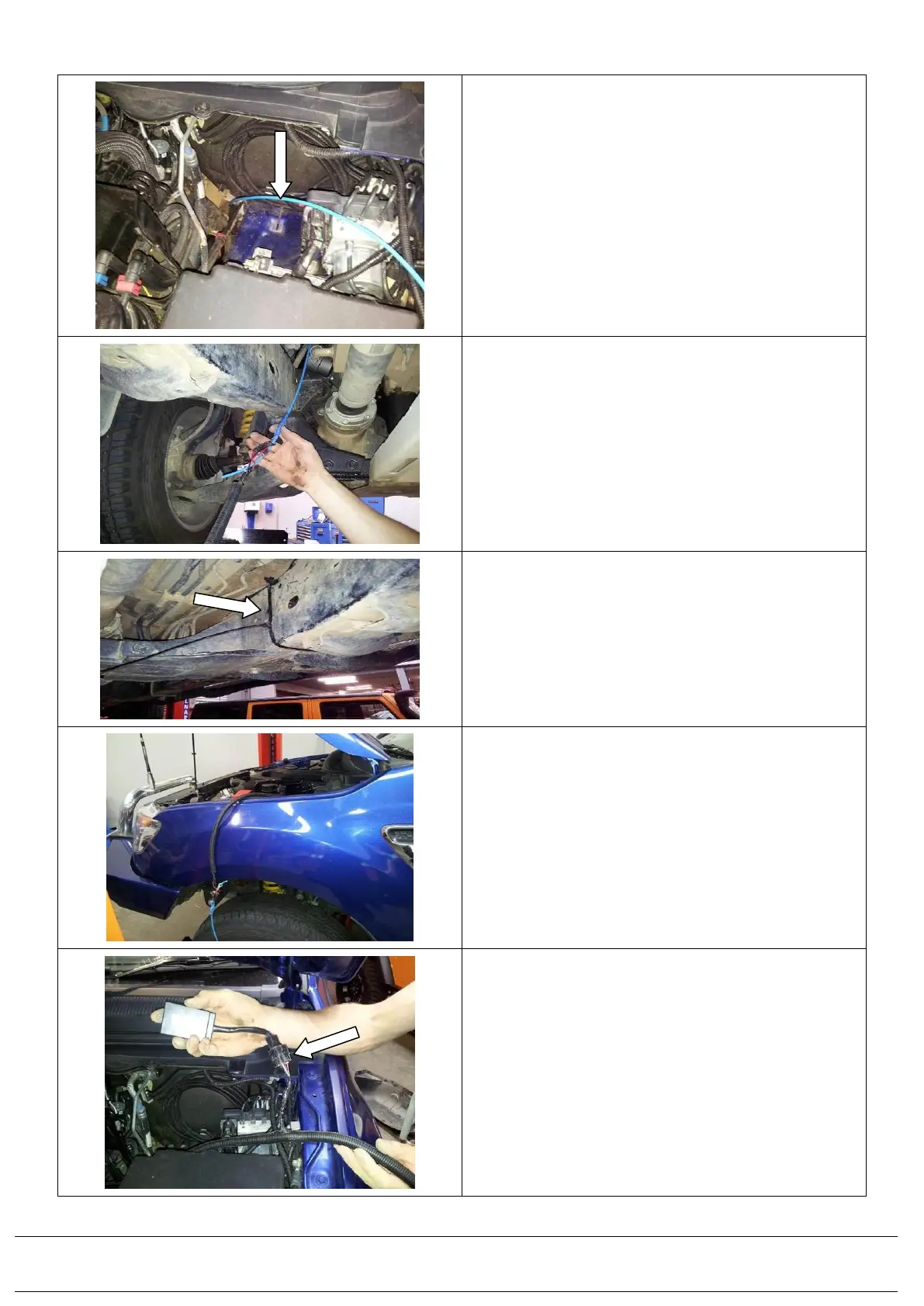

4.22) The position of the draw wire should be away
from moving parts and underneath any fuel lines,
brake lines, air conditioning pipes.
4.23) Underneath the vehicle, connect the battery
terminal end of the canopy loom to the draw wire.
4.24) Forward of the chassis cross member add a
600mm cable tie to hold the loom in place on top
of the chassis rail before the loom enters the
engine bay.
4.25) Pull the canopy wiring loom up into the engine
bay.
4.26) Connect the vehicle relay box (668PJ015) to the
connector on the canopy wiring harness.
