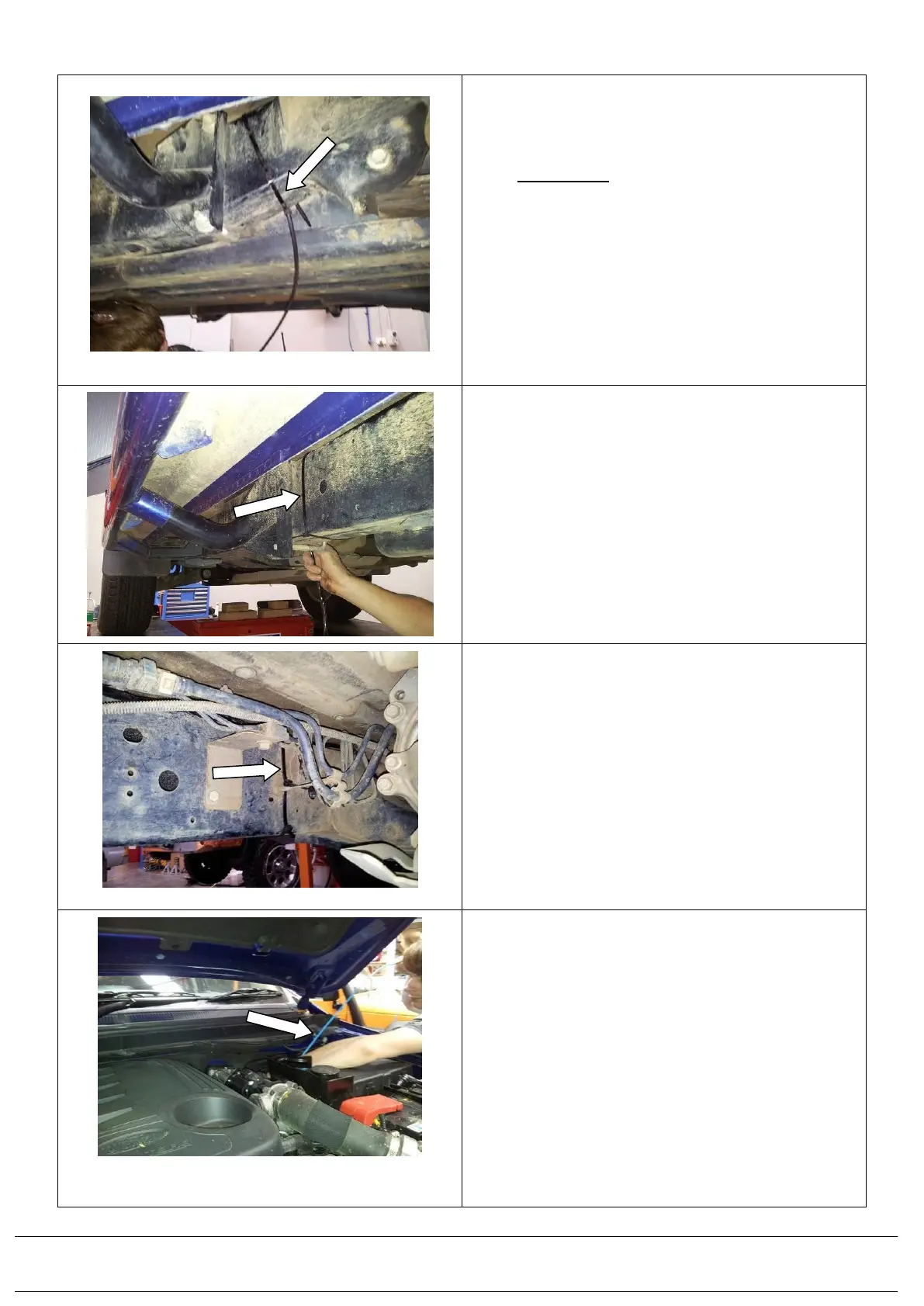

4.18) Using a 600m long cable tie, secure the loom to
the top of the LH chassis mount rail just forward
of the fuel tank.
IMPORTANT. Ensure vehicle wiring is placed
away from exhaust system and is not cable
tied to brake lines, fuel lines or moving
components or between flexible mounts.
4.19) Using a 600m long cable tie, secure the loom to
the top of the LH chassis mount rail at the mid-
point.
4.20) Using a 600m long cable tie, adjacent to the
transmission, tie off the canopy loom above the
LH chassis rail.
4.21) Open the bonnet. Feed a plastic coated draw wire
down inside next to the LH side fire wall.
