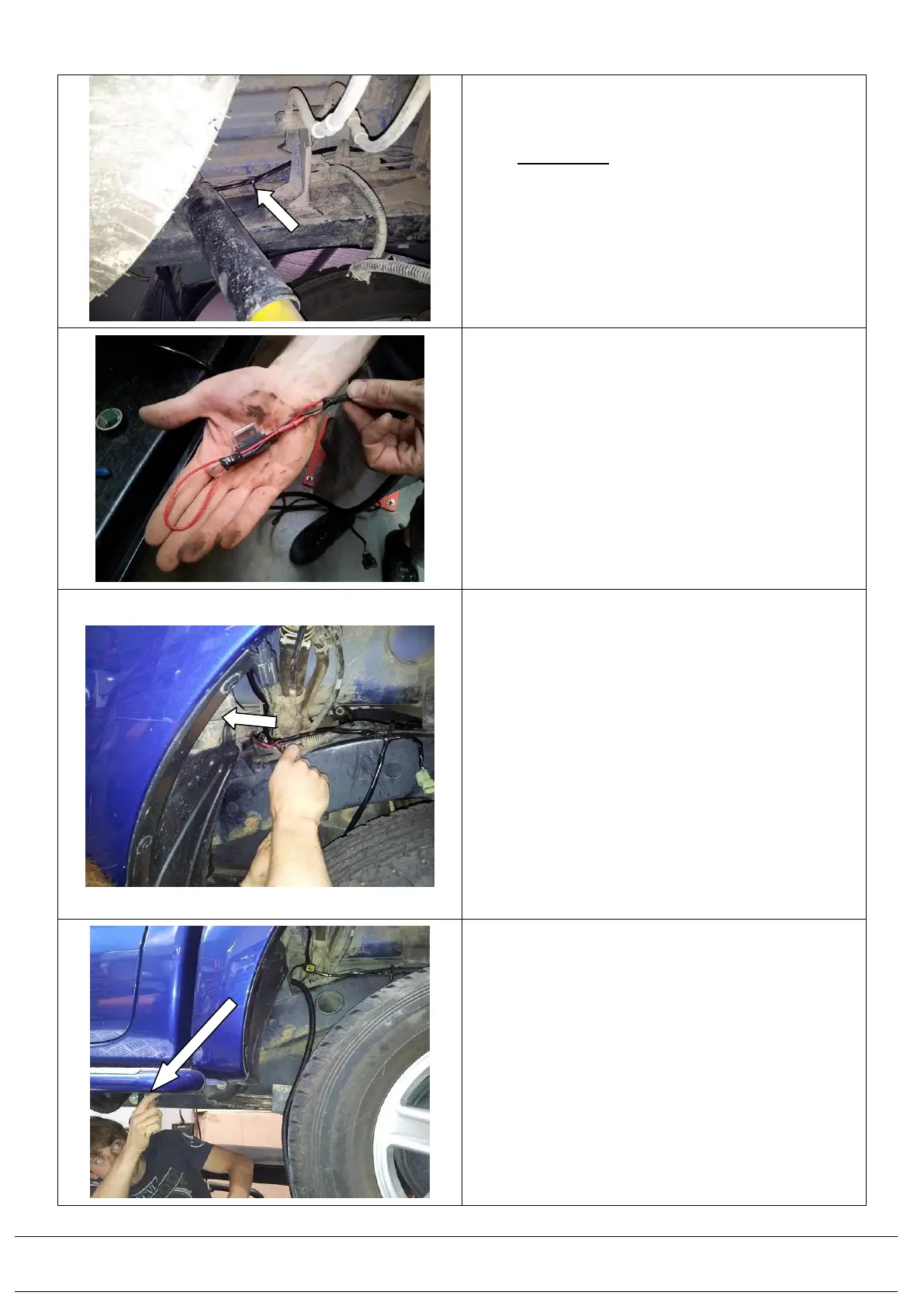

4.14) Forward of the spare wheel, cable tie the loom off
on top of the chassis rail the vehicle’s loom.
IMPORTANT. Ensure vehicle wiring is placed
away from exhaust system and is not cable
tied to brake lines, fuel lines or moving
components or between flexible mounts.
4.15) Prepare the front battery terminal end of the
canopy wiring harness as shown opposite, to tape
the eyelet terminals down, this is to aid with
threading through the canopy wiring harness to
the front of the vehicle.
4.16) Thread the battery terminal end of the wiring
harness, towards the front of the vehicle, along
the top of the LH chassis rail via the LH wheel
arch.
4.17) Pull the loom through above the fuel tank and
along the top of the LH chassis rail.
