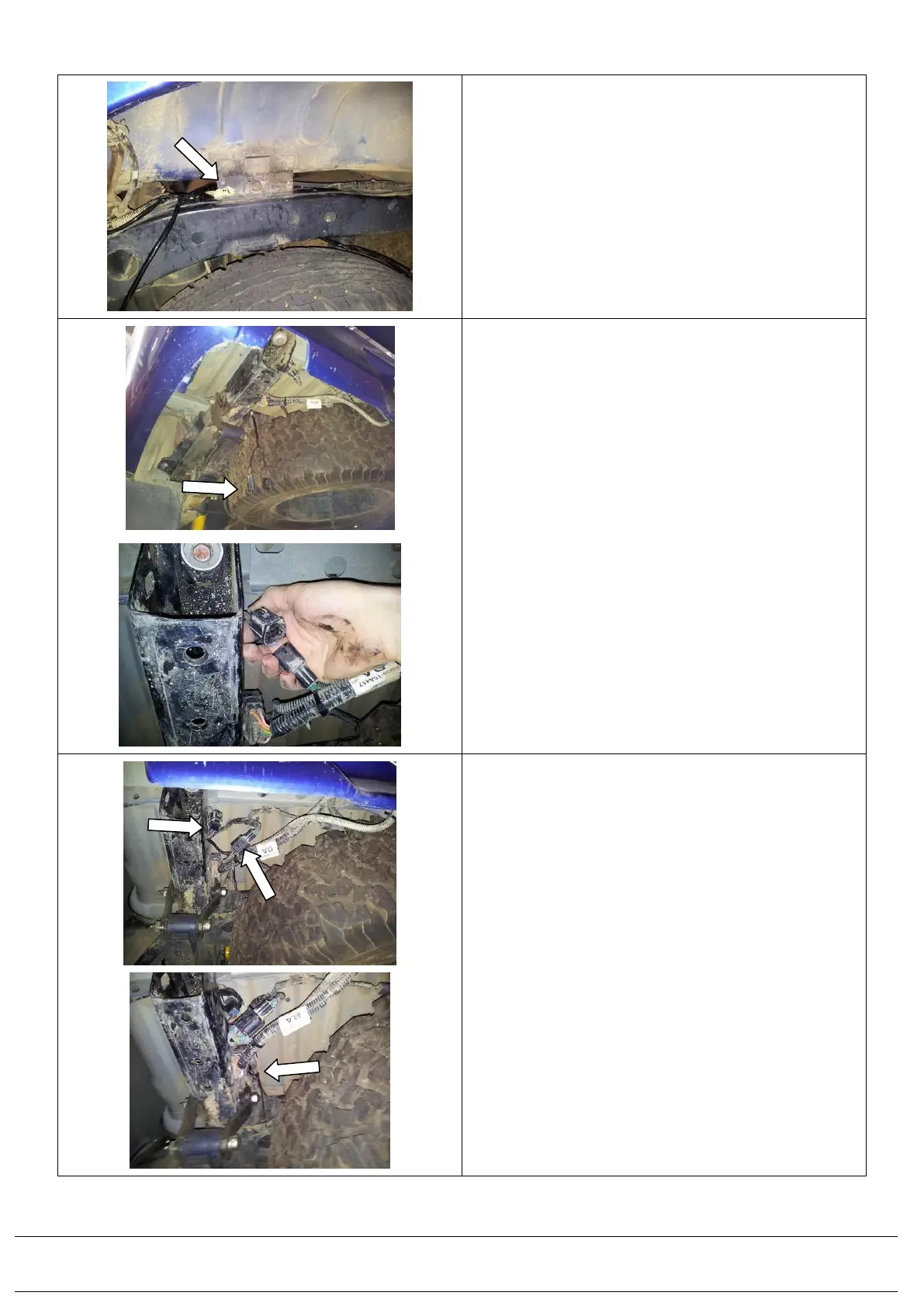

4.10) It is now best to fit the wiring loom with a vehicle
on a vehicle hoist lift. Bring the rear connectors of
the canopy harness to the LH rear underside of
the vehicle’s tub.
4.11) Disconnect the vehicle’s wiring harness
connector as shown on the inside of the LH
chassis rail at the rear of the chassis rail.
4.12) Connect the canopy loom’s male connector into
the removed vehicle loom’s connector on the
chassis rail and connect the female connector to
the vehicle’s wiring harness.
4.13) Cable tie off the canopy wring loom here with a
200mm cable tie, to the vehicle’s wiring loom.
