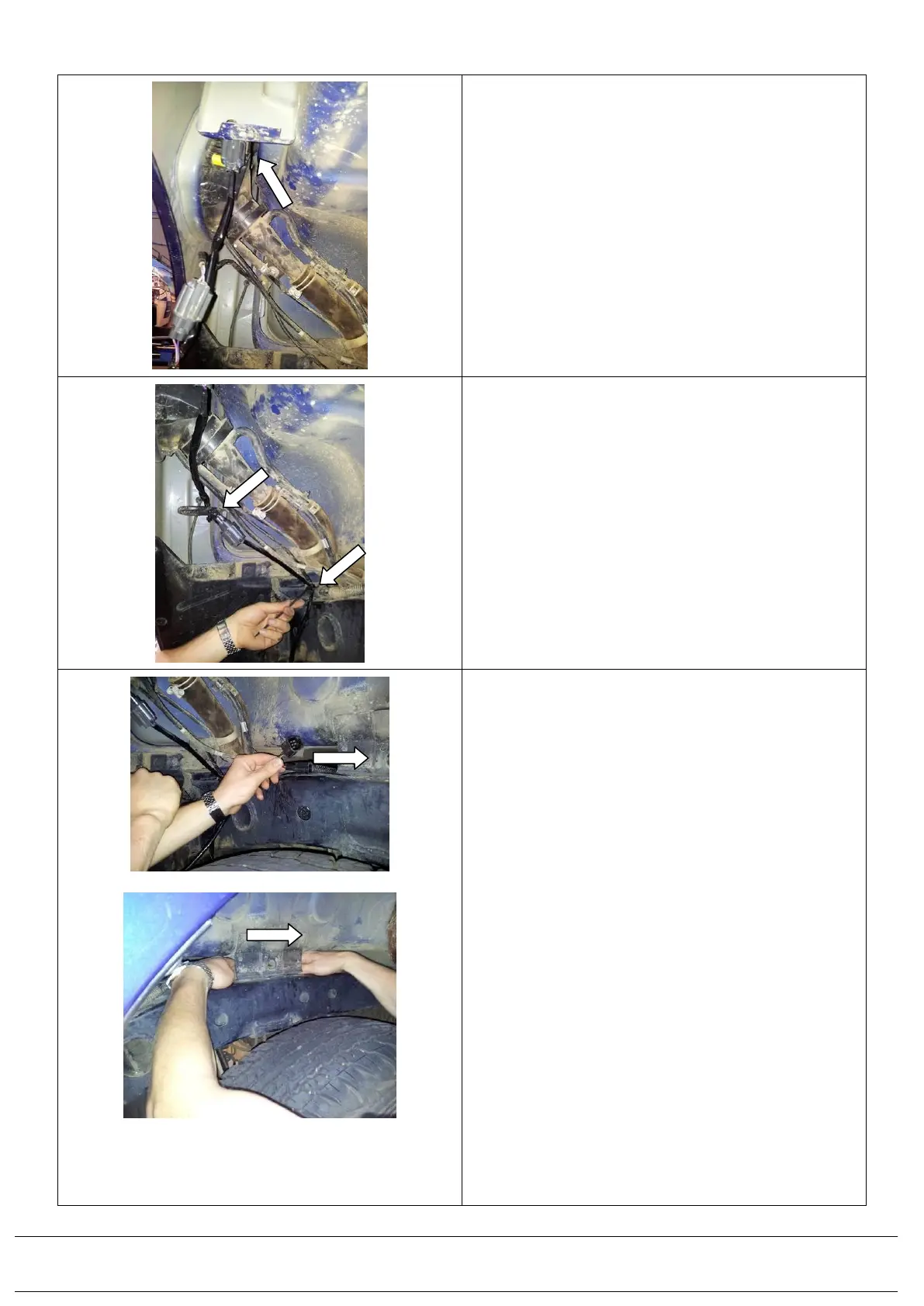

4.6) Reconnect the fuel filler door actuator motor back
into its original position by turning it in ant-
clockwise.
4.7) Using 200mm long cable ties, tie the connector
back inside the wheel arch and the wiring loom
back to the vehicles main wiring loom on top of the
chassis rail.
4.8) Using the connectors at the rear end for the canopy
harness, thread these in over the top of the
vehicle’s LH chassis rail and towards the back of
the vehicle.
4.9) Ensure the small white connector stays forwards of
this bracket on the vehicle in the wheel arch area.
