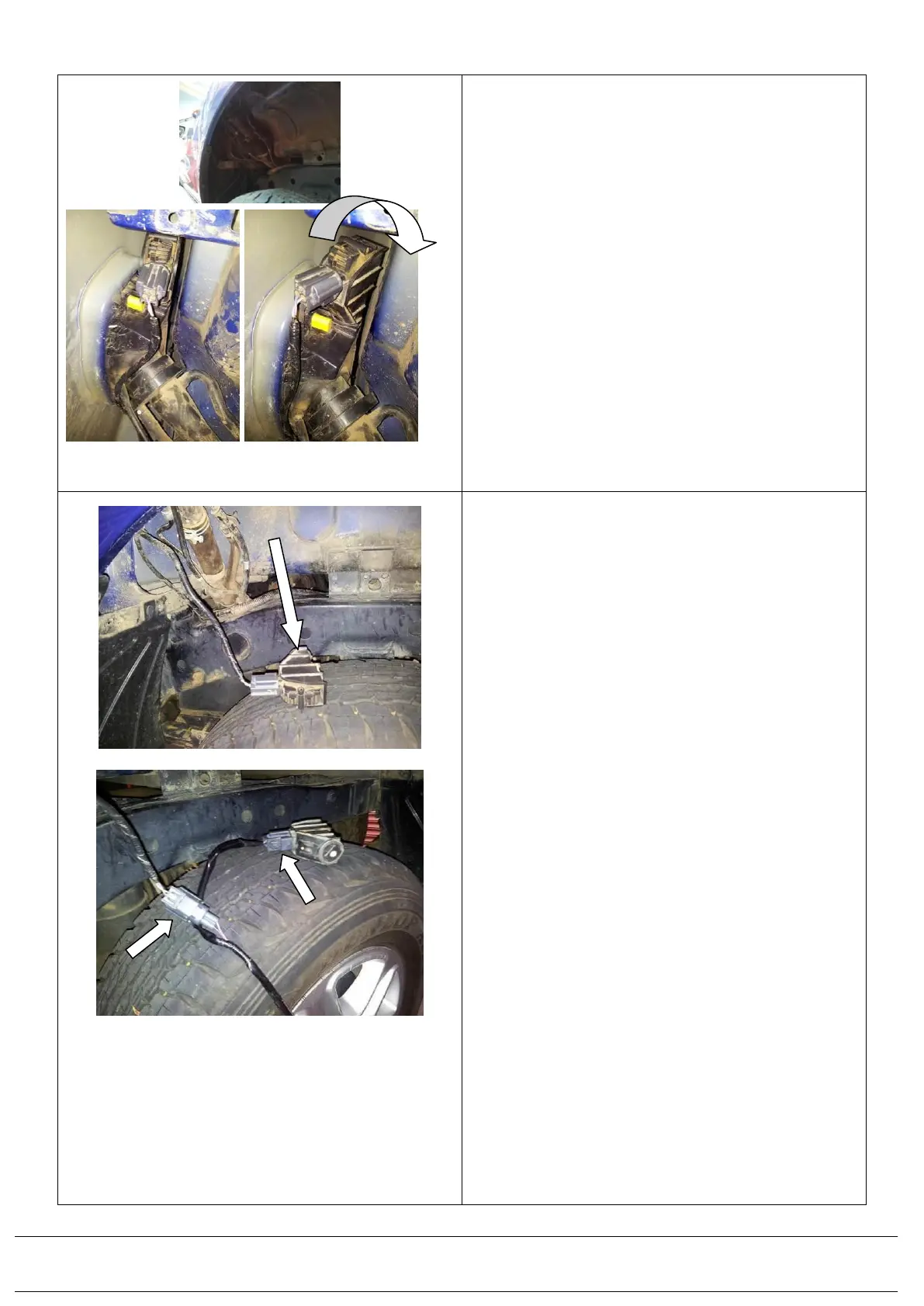

4.3) Up under the LH wheel arch locate the fuel filler
door actuator motor. Turn the motor housing
clockwise towards the outer skin of the vehicle’s
tub to unclip it.
4.4) Lower the fuel filler door actuator motor down onto
the top of tyre. Disconnect it’s connector.
4.5) Connect canopy vehicle harness (668PJ012)
female connector to the fuel filler door actuator and
connect the male connector to the vehicle’s original
connector. (The connectors to be connected are
the 2
nd
lot in from the rear end of the canopy
harness 668PJ012).
