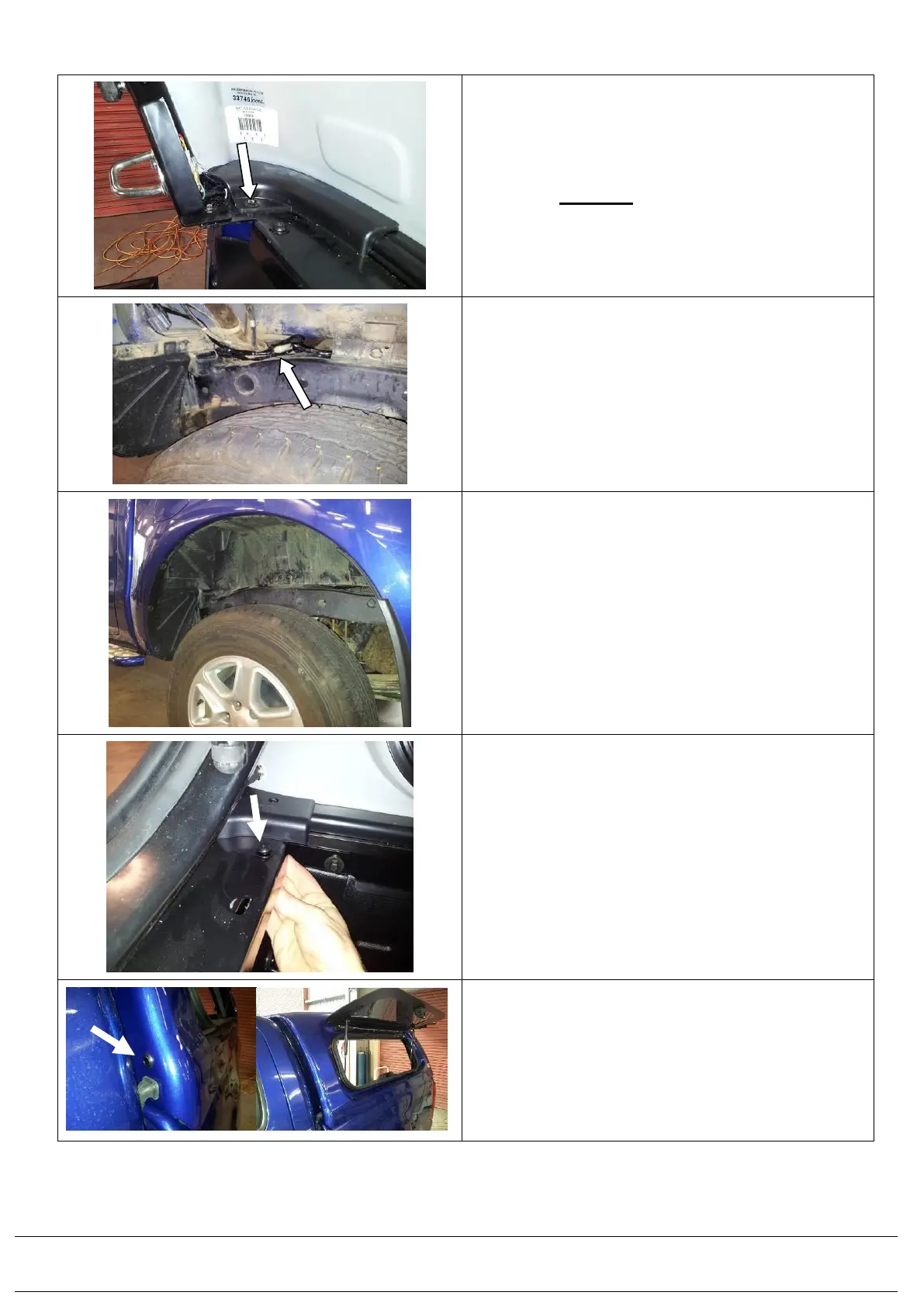

5.19) Using the retained M6 x 25 screw, M6 washer,
and M6 larger washer on the bottom and M6
flange nut, screw the corner wing on the injection
moulded corner piece down through the rear
corner tub mounting bracket on the inside and do
up to 7Nm only.
Repeat on the opposite side of the canopy.
5.20) Roll the remaining harness up in the LH wheel
arch and secure with a 200m cable tie behind the
wheel arch liner.
5.21) Refit the wheel arch liner with 9 scrivets retained.
Wiring is now complete.
5.22) Using M8x25 Torx pan head screw and M8x19mm
(smaller) washer screw the canopy down at the
front tightly through the canopy mount rail holes to
the front corner tub mounting brackets with an M8
nyloc nut and M8x25mm (larger) washer on the
underside.
Do up to 22Nm.
Repeat on the opposite side.
5.23) Locate the push button switch, (if a lift up window
is fitted on the canopy), that is between the front of
the canopy and the vehicle’s tub.
Open the window.
Repeat on the opposite side if a double lift
window canopy is optioned.
