ARB AIRLOCKER RD136 - Parts List; Exploded Assembly Diagram; Specifications

7 Parts List
39

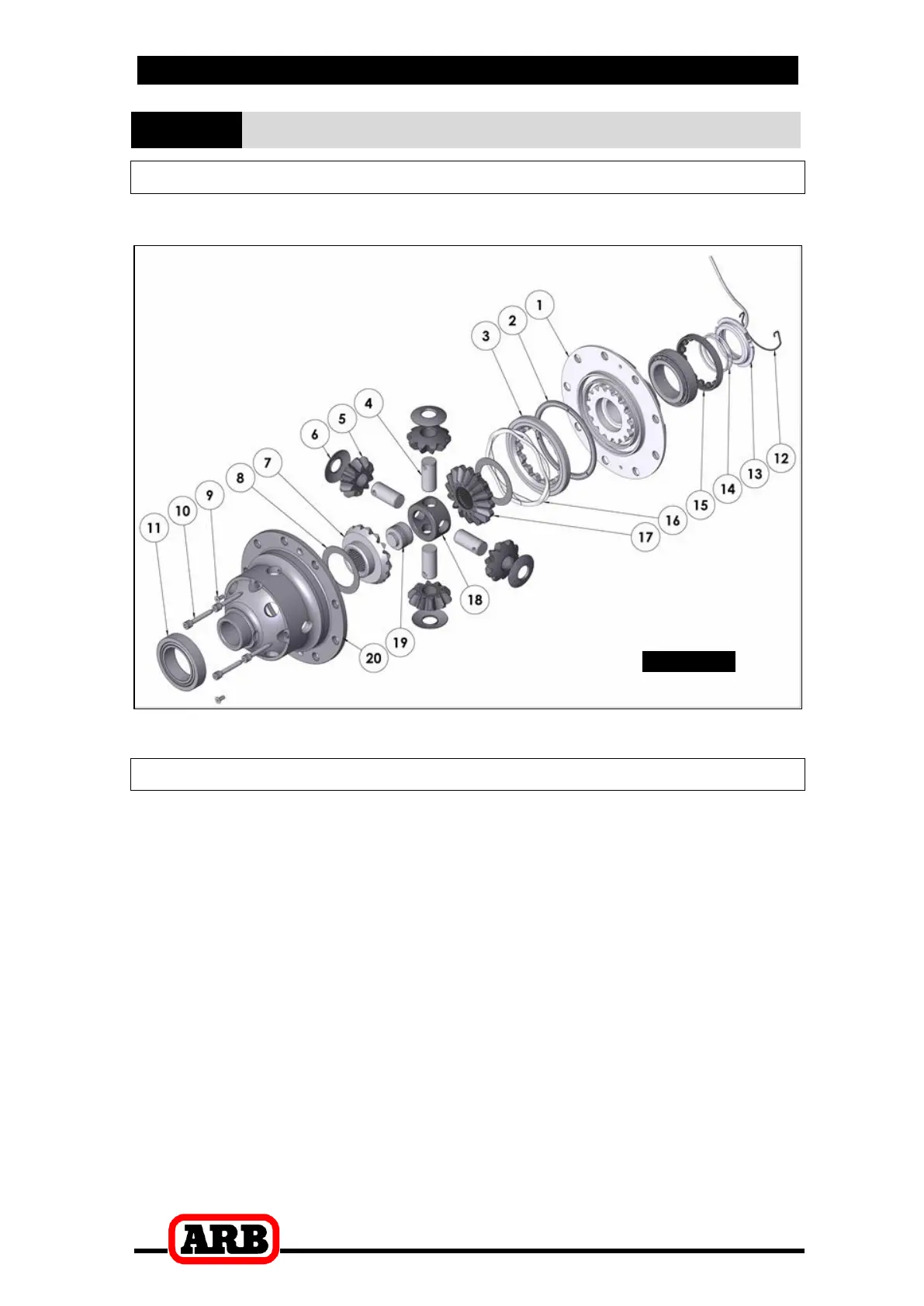

7.1 Exploded Assembly Diagram
(See itemized parts list overleaf)
Figure
27.
7.2 Specifications
RD136
Nissan H233B,31 SPL
Axle Spline
31 tooth, Ø32mm [1.26”]
Ratio Supported
All
Ring Gear ID
146.0mm [5.75”]
Ring Gear Bolt Size
12mm
Ring Gear Bolts
9 bolts on Ø176mm [6.93”]
Ring Gear Torque
142Nm [105 ft-lb]
Backlash
0.15-0.20mm [0.006-0.008”]
Bearing Cap Torque
99Nm [73 ft-lb]
