ARB AIRLOCKER RD136 - Connection to the Bulkhead Fitting

4 Installing the Air System
29
NOTE : To remove the air line from the push-in fitting; push
the air line as far into the fitting as possible and hold,
push inward on the flange, and then pull the air line
free of the fitting.
4.3 Connection to the Bulkhead Fitting
 Trim the air line to length using a sharp knife.
 Assemble an aluminium washer onto the banjo bolt and insert
through the banjo fitting. Assemble second aluminium washer and
tighten into bulkhead fitting using a 14mm [9/16”] spanner. (Fig.21.)
 Apply thread sealant to the tapered thread of the compression
fitting body and screw into the banjo fitting. Tighten using a 12mm
spanner.
 Insert the outer compression nut and ferrule over the air line.
Ferrule should be orientated as per Fig.21.

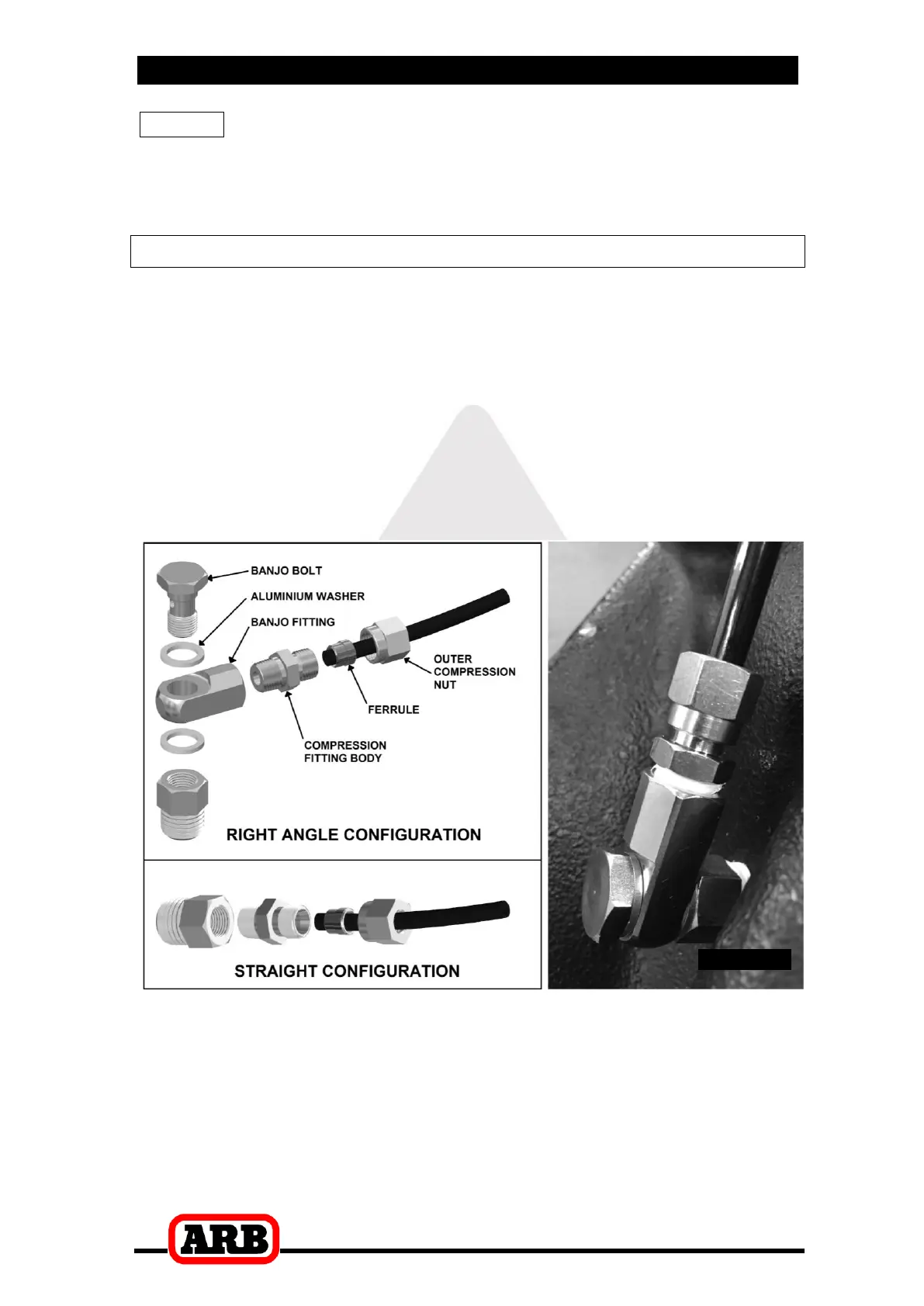

Figure
21.
