Now to sometimes the most difcult step. Mounting the motor into the front
forks.
ASSEMBLY—FRONT MOTOR
Familiarise yourself with the washers and their positions. Ensure that the torque
washers (which are the washers with a notch) are both on the same way on the
axle.

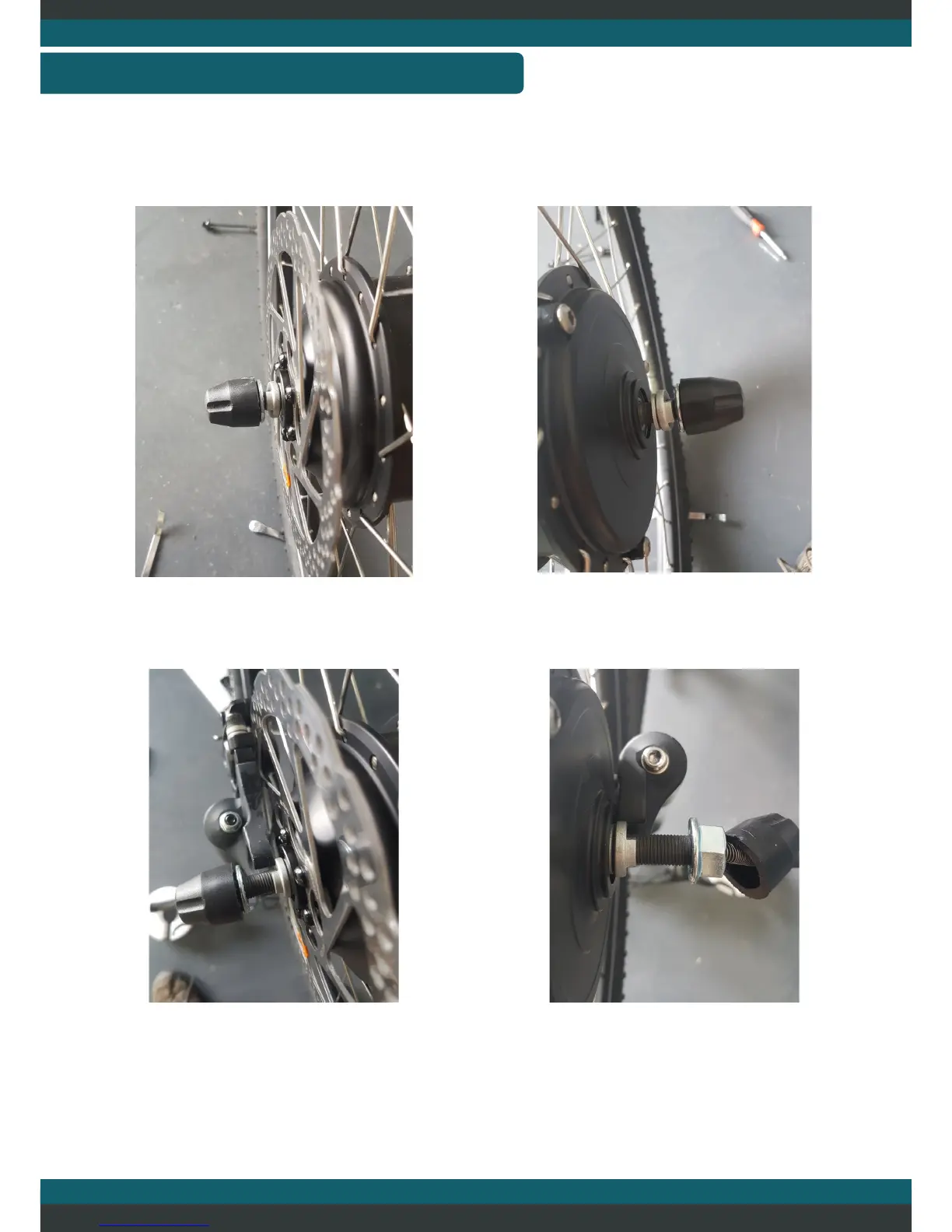

Line the torque washers up with the axle slots. As you can see in the right picture
the torque washer will not t in the axle slot with the current washer conguration.
So we will need to remove the internal washer from the setup so that the torque
washer is the only washer present on that side. This section is different for every
bike and will need some common sense to complete the install.
