Now that the bicycle has been prepared. The motor can be mounted on the
bicycle.
ASSEMBLY—FRONT MOTOR
First remove the motor from its packaging if you have not done this already. It is
at this point that you can remount the tyre and tube, just make sure you get the
direction right. This is generally marked on the side of tyre tube. The motor has a
cable coming out of the right side which may help you get the correct direction.

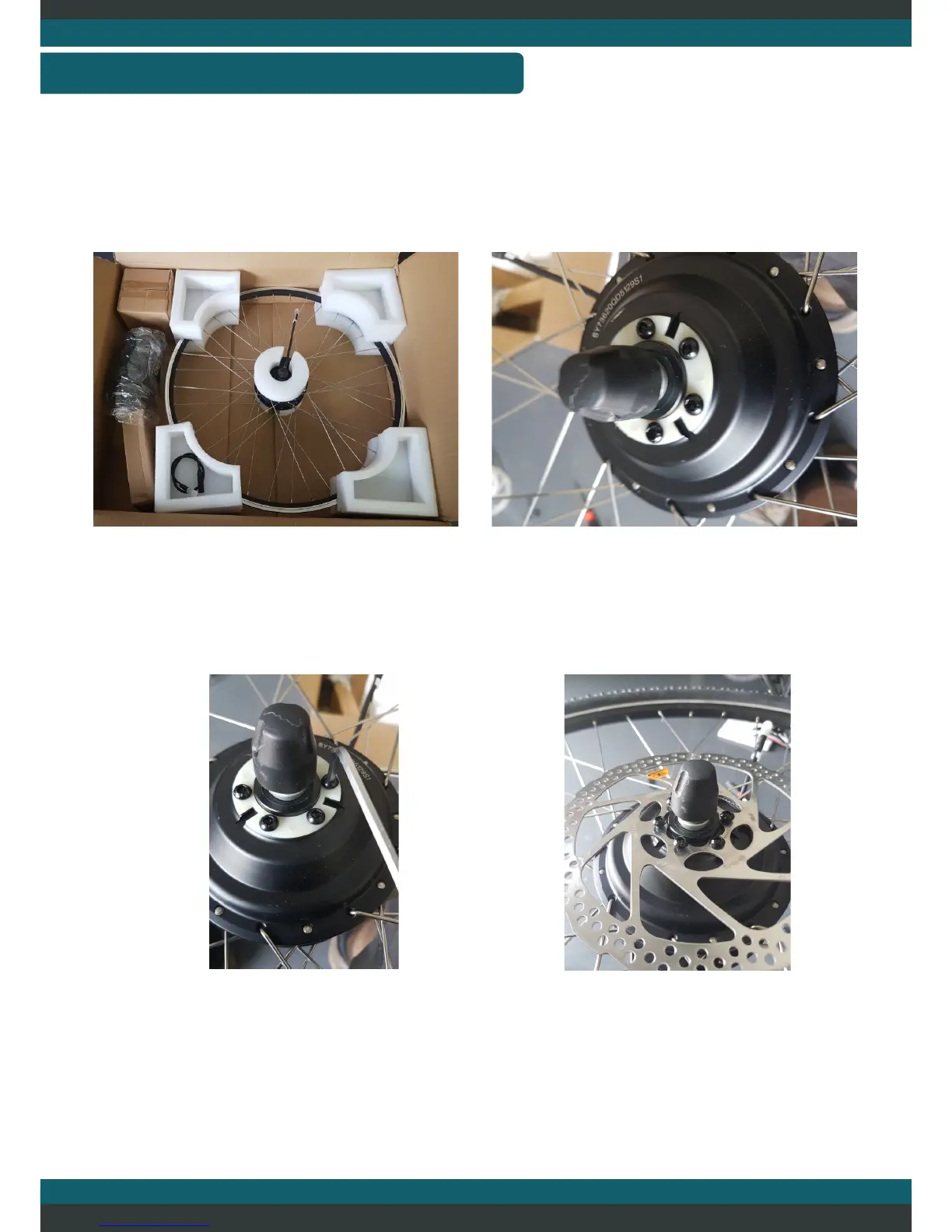

If you have removed a disk brake in the previous section you should remount it on
the motor now. To do this you can remove the allen key bolts from the motor as
shown above. The motor has a plastic spacer in the position of the disk brake as a
placeholder. Remove this and mount the disk brake in position. Be sure to tighten
the bolts evenly all the way round.
