This section will explain how to install your pedal assistance sensor to the
bicycle.
ASSEMBLY—PEDAL ASSISTANCE

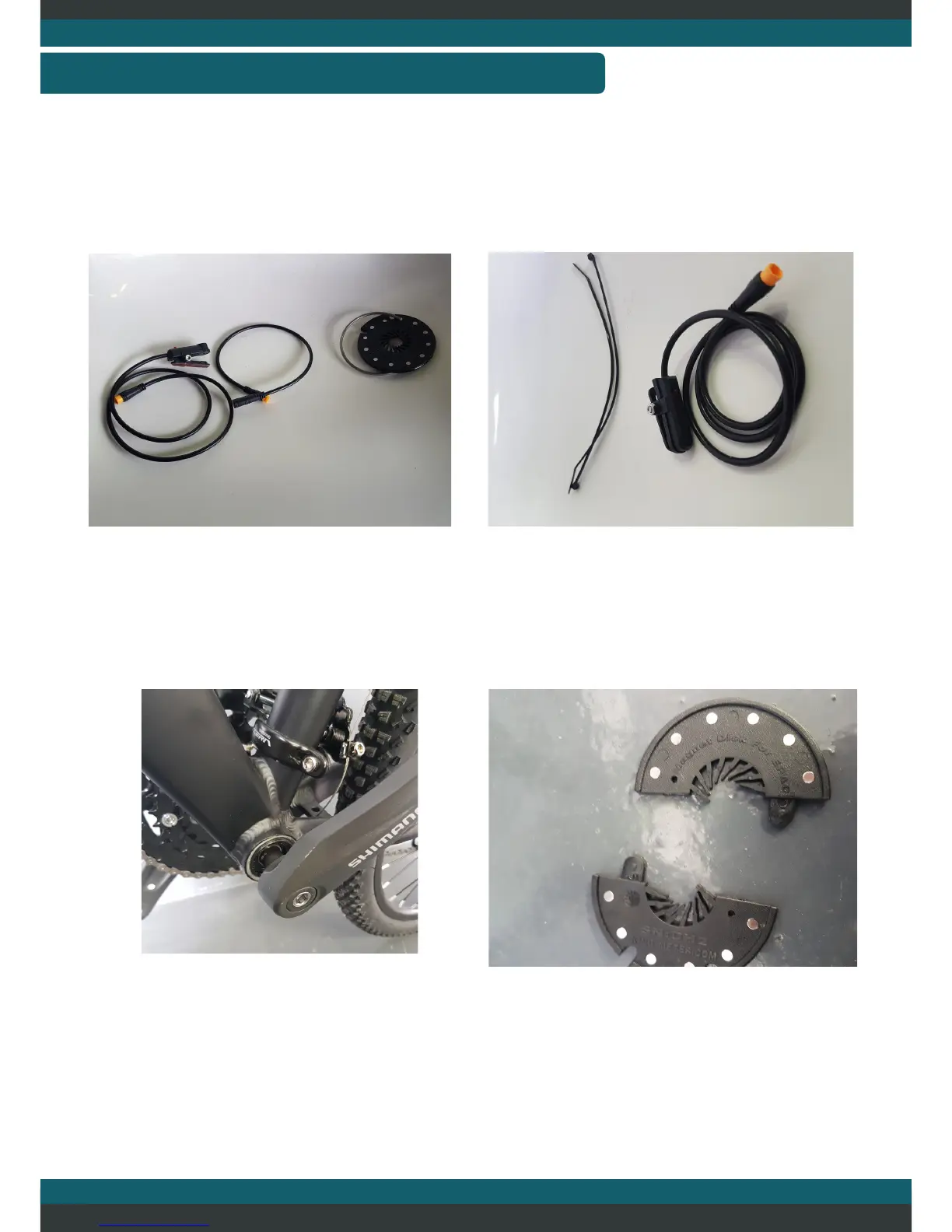

This above is pictured the pedal assistance sensor (PAS) and the magnet wheel.
The magnet wheel will attach around the bottom bracket crank shaft.
If you bottom bracket crack shaft looks similar to the one in the bottom left
picture, then you bike will be likely directly compatible with this pedal assistance
type sensor. The magnet wheel can be split in half so that you do not have to
remove the crank arm from the bicycle (requiring specialised tools). One side of
the magnet wheel is marked as the working side and is complete at. This side
will face the bike.
