USER MANUAL ARC
LAST UPDATED: 6/01/2017 19
ASSEMBLY—PEDAL ASSISTANCE

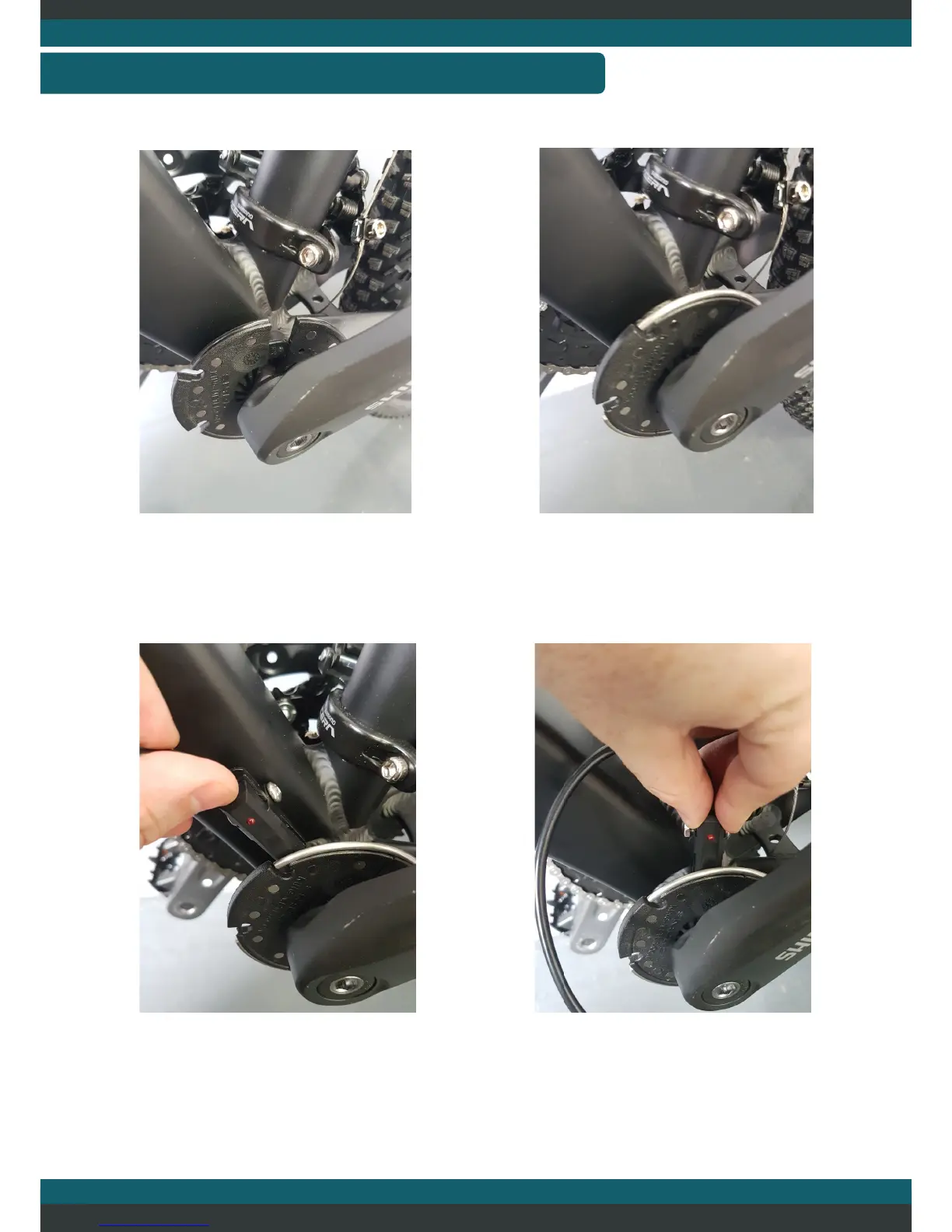

Clip to the two halves of the pedal assistance sensor around the crank shaft as
shown, with the working side facing the bicycle. Then attach the metal circlip
around the magnet wheel securing it in place. This magnet wheel should rotate
with the pedals, when the pedal cranks are rotated.
Now to t the PAS. The PAS can mounted anywhere on the frame so that the
sensor lines up with the magnets on the magnet wheel. In this case the PAS tted
the best on the diagonal down tube pictured in the bottom left photo.
