Another problem observed is the calliper is slightly rubbing against the disk.
ASSEMBLY—FRONT MOTOR
To solve this situation the brake calliper was loosened up before readjusting the
washer positions so that the axle will correctly slot into the front drop outs.

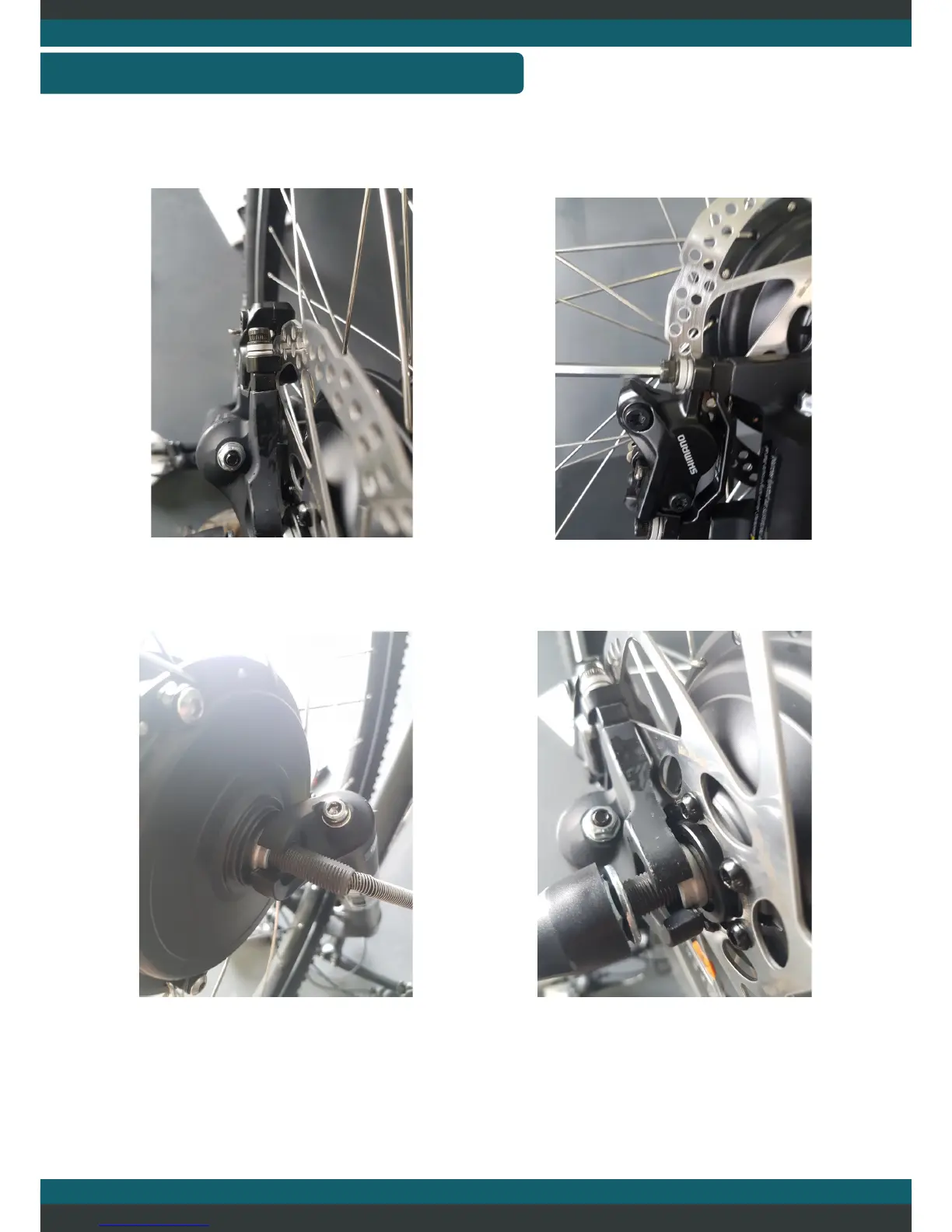

As you can see from the bottom two pictures the motor has been mounted into
the front forks with enough clearance for the disk brake and the motor inside the
forks. So now the motor can spin in the drop outs without rubbing on the disk
brake calliper or the frame in anyway.
