2 INSTALLATION INSTRUCTIONS
2.1 DIFFERENT VENTING OPTIONS:
PIXEL 25 F, PIXEL ES 25 F, PIXEL IN 25 F, PIXEL 29 F
Proof chamber heaters do not require particular caracteristics as for siting and installation
are concerned.
Take particular attention to discharge and aspiration unions in order to avoid combustion
product leakage.
Use only original spare parts.

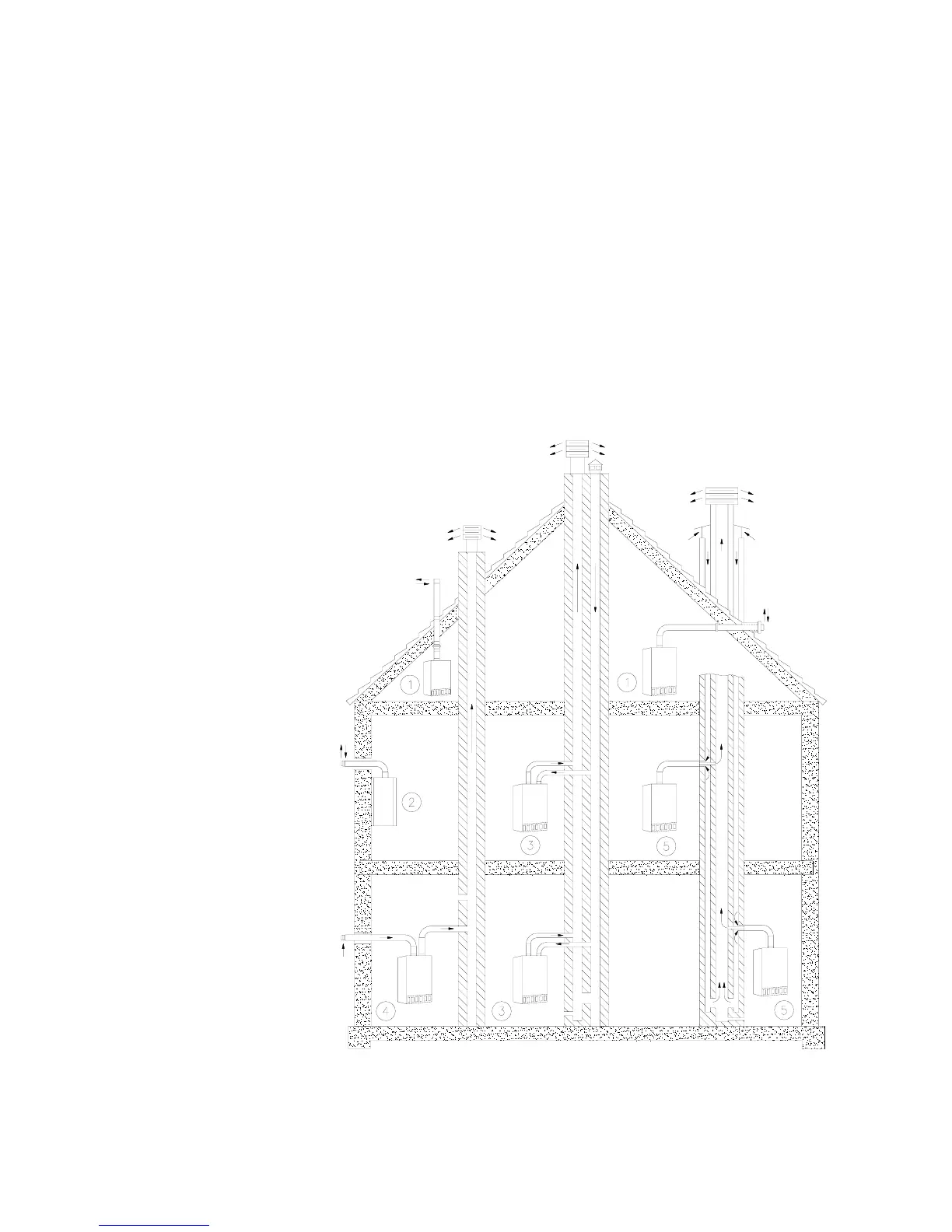

2.1.1 Different venting options - Flue Venting
1. Coaxial vent through the roof
2. Coaxial through the wall
3. Split type venting between two
cheminey
4. Split type, discharge into a
cheminey, fresh air from outdoor
wall
5. Coaxial, connection
with coaxial cheminey
CAUTION! - Follow local regulations concerning draught terminals location from windows
and doors.
13
