ARCA PIXEL 25 N - Length of Flue Gas Duct: PIXEL 25 F, ES 25 F, IN 25 F

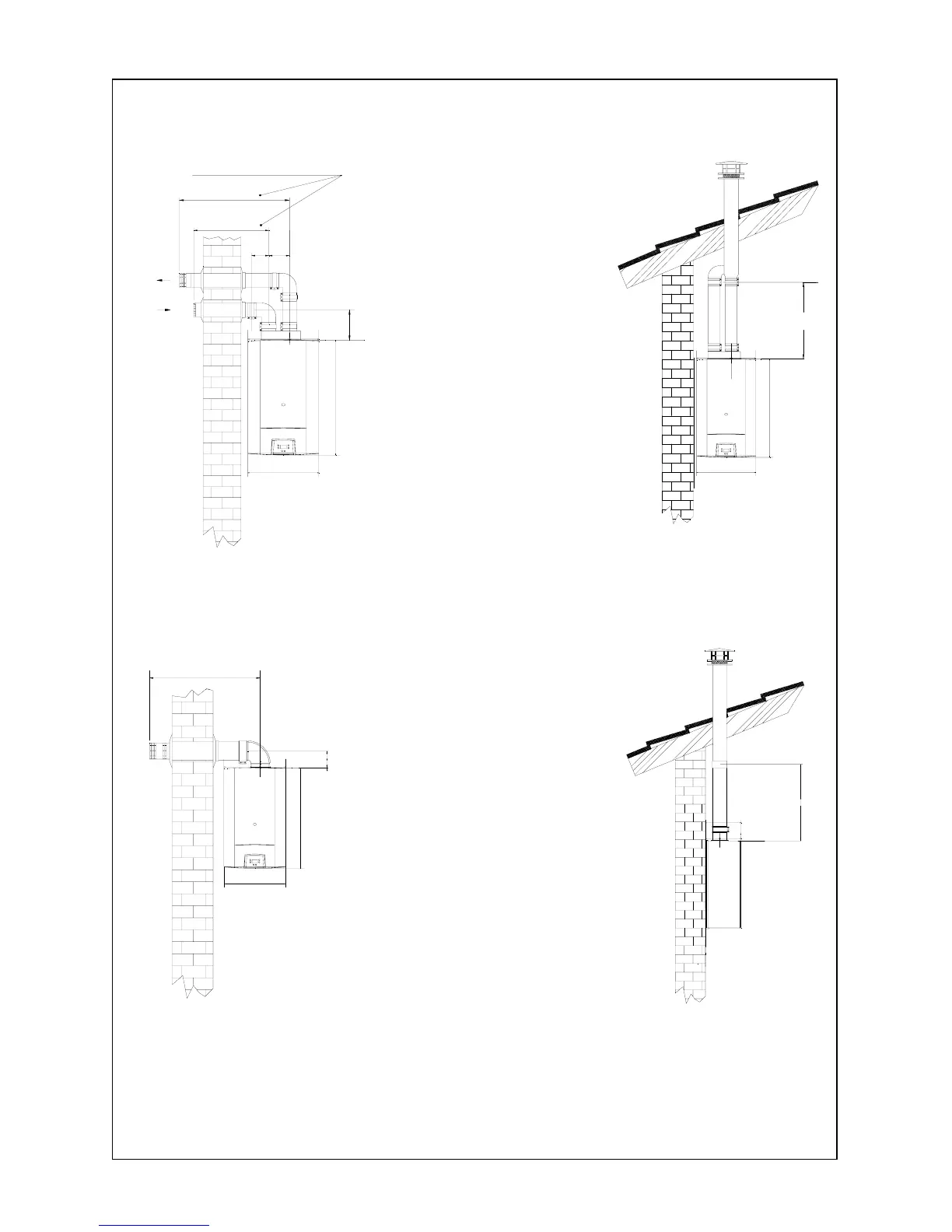

2.1.2 LENGTH OF FLUE GAS DUCT:
PIXEL 25 F, PIXEL ES 25 F, PIXEL IN 25 F
2.1.2.1 SPLIT FLUE
Ø 80 mm
N.B.: The flue and
aspiration duct lenght has
not to exceed 16 m.
For every added 90°
elbow the maximum
allovable lenght is to be
diminuished by 2 m.
Horizontal aspiration and
discharge duct are to be
placed slightly inclined
towards the outside.
2.1.3.2 COAXIAL FLUE
Ø 60 x 100 mm
N.B.: The allowed lenght of coaxial
ducts varies between to 0,5 ms
minimal lenght and to 4 ms maximal
lenght.
By 0 to 1 meters length the
presence is necessary of a
diaphragm Ø 44 in the outlet
of the fan.
By 2 to 3 meters length the
presence is necessary of a
diaphragm Ø 46 in the outlet
of the fan.
Horizontal aspiration and
discharge duct are to be
placed slightly inclined
towards the outside.
14
MAX 15 m
MAX 15 m +
105 120
1
7
5
400
235
6
5
0
165
STRAGHT ON
400
6
5
0
235 165
MAX 15 m
103 157
260
MAX 4 m
235 165
1
0
0
400
6
5
0
MAX 4 m
