ARCA PIXEL 25 N - Users Instructions; Control Panel Overview

4. USER’S INSTRUCTIONS

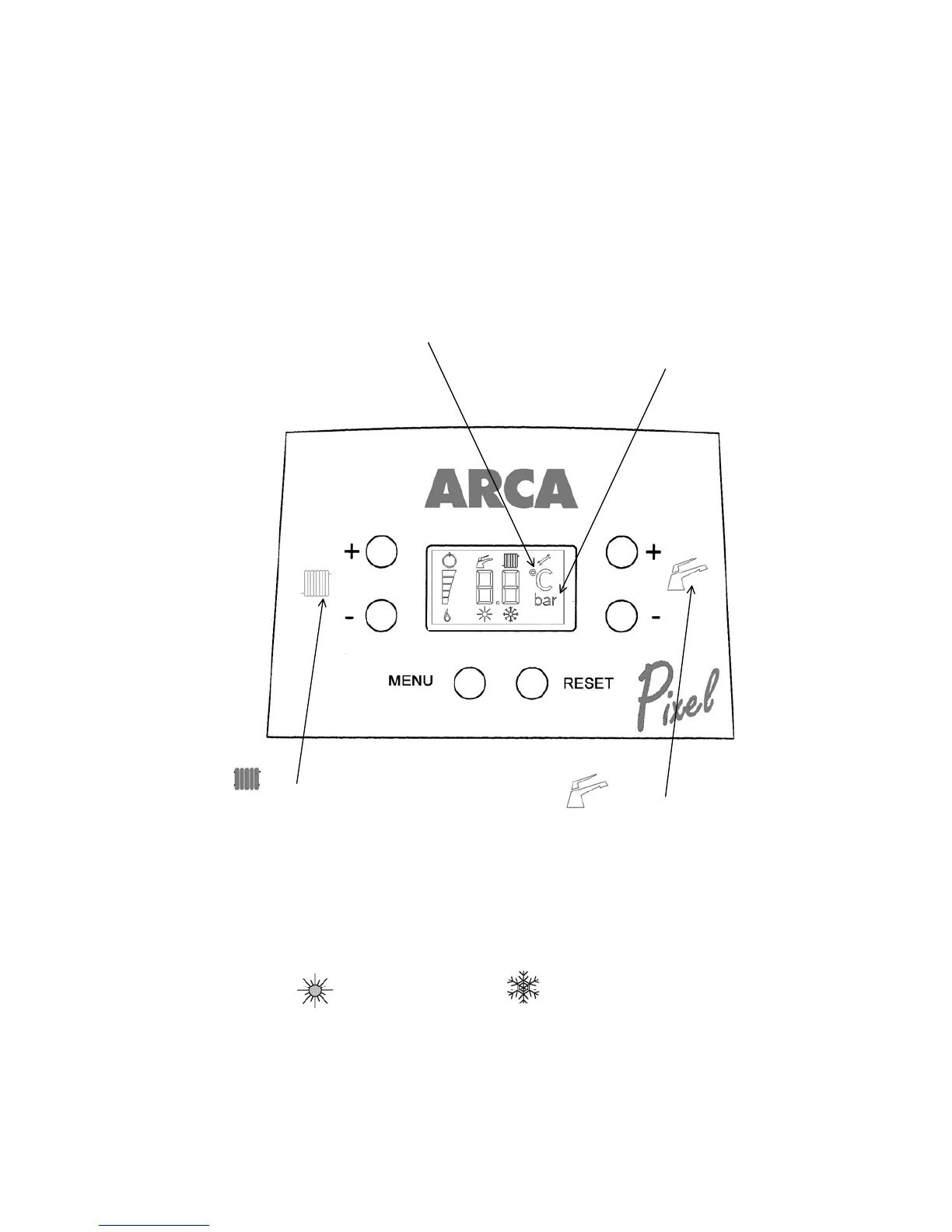

4.1 CONTROL PANEL
Thermometer:
Through the
thermometer it is
possible to verify the
temperature of run of
the circuit of heating,
previously planned
through the relative
regulator.
Manometer:
It visualizes the pressure
of the heating water; the
value of such pressure
doesn't have to be
inferior to
0,8. 1 bar (
cooled down
circuit
).
If the pressure had to be
inferior to
\ \0,8. 1 bar (
cooled down
circuit
).
,
it is necessary to handle
the restoration of the
correct value acting on
the charge valve. This
operation must be
performs
cooling down
circuit
.
.
Regulator temperature
domestical water:
The function of this handle
grip is to fix the value of
the temperature of use of
the domestical water;
acting counterclockwise in
sense the lowest value of
the temperature
impostabile is gotten
Regulator temperature of
heating:
Through this handle grip it is
possible to plan the
temperature desired of the
circuit of heating:
acting counterclockwise in
sense the lowest value of
the available temperature is
gotten
Summer Winter Reset
With the changer in position
Summer the boiler is
predisposed to run for the
onlyproduction of domestical
water.
With the changer in position
Winter the boiler is
predisposed to run both for
the heating that for the
production of domestical
water.
Bring the selector in
position of Rearmament
to reactivate the
operation of the boiler
after the intervention of
the device of block of
the burner.
26
