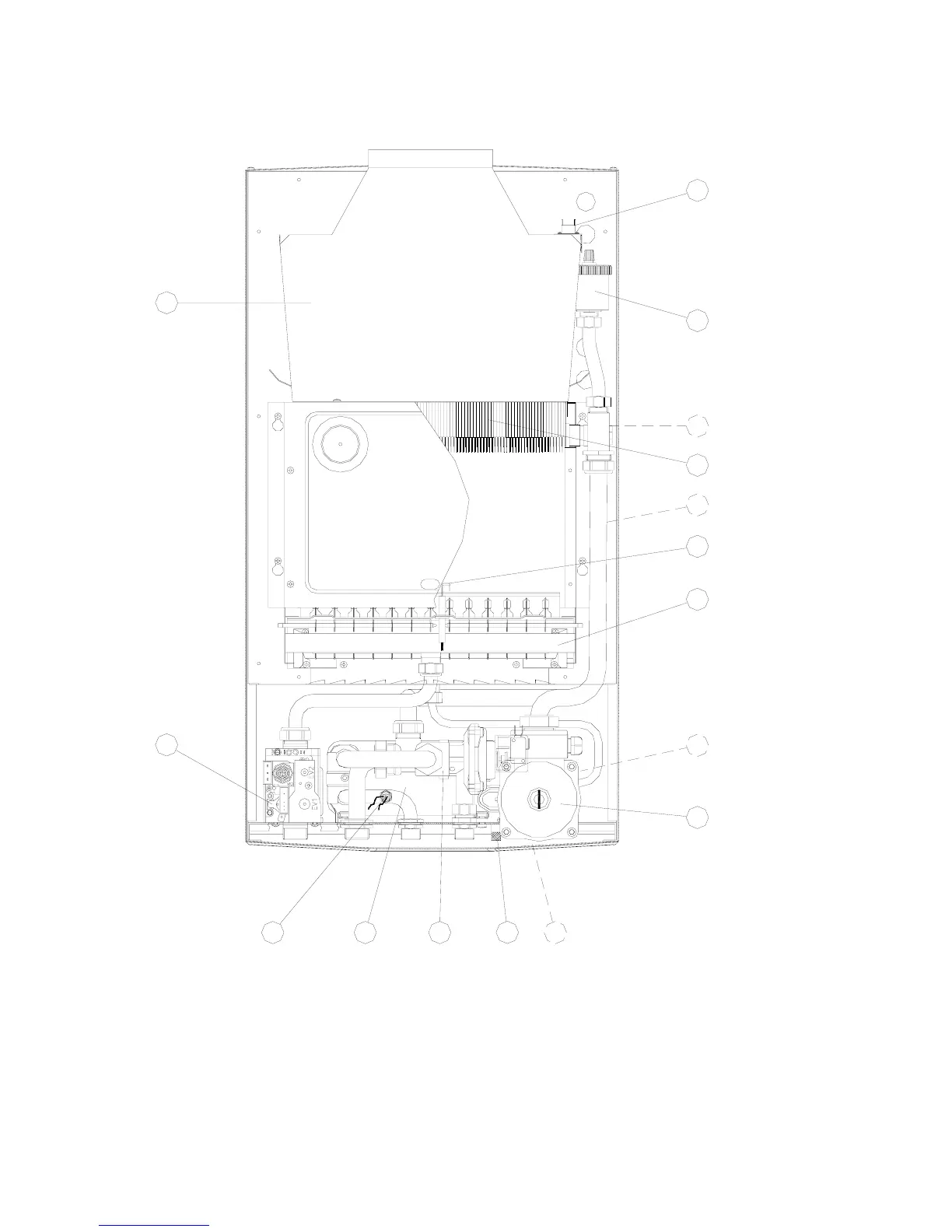

1.4 General layout of the main components of model
PIXEL 25 N
1. Flue gas thermostat
2. Discharge air valve
3. Limit thermostat (105°C)
4. Copper Primary Exchanger
5. Electrode of lighting and survey
6. Burner
7. Circulator
8. Gas valve
9. Safety valve (3 bar)
10. Supply charge valve
11. Supply descharge valve
12. DHW exchanger
13. Supply sensor
14. Hydraulic valve
15. Flue gas cap
16. DHW sensor
5
1
2
3
4
13
6
7
8
9
10
14
15
5
12
11
16
