9
Warning
When feeding the welding wire through the gun, the drive roll, the gun connector block
and the gun contact tip are always energized relative to work and ground.

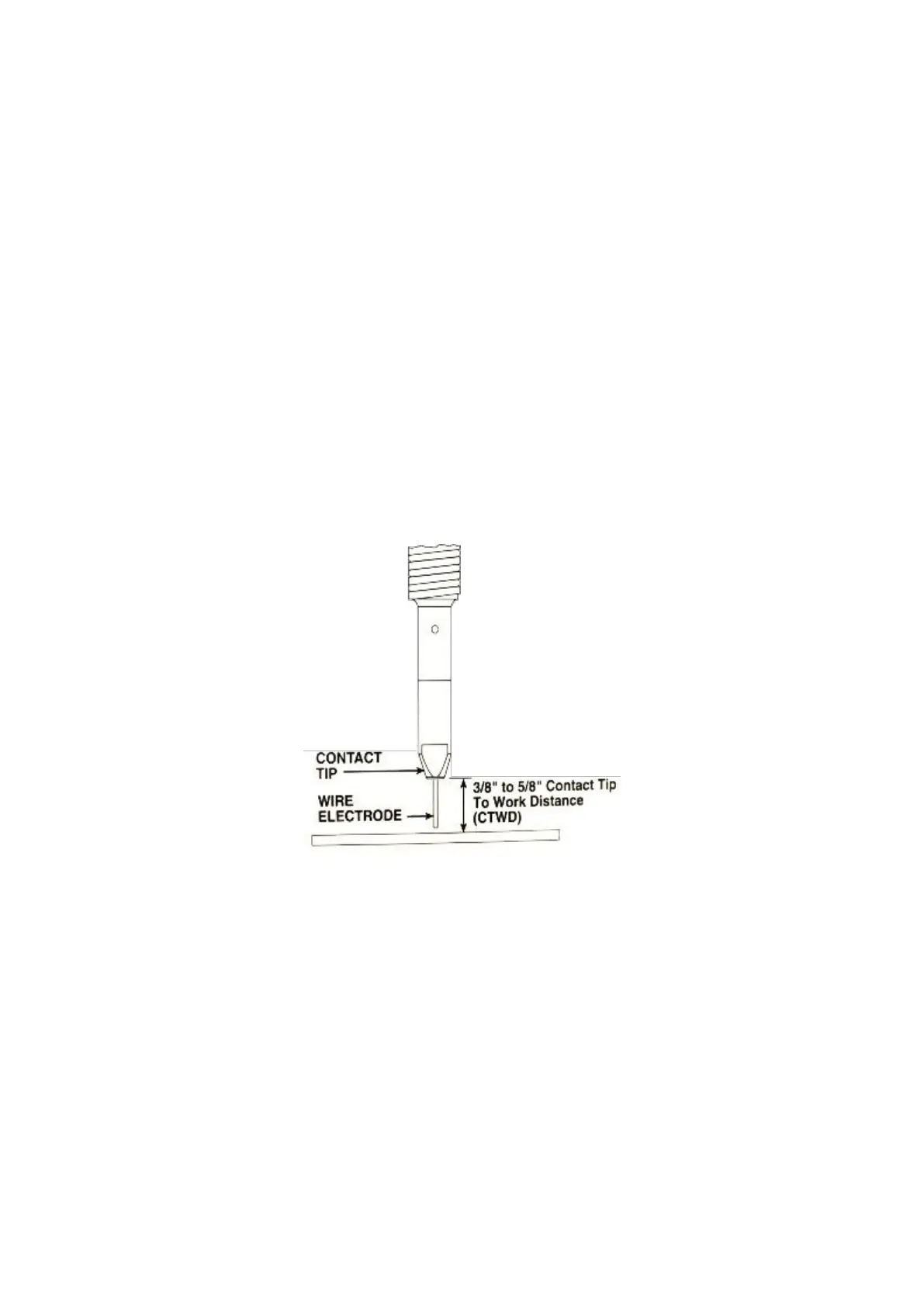

Wire Stick Out
7) Remove the contact tip and nozzle from the gun.
8) Turn the machine ON(“1”).
9) Straighten the gun cable assembly.
10) Depress the gun trigger switch and feed welding wire through the gun and cable. (Point the gun
away from yourself and others while feeding wire). Release the gun trigger after wire appears at the
end of the gun.
11)Turn off the machine.
12) Install the nozzle and contact tip. Refer to Figure 4. Cut the wire off so the 3/8” to 5/8”(10-15mm)
protrudes from the end of the tip.
13) Turn on the machine . The machine is now ready to weld.
