ARCCAPTAIN TIG200 - Installation and Commission

11
4.3 Installation and Commission
4.3.1 Welder operation description for TIG function
A. Connection
1. Please connect TIG torch correctly according
to Pic 7. Connect the gas & electric connector of
the TIG torch to the corresponding connector on
the machine panel, and tighten it clockwise.
2. Connect the aviation plug on the TIG torch to
the corresponding socket on the machine
panel. (See Pic 7.)
3. Connection of TIG torch’s components.
①
Torch trigger
②
Short/Long Back cap
③
Gasket
④
Collet Body
⑤
Collet
⑥
Ceramic nozzle

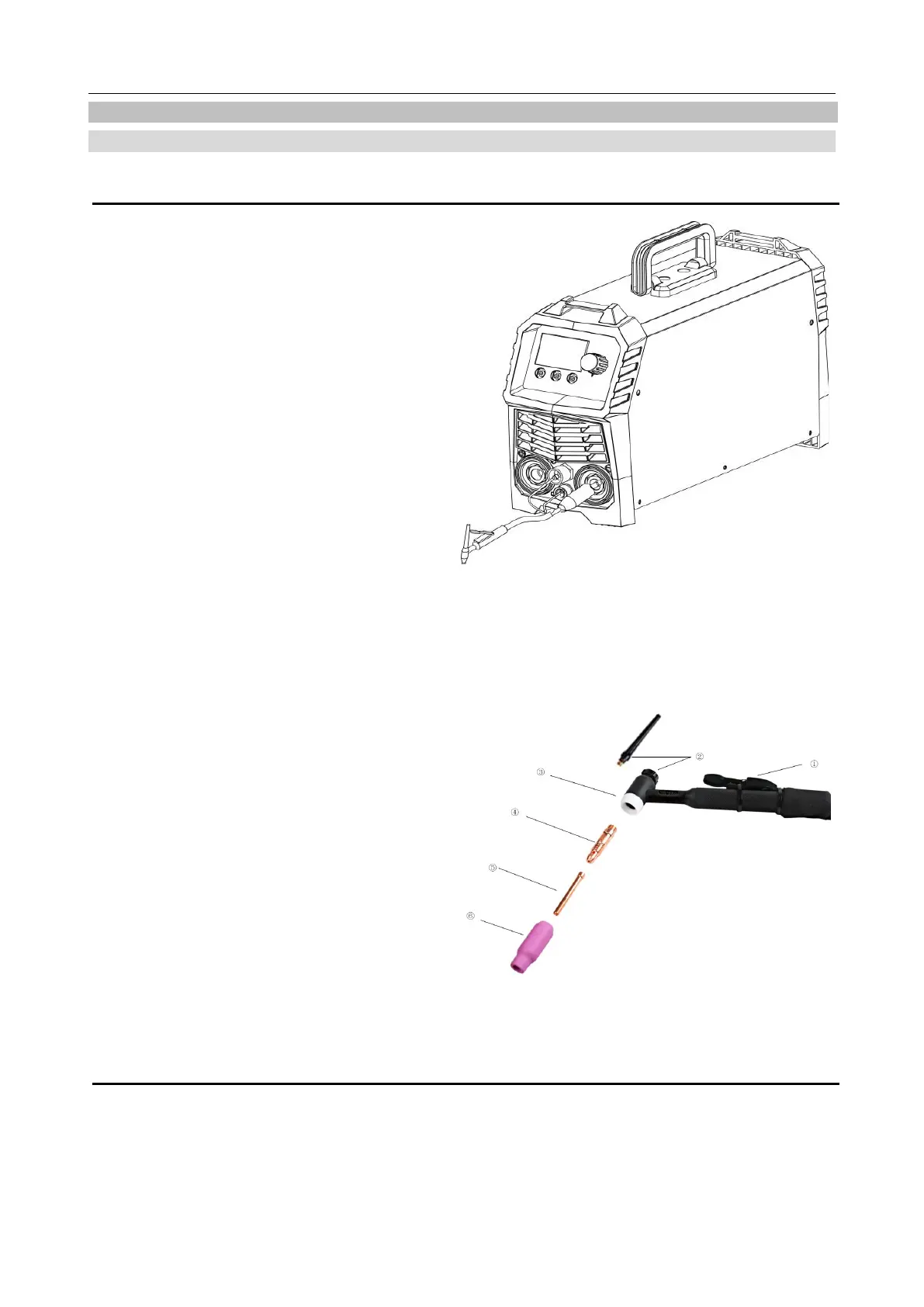

Pic 7 Installation of TIG torch
Pic 8: Connection of TIG torch
